R911321179

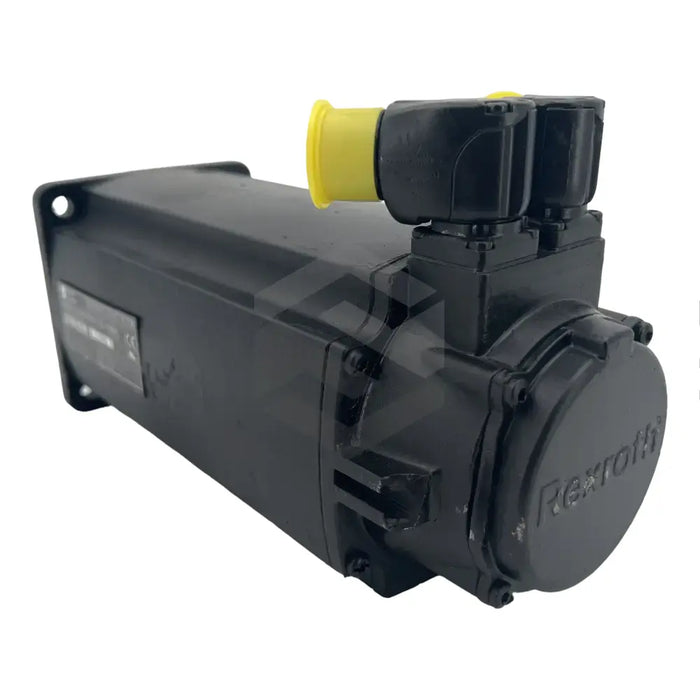

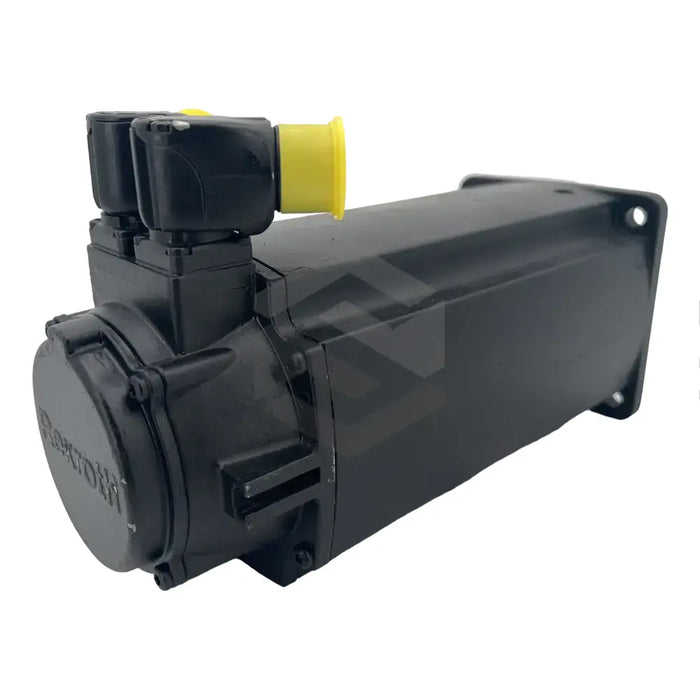

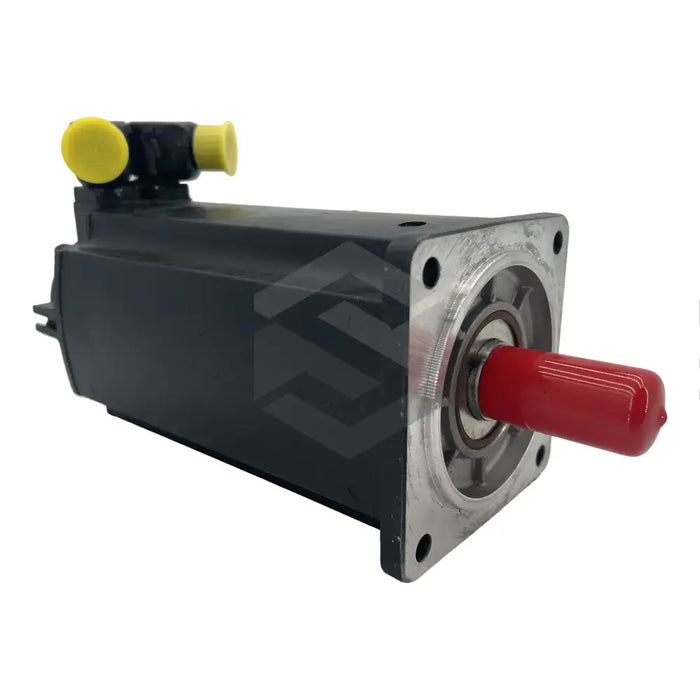

Product R911321179 (MSK060C-0600-NN-M1-UG0-NSNN) by Bosch Rexroth Indramat, a pioneer in the field of drive and motion technology, belongs to the MSK series of servo motors and is optimal for use in robotics, machine tools, food and packaging processing machinery, and metal forming machines. Designed with a frame size of 060 and a frame length designated as C, the R911321179 (MSK060C-0600-NN-M1-UG0-NSNN) is naturally cooled via convection. This model offers an accurate servo motor with an optical multiturn absolute encoder, featuring a Hiperface interface and 128 increments. Its system accuracy lies within ±80 angular seconds and it can record the absolute, as well as indirect motor position, over 4096 mechanical motor rotations.
Moreover, the R911321179 (MSK060C-0600-NN-M1-UG0-NSNN) model comes equipped with a standard plain shaft and shaft sealing ring. Its design enables high resistance to thermal overload owing to its effective heat transfer capabilities. This model can reach maximum speeds of 6000 rpm and can deliver a peak torque of 24.0 Nm. The operational ambient temperature range is from 0oC to 40oC, with the relative air humidity not exceeding 95%. Its solid and liquid protective housing secures an IP 65 rating. The integrated data memory feature stores crucial data such as motor type name, control loop parameters, and motor parameters, enabling fast startup and secure adjustment with the dedicated drive controller.
