R911321180

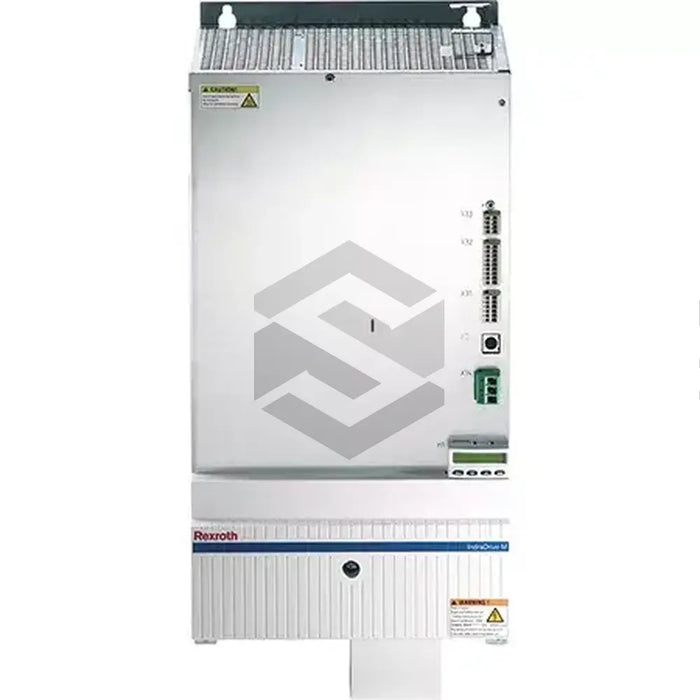

The R911321180 (HMV02.1E-F0075-A-07-NNNN) is a high-quality supply module crafted by Bosch Rexroth Indramat, internationally recognized for their exceptional automation systems. Utilized predominately with their HMS inverters, the R911321180 (HMV02.1E-F0075-A-07-NNNN) module is integral to powering multiple automation systems, functioning as a rectifier that creates a DC bus voltage from the supply voltage.
This module incorporates a brake resistor that helpfully dissipates energy produced from motor deceleration as heat, backing dynamic braking in the system. To ensure thermal regulation, the module also integrates a blower for forced ventilation. With its electromagnetic compatibility aligned with EN standards, the module has a 42000 A short circuit current rating (SCCR). It operates on a three-phase AC supply (380V..480V), delivering an output of 750VDC from a 23 A input current. Measuring 150mm wide, 352mm high, and 205mm deep, this 9.5 kg module accommodates a 20 A output current and features 5 Mohm insulation resistance. Permissible ambient temperature for operation ranges from 0°C to 40°C. When working at continuous current, energy dissipation is 500 W. The R911321180 (HMV02.1E-F0075-A-07-NNNN) also includes an integrated network contactor for safer disengagement of drive paths during maintenance or installations.
![](http://servosupplier.com/cdn/shop/t/3/assets/verified-user-shield-check.svg.med.png?v=160087244090755286241706801379)
30 Day Warranty
Technical Specifications
