R911321401

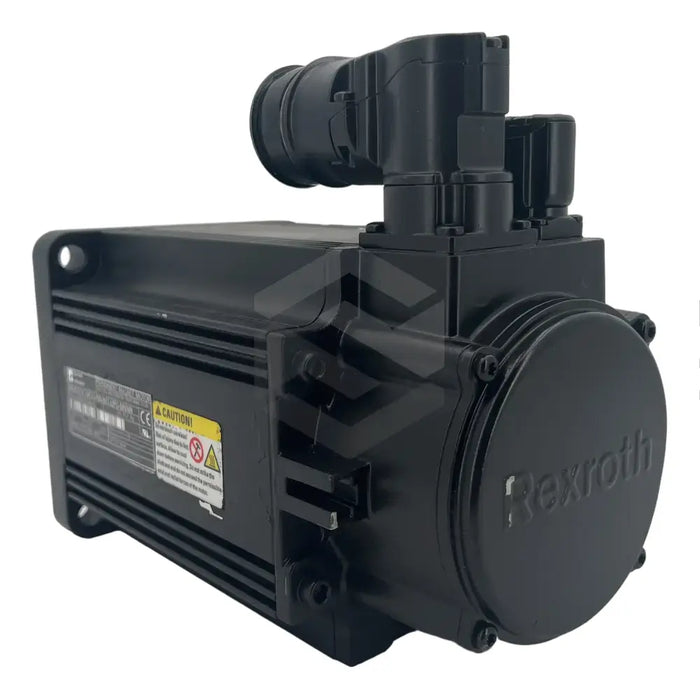

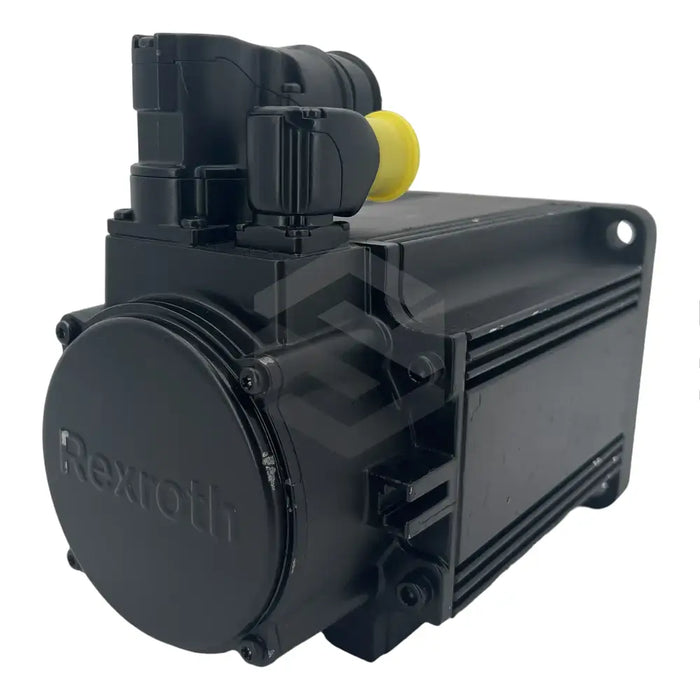

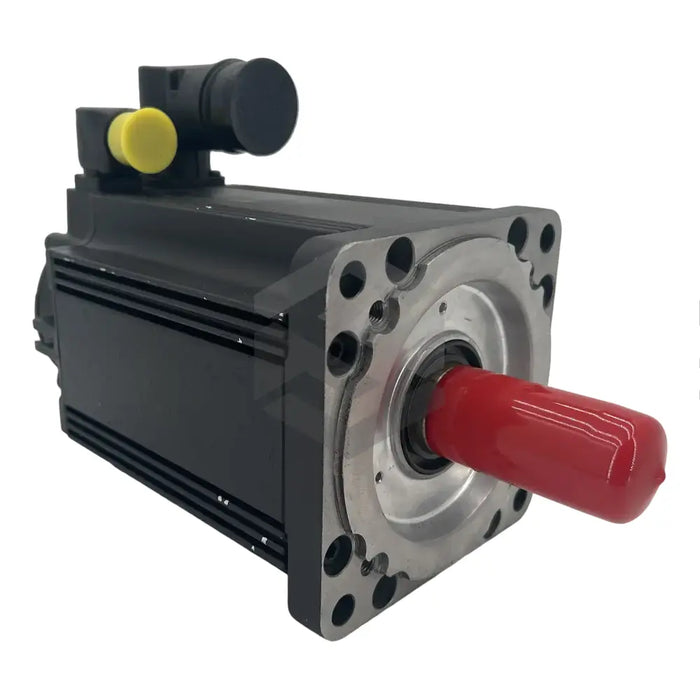

The R911321401 (MSK070C-0150-NN-M2-UP1-RNNN) is a precision-engineered synchronous servomotor developed by Bosch Rexroth Indramat. It is recommended to ensure the unit, its components and mounting location are clean, dry and free from dust or damage prior to assembly. The electrical connection mode should only proceed after confirming a successful mechanical assembly. The motor features a 23Nm holding brake operating on an electrically releasing model. This motor is designed with increased concentricity and runout as per DIN 42955 parameters, and houses a winding code of 0150.
This motor utilizes an optical encoder with 2048 signal periods and standardizes an air humidity range of 5% to 95% during operation, with absolute air humidity fluctuating between 1g/m3 to 291g/m3. It also adjusts for temperature varying at 0.5°C/min, with an integrated temperature sensor in the stator that initiates automatic motor shutdown if the housing temperature exceeds 150°C. Any transport or storage requirements must meet -20°C to 80°C and -20°C to 60°C respectively, as per EN 60721-3-2 guidelines. This servomotor is not recommended for use beyond the manufacturer-stipulated applications and may need supplemental sensors and actuators for superior control and monitoring. The type plate on the device indicates specifications like maximum speed, voltage constant, and temperature class.
