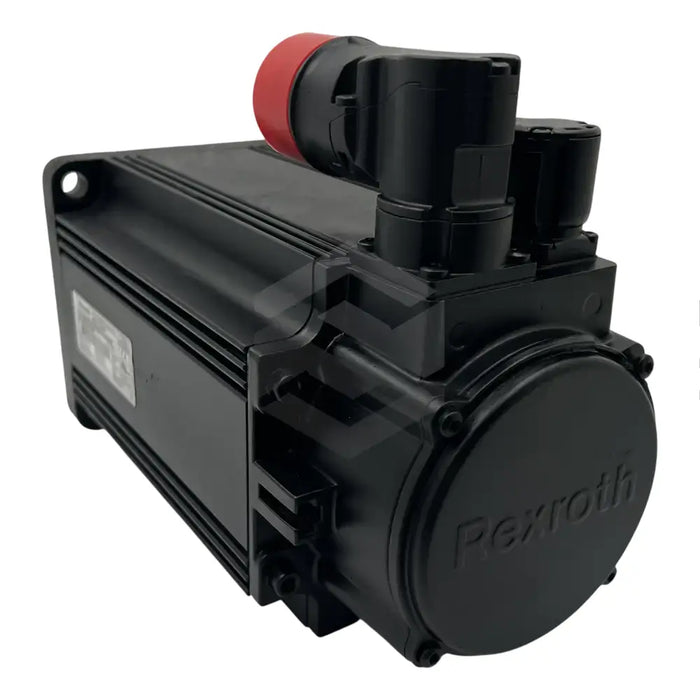

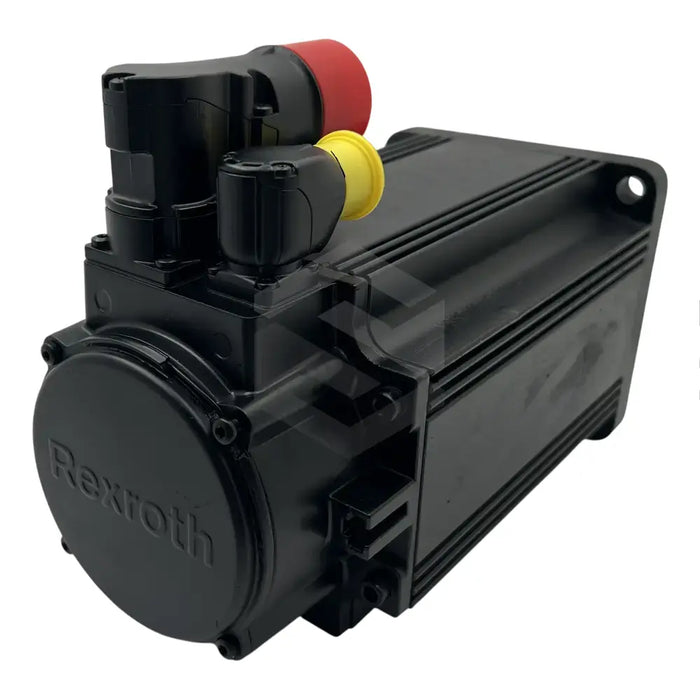

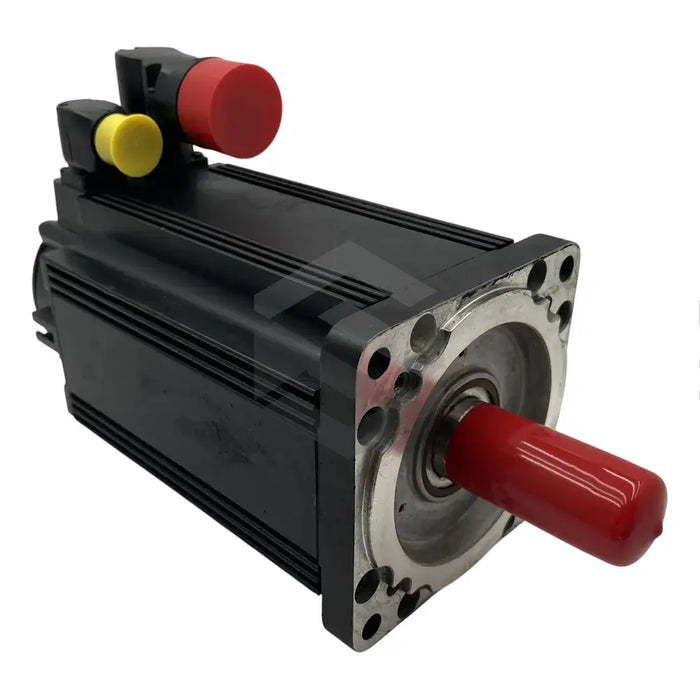

Bosch Rexroth Indramat, a leader in the engineering industry, produces the R911322416 (MSK070D-0300-NN-S2-UG1-RNNN) model. Known for its top-tier synchronous and servo motors, its R911322416 (MSK070D-0300-NN-S2-UG1-RNNN) delivers constant torque of 17.5 Nm when at a standstill temperature of 60 K, while consuming a continuous current of 11 A. This model highlights technical features including a torque constant of 1.75 Nm/A, voltage constant of 107.3 V/1000min-1, and winding resistance of 0.75 ohms at 20 degrees Celsius. Equipped with six polar pairs, it flaunts a thermal time constant of 23 minutes. For optimal performance, only use the model with accessories recommended in its user manual.
This synchronous motor follows specific usage guidelines including operation within a -20 to +80 degrees Celsius range with an ideal usage climate between 0 to +40 degrees Celsius and at altitudes under 1000 meters. Its plain output shaft with a sealing ring ensures that there will be no problems with torque transfers. The model integrates a holding brake with a holding torque of 23 Nm, a moment of inertia of 0.000300 kgm2, and a rated current of 0.79 amps that weighs about 1.6 kg. Spinning at 4900 RPM, this 14kg model operates with a noise level below 75 dB. It utilizes an EnDat2.1 encoder with absolute encoder characteristics. The motor is available for delivery from Servo Supplier.
30 Day Warranty
Technical Specifications
