R911324013

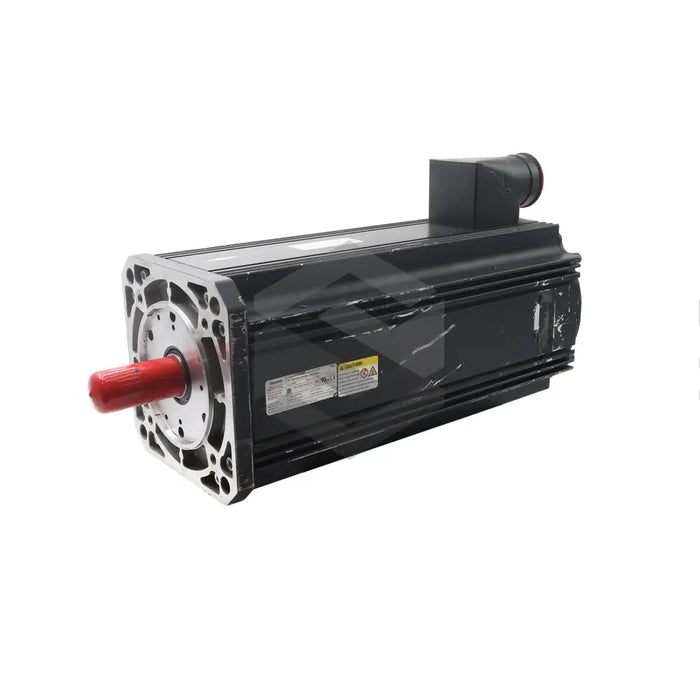

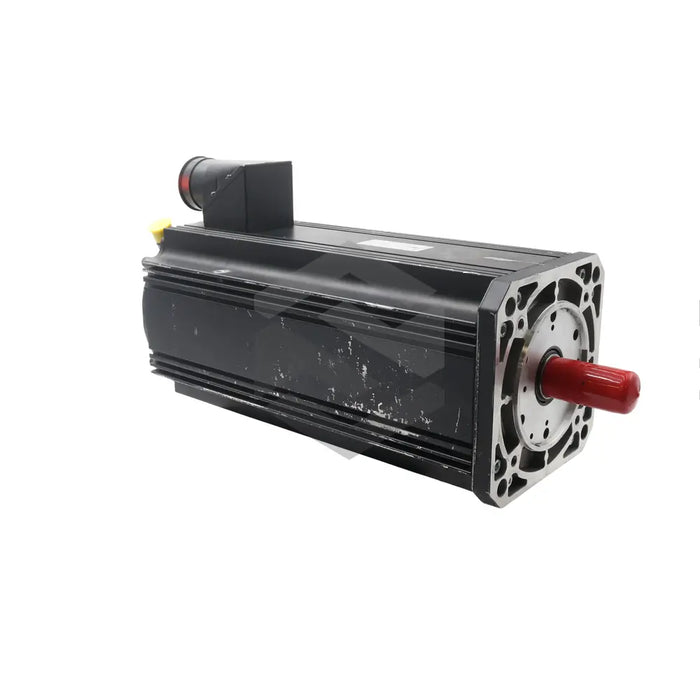

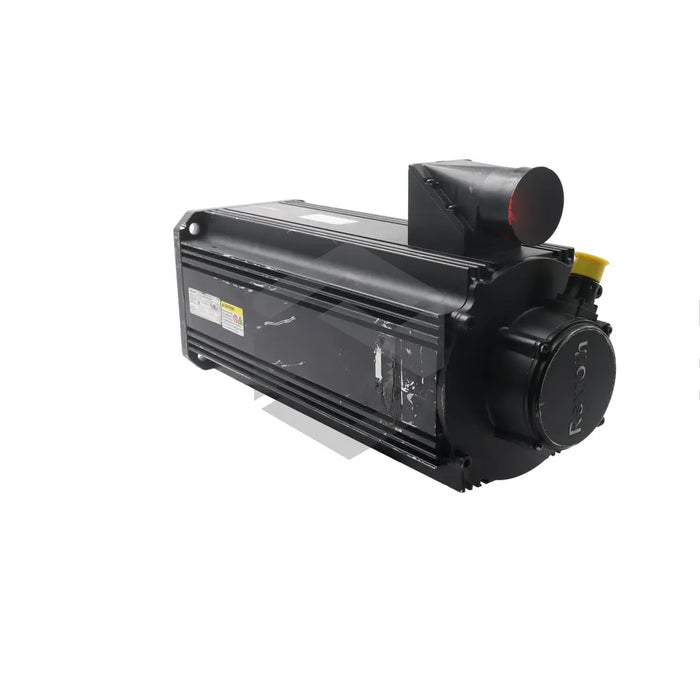

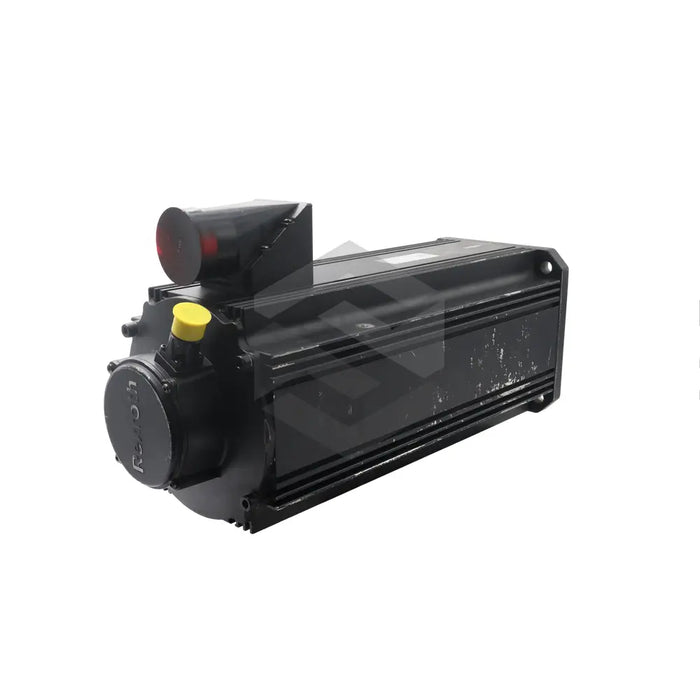

The R911324013 (MSK100D-0200-NN-S1-AP0-NNNN) is a robust servo motor developed by Bosch Rexroth Indramat. With an IP65 rating, the motor's housing is fully sealed, defending against dust and low-pressure water jets. Weighing approximately 56 kilograms and measuring 502 millimeters in length, it offers a maximum speed of 2000 RPM. Noise levels during normal operation remain under 75 dB. Paramount for optimal performance, the ambient operational temperature should remain between 0 and 40 degrees Celsius.
The motor supports cooling via natural convection and surface cooling methods, for which, Bosch provides proprietary IP65-rated radial and axial cooling fans. The motor features a singleturn Hiperface protocol-compatible encoder. The key benefit of singleturn encoders is their ability to give feedback within a single revolution of the shaft. The R911324013 (MSK100D-0200-NN-S1-AP0-NNNN) motor shaft comes with a keyway and a seal but lacks a holding brake, found in optional MSK motors. The motor's standard housing can be replaced based upon the application requirements. The power cable is found on the unit's A-side and the motor's surface is colored black, with an optional extra layer of 40 micrometer varnish for added protection.
