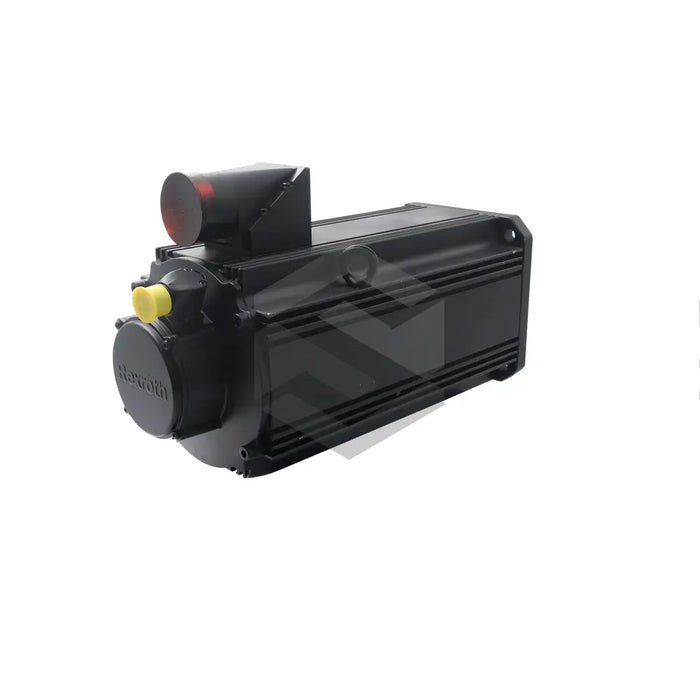

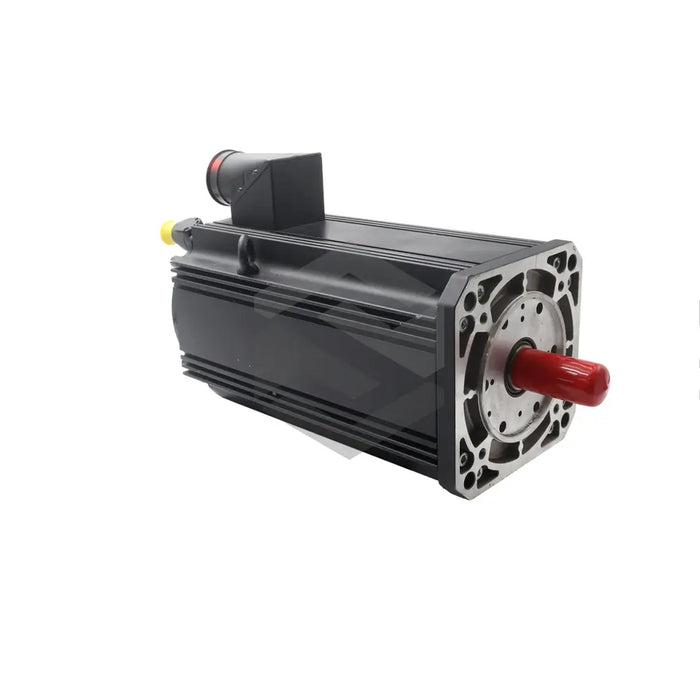

R911324822
The Bosch Rexroth R911324822 (MSK100C-0450-NN-S1-BG2-NNNN), an MSK synchronous servo motor, boasts a size 100 frame, length C, and a winding coded 0450. With natural convection cooling, it produces a steady torque of 38 Nm at standstill and a continuous current of 35.4 Amps; however, with superior heat dissipation provided by surface cooling, torque and current output increase to 57 Nm and 52.9 Amps respectively. Therefore, it is advisable to utilize surface cooling for higher load applications. The R911324822 (MSK100C-0450-NN-S1-BG2-NNNN) motor operates optimally between 0 to 40 degrees Celsius, with output decreasing if ambient temperatures rise or if the altitude exceeds 1000 meters above sea level.
Featuring an IP65 protection class, the R911324822 (MSK100C-0450-NN-S1-BG2-NNNN) motor showcases a sealed housing, shaft, and cabled connectors, which ensures its excellent durability. It is linked to a drive controller through two cables, one for power and another for feedback. The power cable is attached to the B-side electrical connection. The shaft is primarily plain, but a keyway version is available. The motor also integrates a holding brake with a 70 Nm torque rating, which releases the shaft once a 24 Volts DC signal is applied. The device houses a singleturn optical encoder with Hiperface compatibility for precise position sensing.
