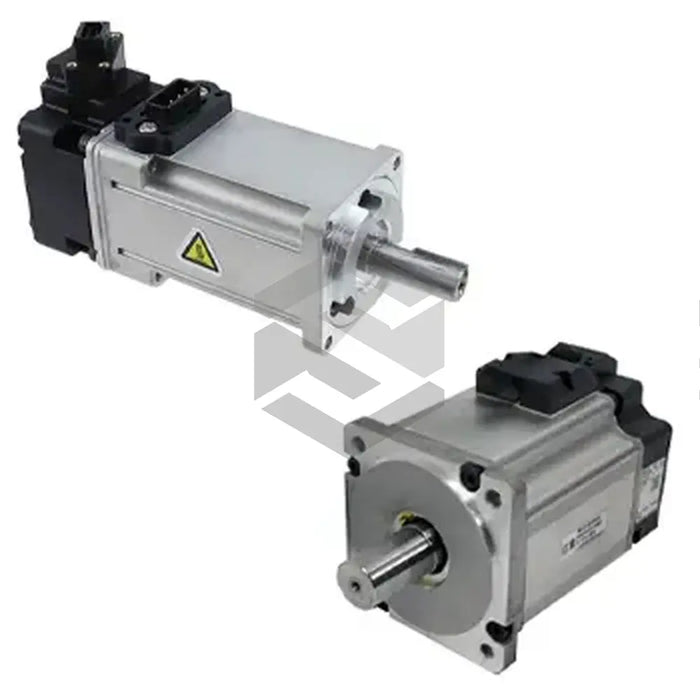

R911325131
The R911325131 (MSM019B-0300-NN-M0-CH0) synchronous servo motor is a high-quality product from the renowned manufacturer, Bosch Rexroth Indramat. Part of their MSM Motor Series, this servo motor stands out with its minimal flange dimensions and high power density, making it useful across different applications. It offers up to 750W of continuous mechanical power and a peak speed of 5000 RPMs, ensuring optimal performance in any environment.
The R911325131 (MSM019B-0300-NN-M0-CH0) model delivers a maximum current of 3.3 amperes and a standstill torque of 0.32 Nm, which can reach up to 0.95 Nm, thereby ensuring rapid acceleration and deceleration. Designed to integrate seamlessly with Indramat drives, it has an accessible connector at the top for 3 110 AC...230 V line input and boasts a multi-turn absolute encoder for precision measurement. An optional holding brake can be accommodated for enhanced functionality. Despite its compact size of 38 mm width, 92 mm length, and 8 mm diameter shaft, the motor's impressive 750W output showcases its durability and power. It weighs just 0.47 kg and the robust, maintenance-free design is echoed in its dust, dirt, and water-resistant IP54 housing.
