R911325140

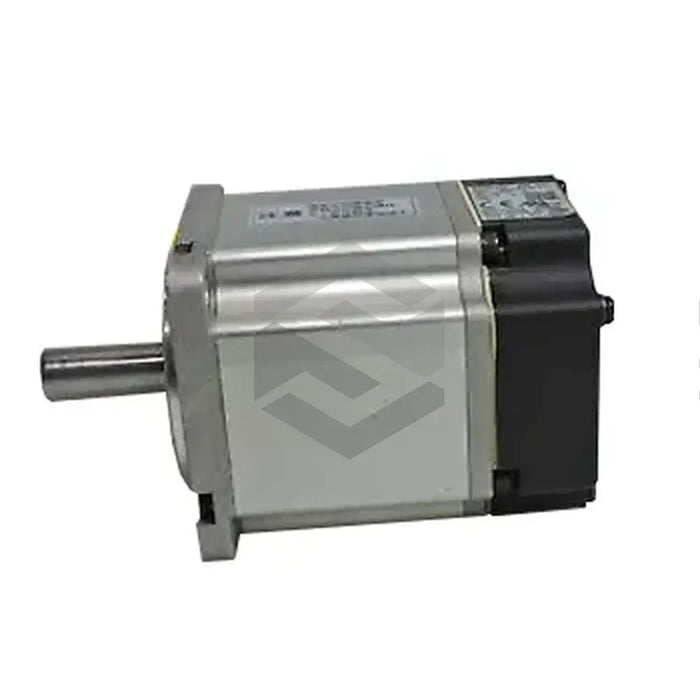

Product R911325140 (MSM031C-0300-NN-M0-CH1), a part of the Indradyn S series, is crafted by leading manufacturer Bosch Rexroth Indramat, with a primary focus on high-performance for servo applications, enabling precise control over speed, torque, and position. Boosted by an electrical release holding brake on its shaft, the motor maintains axis positioning even without power input, delivering a maximum torque of 3.80 Nm along with a top speed of 5000 RPM.
To enhance durability, the R911325140 (MSM031C-0300-NN-M0-CH1) is IP54 protected, safeguarding the electrical enclosure from water sprays and obstructing dust particles, thereby reducing required maintenance. The motor, with a weight of 1.2 kg, tolerates a continuous torque of 1.2 Nm when at rest and delivers a consistent power of 400W, performing at a maximum current of 7.70 A. Leveraging a multi-turn absolute optical encoder, it allows better control over speed, torque, and position, making it an ideal cost-efficient control system solution.
