R911325144

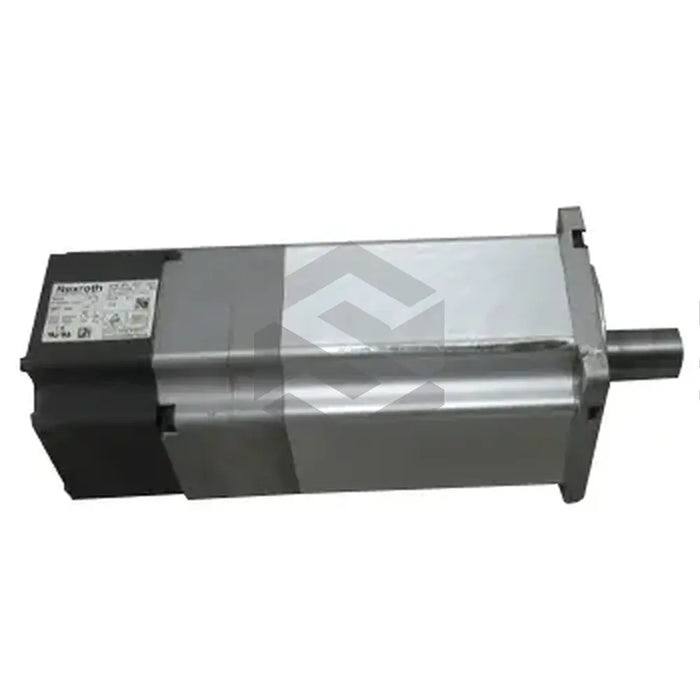

The R911325144 (MSM041B-0300-NN-M0-CH1) is a high performance synchronous motor manufactured by Bosch Rexroth Indramat under the MSM series. Offering a compact design and impressive dynamic response, the motor features a protection degree of IP54, continuous power of 750W, uninterrupted torque of 2.4Nm, and a maximum torque of 7.1Nm. This powerful unit can operate at a maximum speed of up to 4,500 revolutions per minute.
Boasting CSA and UL certification, the R911325144 (MSM041B-0300-NN-M0-CH1) is specifically designed for NFPA 79 applications. This product comes with the flexibility of three mounting positions (IM B5, IM V1, and IM V3), with sufficient space needed between the motor and the mounting surface to ensure optimal air circulation. Key features of the R911325144 (MSM041B-0300-NN-M0-CH1) include a size construction of 041, a MSM041 winding type, and a cooling mode of natural convection. The motor is equipped with optical and multiturn absolute encoders, a cable tail electrical connection, and a plain shaft devoid of a shaft sealing ring with an electrical release 2.45Nm holding brake. The R911325144 (MSM041B-0300-NN-M0-CH1) weighs 3.1kg, has a maximum installation elevation of 1,000 meters, and the power wire cross section measures 0.75mm2.
