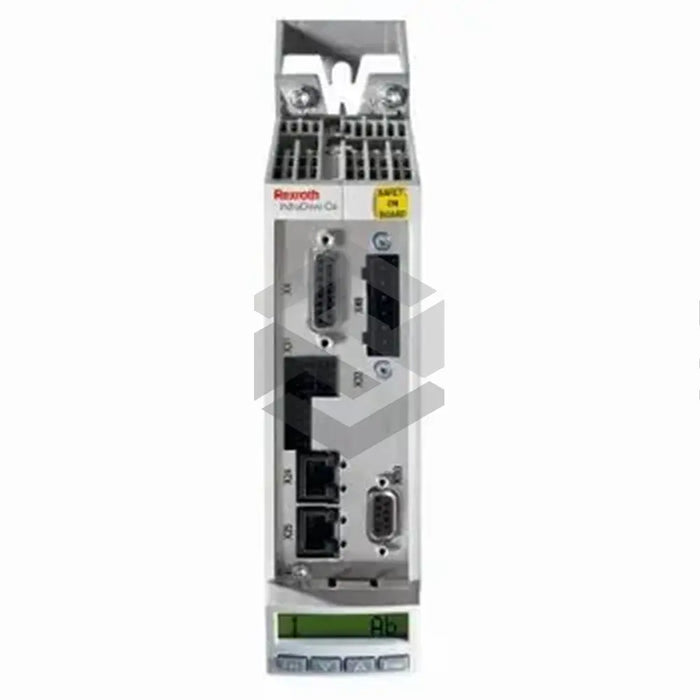

R911325245
The R911325245 (HCS01.1E-W0013-A-02-B-ET-EC-NN-NN-NN-FW) is a state-of-the-art drive controller designed and manufactured by Bosch Rexroth Indramat. Primarily intended for use within a control cabinet, this tool boasts a G1 mounting position feature. For optimal performance, the R911325245 (HCS01.1E-W0013-A-02-B-ET-EC-NN-NN-NN-FW) operates best in temperatures between 0°C and 40°C. Users are advised to prevent conductive dirt contamination and ensure clean air within the control cabinet to avoid potential damage. To maintain safety standards, the controller must be installed with a protective fuse to mitigate fire risks and comply with EMC regulations. Shielding of both analog and digital signal lines is required.
Never modify the controller's original hardware as failure to comply may risk electric shock. Always disconnect the device from the power supply before servicing components rated above 50V. An external housing guarantees protection against foreign object infiltration, while grounding is facilitated via an external conductor with a cross-section smaller than 8AWG. Mind the device isn't designed for industrial environments. Despite the unit's firmware being available separately, users are entitled to one year of backup support. Remember to maintain a clearance distance of at least 90mm at the top and bottom inside the control cabinet. For completion, an external branch circuit protection must be implemented to shield against overcurrent.
