R911325554

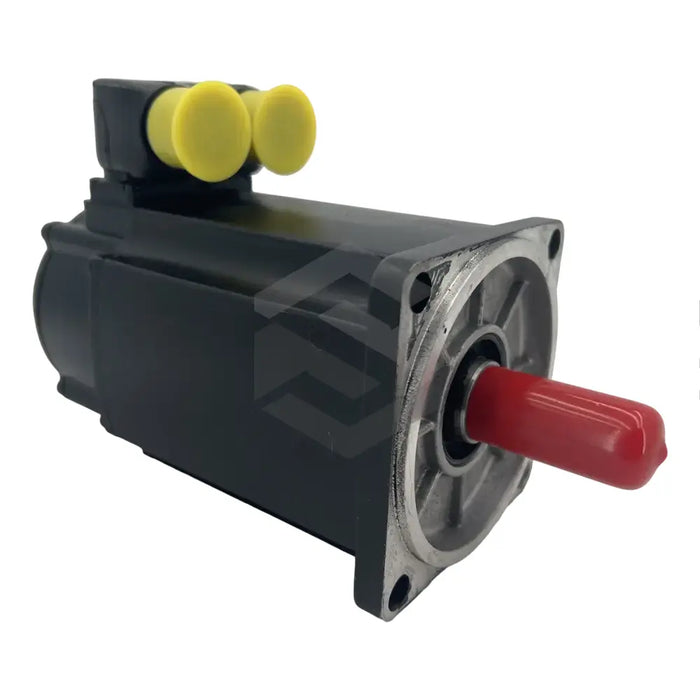

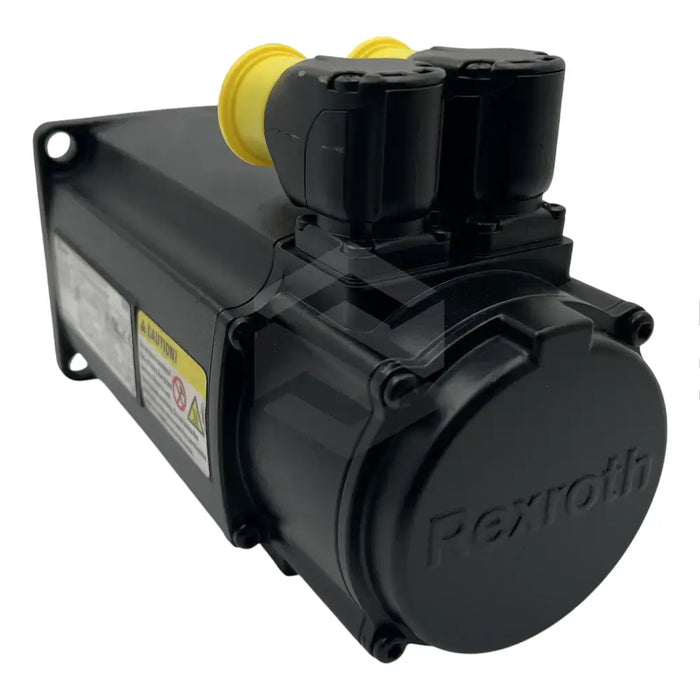

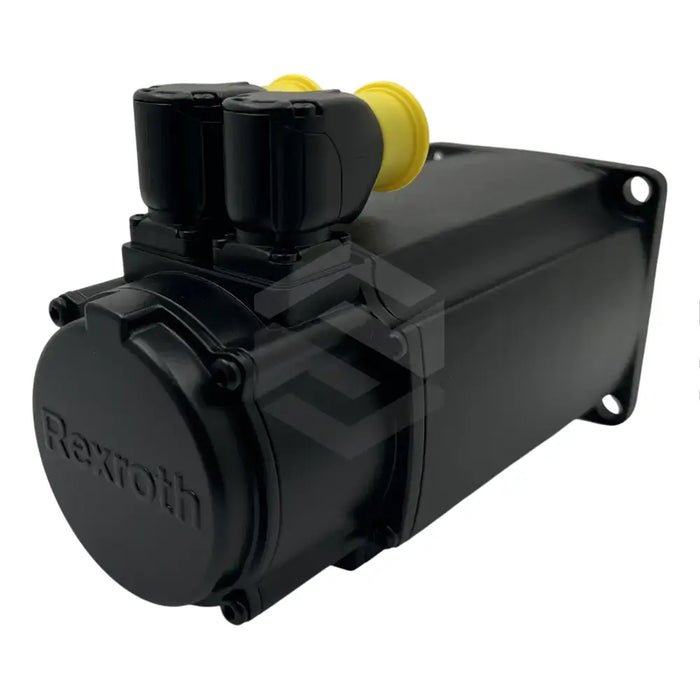

The R911325554 (MSK050B-0450-NN-M1-UG1-NNNN) is a product of Bosch Rexroth Indramat, part of the IndraDyn S product series. This electric motor, belonging to the MSK series, boasts a diverse range of applications due to its compact and lightweight design and high torque intensity. A key feature is its multi-turn encoder system that ensures high-precision performance. The motor's unique encoder registers one revolution and delivers an output signal of 1Vss.
This servo motor, weighing around 4 kilograms, offers a maximum rotational speed of 6000 min-1 and a standstill torque of 3 Nm, drawing 2.8 A in standstill mode. It runs on a maximum nominal operating current of 11.2 A. It comprises a smooth rotating shaft along with an integrated brake system that provides a holding torque of 6 Nm. The motor is designed to deliver 9 Nm operating torque. The R911325554 (MSK050B-0450-NN-M1-UG1-NNNN) requires dust-and-oil-free air for operation and, in damp surroundings, needs a 0.1 bar working pressure. Equipped with RLS1100 and RGS1000 connectors for power and encoder respectively, the motor features IP 67 protection. The optimal operating ambient temperature is 40 degrees Celsius, and its installation is suitable up to an altitude of 1000 meters.
