R911326109

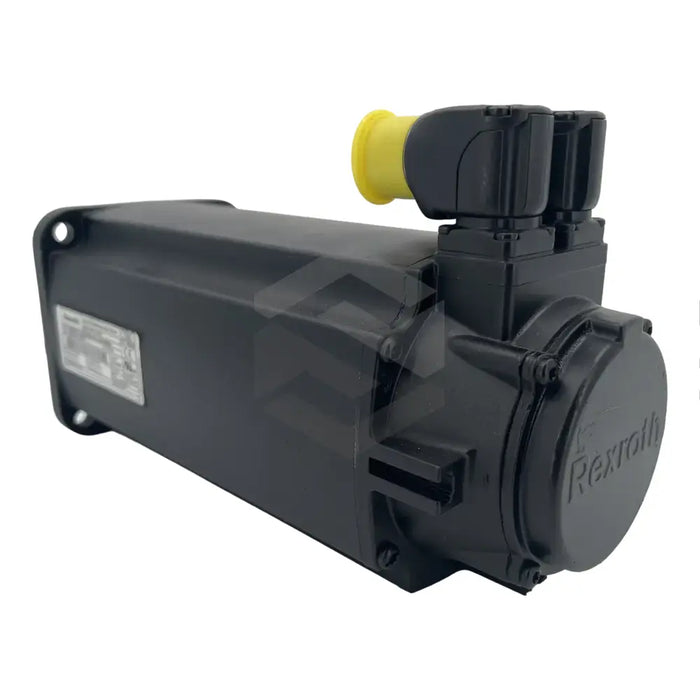

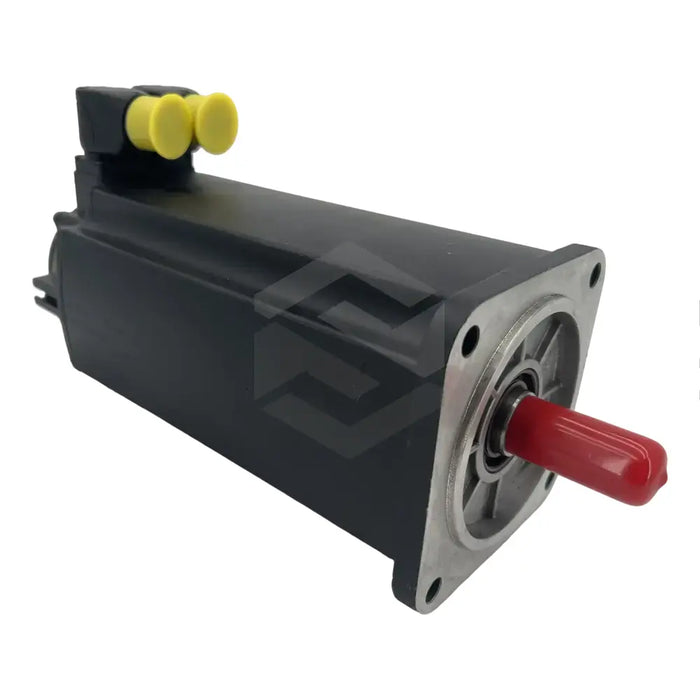

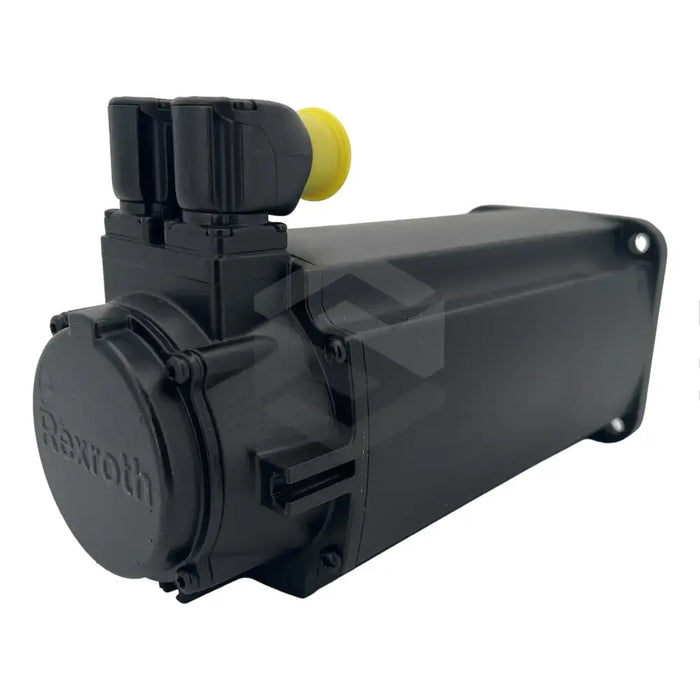

Bosch Rexroth Indramat's R911326109 (MSK061C-0200-NN-M1-UG0-NNNN) is a high-quality servo motor offering detailed operational data via an integrated encoder. This motor is fitted with an optical multiturn encoder, capable of providing 128 signal periods. This encoder monitors speed, position, and torque, transmitting its feedback to a drive controller through a feedback cable. The R911326109 (MSK061C-0200-NN-M1-UG0-NNNN) motor features a smooth main shaft outfitted with a sealing ring that safeguards the motor bearings from environmental contaminants such as dust and moisture. The motor connectors can be easily rotated up to 240 degrees in either direction. Uniquely, this model doesn't include a holding brake and it uses natural convection as its cooling method.
The R911326109 (MSK061C-0200-NN-M1-UG0-NNNN) offers impressive performance specifications for various operating conditions, specifically at 60K and 100K overtemperatures. The continuous current at standstill is 3.2 Amps for 60K and 4.8 Amps for 100K while the continuous torque is 8 Nm and 9 Nm respectively. The servo motor boasts a peak torque of 32 Nm and a maximum speed of 3100 RPM. Its moment of motor rotor inertia is 0.00075 kg m2 and its peak current is 14.4 Amps. Despite its power, the operating sound pressure level is below or equal to 75 dB. The motor's weight is approximately 8.3 kg and it carries an IP65 protection rating, allowing installation near operating machinery. Handling of the R911326109 (MSK061C-0200-NN-M1-UG0-NNNN) and related equipment should only be done by qualified personnel.
