R911326231

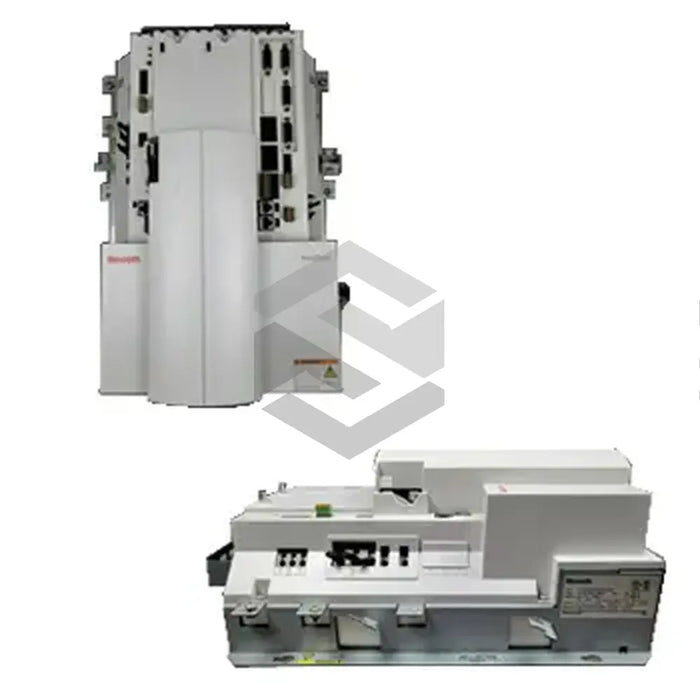

The R911326231 (HCT02.1E-W0020-A-03-B-L8-2N-NN-NN-NN-FW), a renowned drive controller from the HCT02 series by Bosch Rexroth Indramat, supports the operation of one primary axis along with two secondary three-phase AC asynchronous or synchronous motors. It's UL-recognized and includes an IP 20 protection classification. The controller must be vertically installed in a control cabinet adhering to specific environmental conditions such as an operating temperature of 0 to 40 degrees, non-condensing relative humidity up to 95%, and an installation height up to 1000 meters.
The R911326231 (HCT02.1E-W0020-A-03-B-L8-2N-NN-NN-NN-FW) is equipped with a 42000A rms short circuit current rating, and utilizes a 3 x AC 200-500 rated input voltage. It consumes 44.0A rated input current and delivers an output voltage of 3 x AC 0-500V. With a 20kW rated power supply and an embedded PC, LX 800 master communication, this device offers consistent performance. Please note that the firmware for this drive controller is sold separately as an accessory. The controller is fitted with LED displays that indicate the operational status of the drive, controller unit, and Ethernet. It possesses 16 digital outputs, 32 digital inputs, 4 probes, and a relay contact. It utilizes a forced-ventilated cooling technique common to the HCT02 series. For optimal performance, it's suggested to operate the drive controller for a minimum of an hour if stored for more than a year.
