R911326400

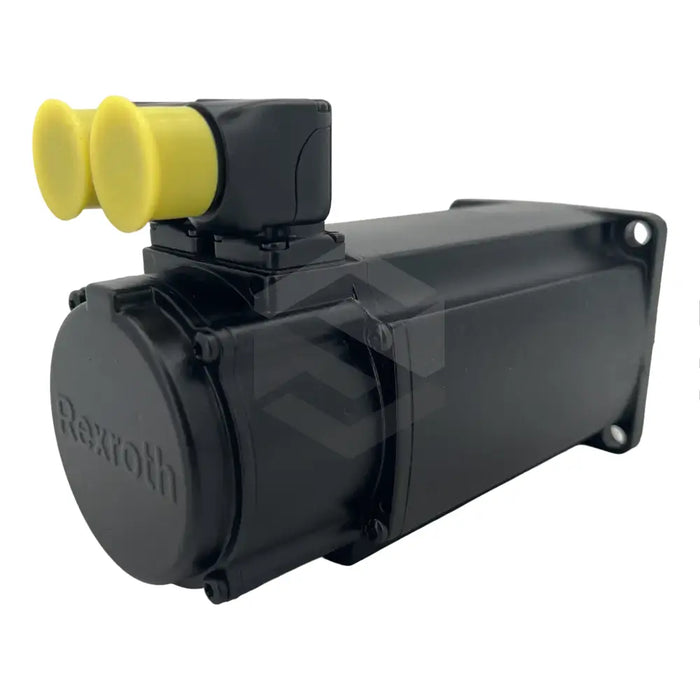

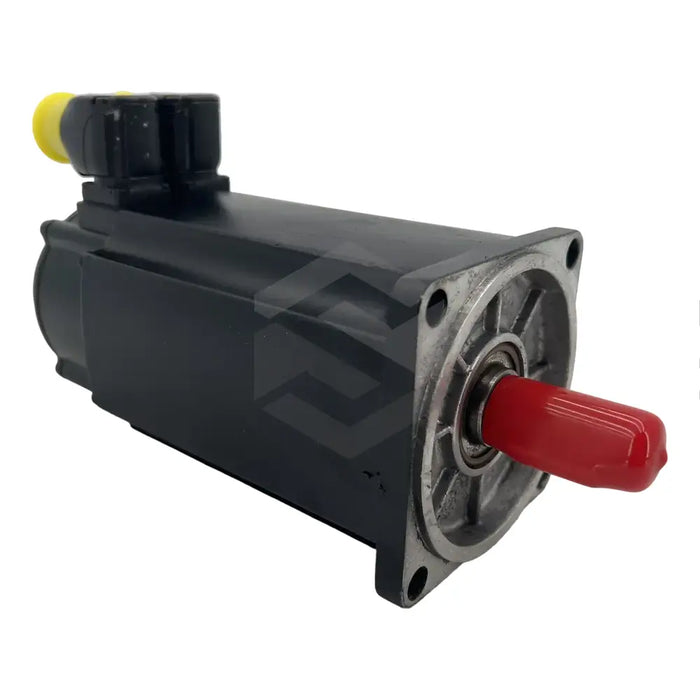

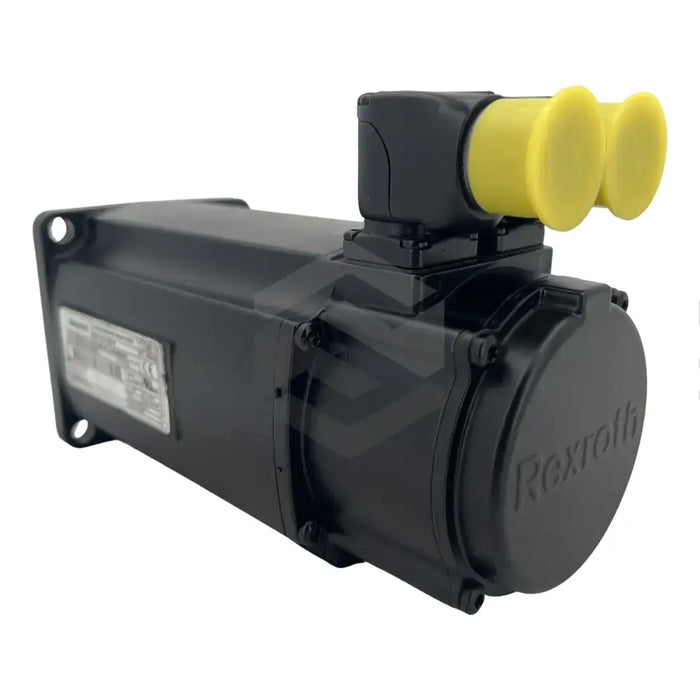

The R911326400 (MSK050C-0600-NN-M1-UP0-NSNN), manufactured by Bosch Rexroth Indramat, is an IndraDyn S MSK synchronous motor designed for primary and servo drive motor operations in machine tools, metal forming machines, robotics, and the food processing and packaging industries. It is essential for installation and maintenance to be performed by experienced personnel to ensure safety and adherence to regulations. Pre-startup, programming of the connected drive controller is required to align the motor's functions with the specific application.
This synchronous motor maintains a consistent torque range of 5-5.5 Nm at a standstill 60k-100k and can produce a maximum torque of 15 Nm. The continuous current ranges from 6.2 to 6.8 Amps in variable standstill of 60-100k with a maximum current of 24.8 Amps. The motor has a maximum velocity of 6000 per minute, 4 pole pairs, and a natural convection cooling type. It is also equipped with a rotating power and encoder connector system, an optical encoder featuring Multiturn absolute hiperface with 128 signal periods. The R911326400 (MSK050C-0600-NN-M1-UP0-NSNN) comes with a keyway shaft, omits a holding brake, and features explosion protection design as per DIN EN 60079 et seqq. Furthermore, the motor, rated as IP65 per EN60034-5 for its dust and water-resistant quality, has a built-in temperature sensor operating within a range of 0 to 40 degrees Celsius.
