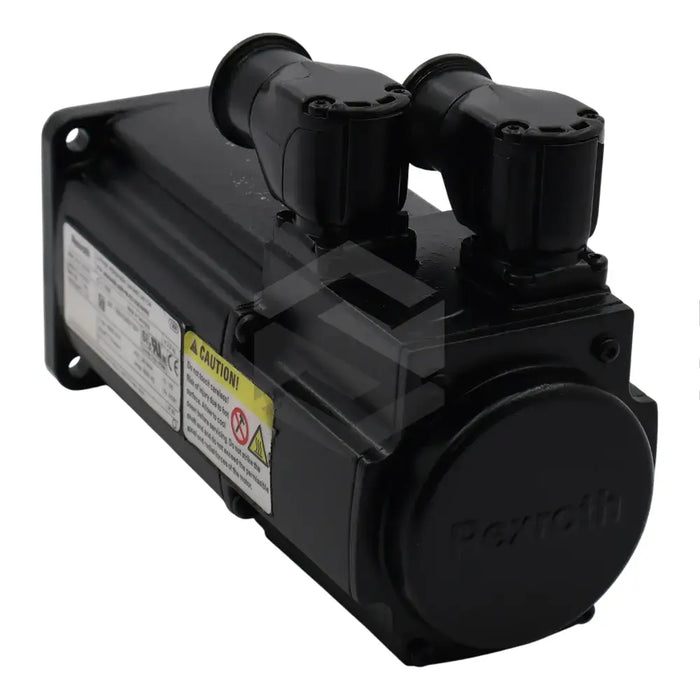

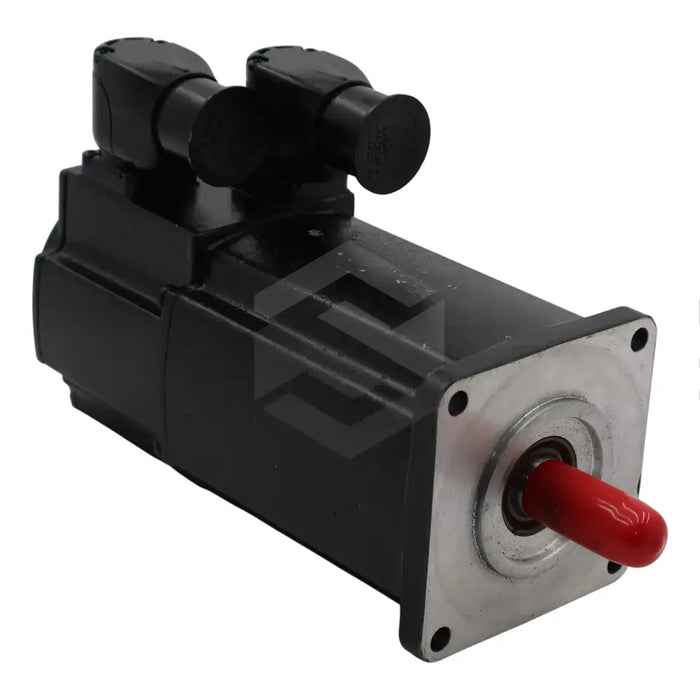

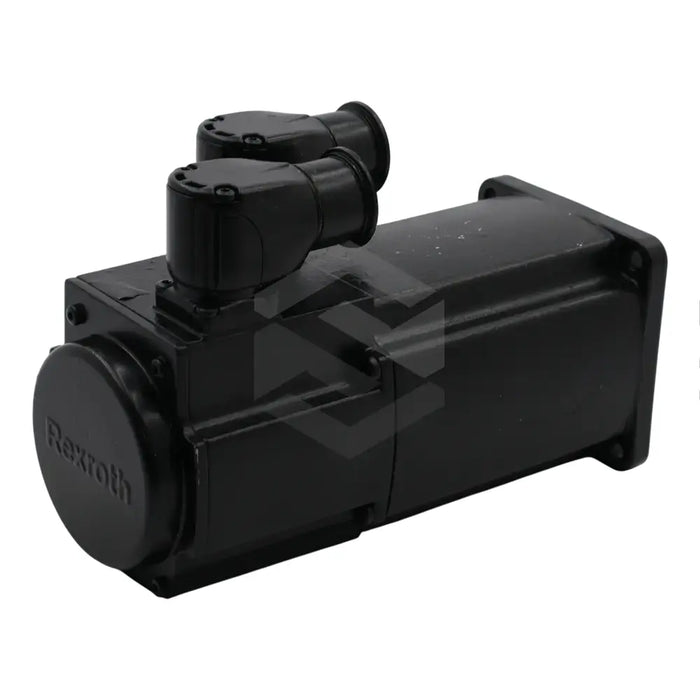

R911326575
The R911326575 (MSK040B-0600-NN-M2-UG1-NNNN) model, a product of Bosch Rexroth Indramat, is a part of the MSK series and exemplifies the company's commitment to providing cutting-edge automation solutions. Known for its functionality under harsh environmental conditions, this product features an IP65 protection standard offering resistance against dust and low-pressure water jets. The servo motor, with an insulation class of 155, registers an approximate weight of 2.8 kg, excluding the weight of the mounting kit and supplementary components. It operates effectively under a temperature envelope of 0°C and +40°C at an elevation not exceeding 1000m/sea level. With 4 pole pairs that allow a winding resistance of 8.40 Ohms, the motor requires an input voltage between 400 V to 480V, and consumes 8.0A of current to generate a peak torque of 5.1 Nm.
In addition, the R911326575 (MSK040B-0600-NN-M2-UG1-NNNN) model incorporates an optical encoder with multiturn absolute Endat 2.1 that measures the indirect absolute position of the output shaft. A standout feature is its electrically-released holding brake, which generates 4Nm of torque while functioning at a rated voltage of 24VDC and rated current requirement of 0.50A. An impressive maximum speed of 7500rpm is achievable, demonstrating the motor's power while ensuring maximum efficacy under varied operating conditions.
