R911327325

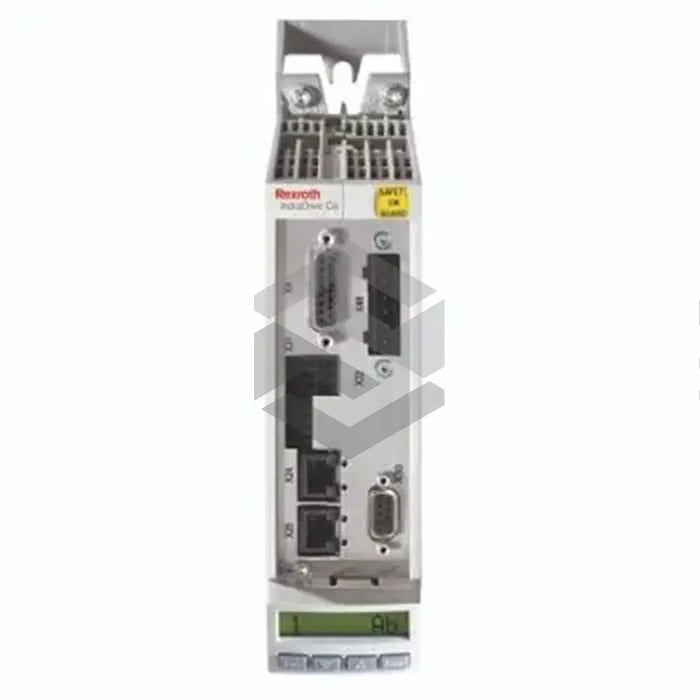

The Bosch Rexroth Indramat R911327325 (HCS01.1E-W0018-A-03-B-ET-EC-PB-NN-NN-FW) is an industrial drive controller crafted for precise industrial operations. As an integral part of the three-phase AC systems, this controller regulates an output of up to 18 Amps. The input voltage spans between 200-500 Volts AC. The product is safely placed inside an IP20 rated casing designed specifically for vertical mounting. With a measurement of 268mm x 70mm x 196mm and weighing 2.1 kg, it is compact and lightweight. It possesses an excellent insulation resistance at 500 Volts DC of 10 megaohms and a capacitance against the housing of 2 x 100 nanofarads. The ideal operating temperature for the product falls between 0 to 40 degrees Celsius for rated data and up to 55 degrees Celsius for reduced data. It is specially designed for forced air cooling to ensure optimal performance.
The R911327325 (HCS01.1E-W0018-A-03-B-ET-EC-PB-NN-NN-FW) details a basic control section with an integrated Multi-Ethernet communication interface backed by a multi-encoder interface and a Profibus module. The product recommends a minimum spacing of 90mm vertically with zero horizontal spacing required. For optimum performance, the controller should be mounted at its back, though it can also be installed on the right or left side in constrained circumstances. Operational responsibility should solely be given to trained personnel. A prerequisite before operating this controller is the connection of a standard control panel featuring a display and keypad. Lastly, the mandatory firmware that is integral for operation needs to be ordered separately.
