R911328174

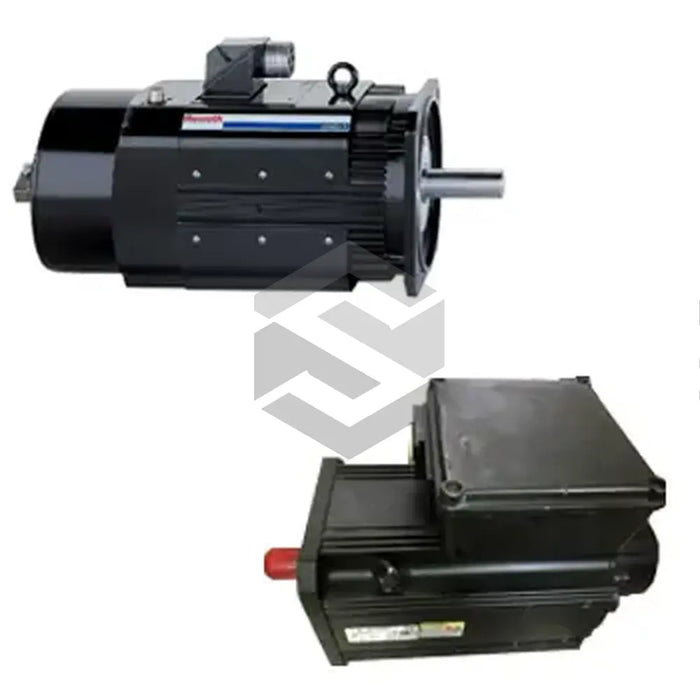

The R911328174 (MAD160C-0200-SA-S2-AH0-35-H1) is a 3-phase induction motor engineered by the highly reputable Bosch Rexroth Indramat. This sophisticated motor is primarily composed of a rotor and a stator, both intricately crafted with innovative technology. The stator showcases slots, forming a 3-phase winding circuit, that can be connected to an AC 3-phase power source. Further, its winding is designed to produce a single, rotating magnetic field when powered. The rotor, on the other hand, houses a laminated cylindrical core with parallel slots furnished with heavy copper or aluminum bar conductors. These conductors are conveniently short-circuited by end rings. Notably, the slots are skewed to minimize noise and prevent potential motor stalling.
Additionally, the R911328174 (MAD160C-0200-SA-S2-AH0-35-H1) motor's stator boasts of an overlapping winding offset, set at a 120-degree angle. Its unique arrangement facilitates a rotating magnetic field once the motor is connected to an AC source. Upon delivery of the R911328174 (MAD160C-0200-SA-S2-AH0-35-H1), you will find the connection threads shielded with protective stoppers. These can be carefully removed before hooking up the coolant lines, ensuring no debris enters the system. Remember to check the manufacturer's guide for the approved torque for different connections; the incorrect torque can disrupt threaded joint functions, compromising system performance.
