R911329171

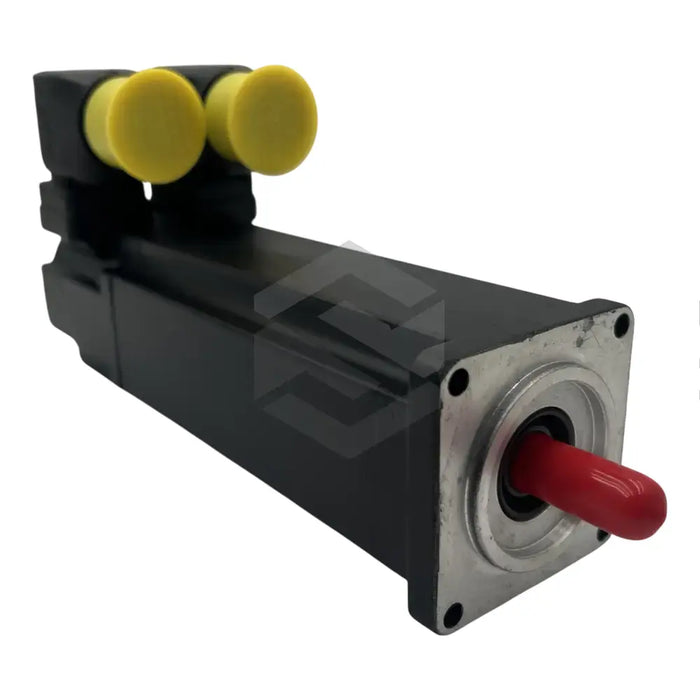

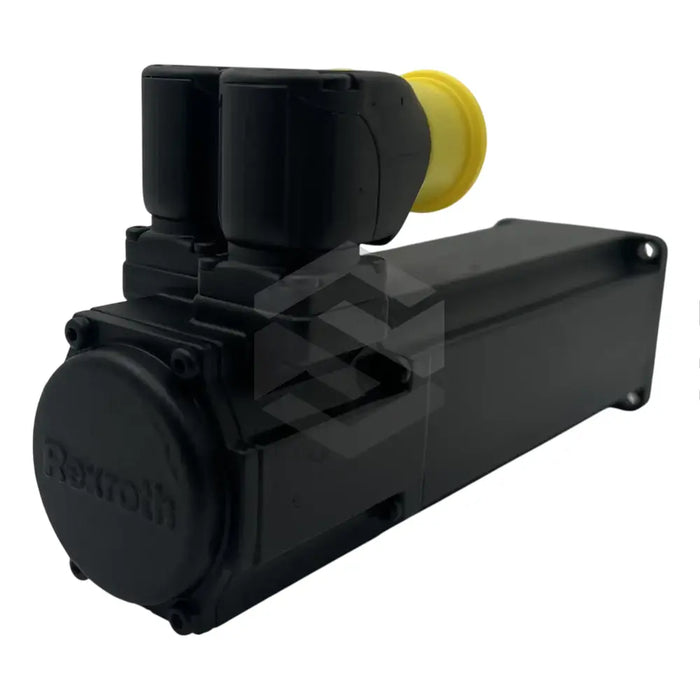

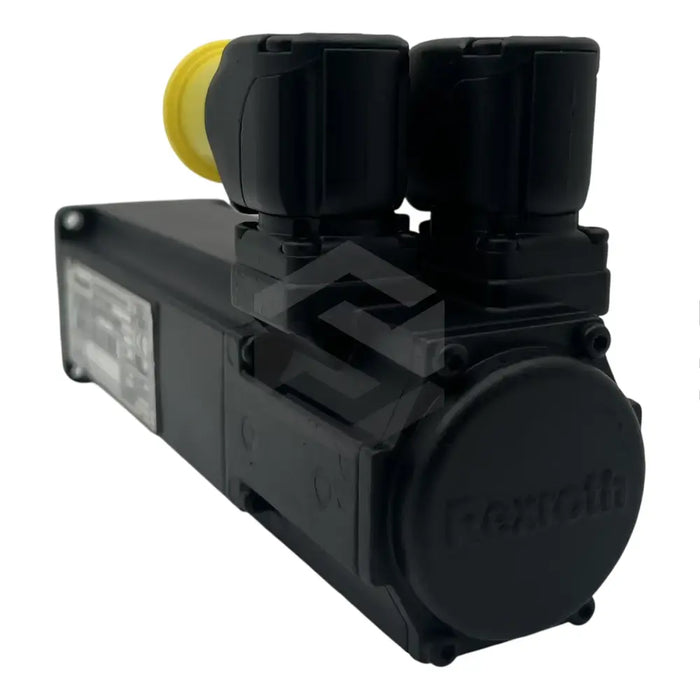

The R911329171 (MSK030C-0900-NN-S1-UP1-NSNN) is a superior synchronous motor designed by Bosch Rexroth Indramat, hailing from the adaptable and scalable MSK Synchronous Motors range. It features a size of "30" and a length of "C," delivering high-performance drive systems when paired with IndraDrive control units. It operates with a winding code of 0900, employing natural convection cooling. The motor also includes an optical encoder with Singleturn Hiperface and 128 increments. The R911329171 (MSK030C-0900-NN-S1-UP1-NSNN) meets Equipment Category 3, G and D specifications and is therefore explosion-proof.
Engineered for cost efficiency and consistent quality, this motor from the trusted MSK range showcases world-class industry standards. The R911329171 (MSK030C-0900-NN-S1-UP1-NSNN) uses a pluggable electric connection, rotatable by up to 240 degrees, and a DIN 6885-1 compliant shaft with a keyway and sealing ring. Notably, it features an electrically released holding brake rated at 1Nm. This motor offers fast, cost-effective, and maintenance-free operation. Its high braking capacity and standard shaft runout make it ideal for high-speed and heavy-duty applications. Boasting a maximum speed of 9,000 rpm, a peak torque of 1.8 Nm, and a maximum current of 6.8 A, the R911329171 (MSK030C-0900-NN-S1-UP1-NSNN) is equipped with safety features for diverse applications.
