R911329222

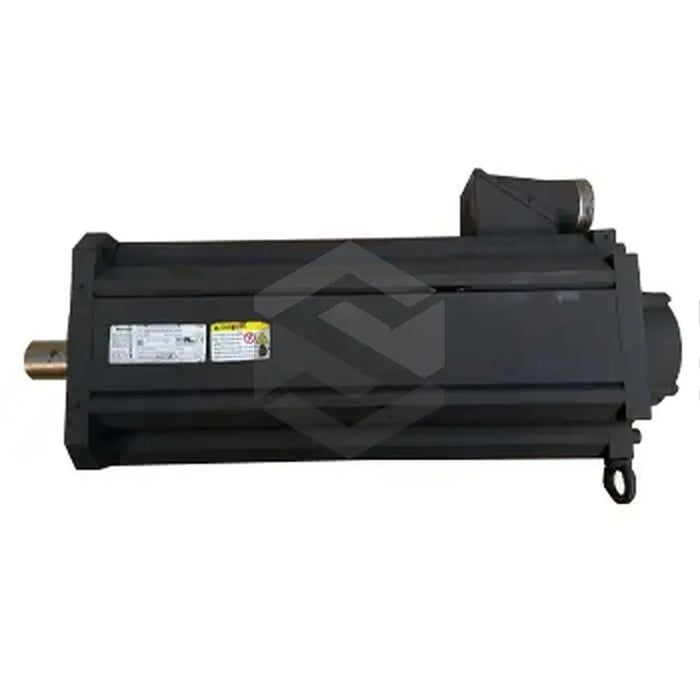

The Bosch Rexroth Indramat R911329222 (MSK101E-0300-NN-S3-FG0-NPNN) is an MSK101E synchronous motor, recognized as part of a trusted line of industrial components. Known for their reliability and excellent customer service, Bosch Rexroth offers a range of products designed to achieve maximum efficiency in various industrial applications.
The MSK101E boasts optimal operating performance in ambient temperatures from 0 to 40 °C and altitudes up to 1000 meters above sea level. Exceeding these parameters can cause a drop in performance with output decreasing by up to 20% and 30% when the temperature goes over +55 °C or at elevations exceeding 3000 meters respectively. The motor, weighing 53.5kg, has a torque constant of 1.85 Nm and a rotor moment of inertia of 0.01380 kgm2, and is capable of a top speed of 4600 RPM. The motor operates at a relative humidity range of 5% to 95% and an absolute air humidity between 1 and 29 g/m3, all whilst maintaining a noise level below 75 dB. The R911329222 (MSK101E-0300-NN-S3-FG0-NPNN) model's key electrical specifications include a maximum torque of 231 Nm, current at 187.4 A, winding resistance at 0.11 ohms, and voltage constant of 113.8 V/1000min-1 with a discharge capacity of 16.7 nF. The recommended environmental class for long-term motor use is 3K4.
30 Day Warranty
Technical Specifications
