R911329309

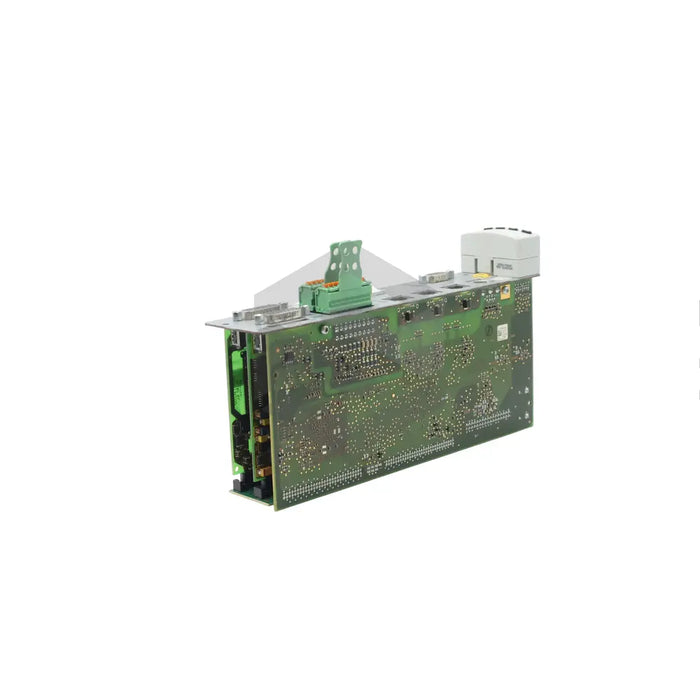

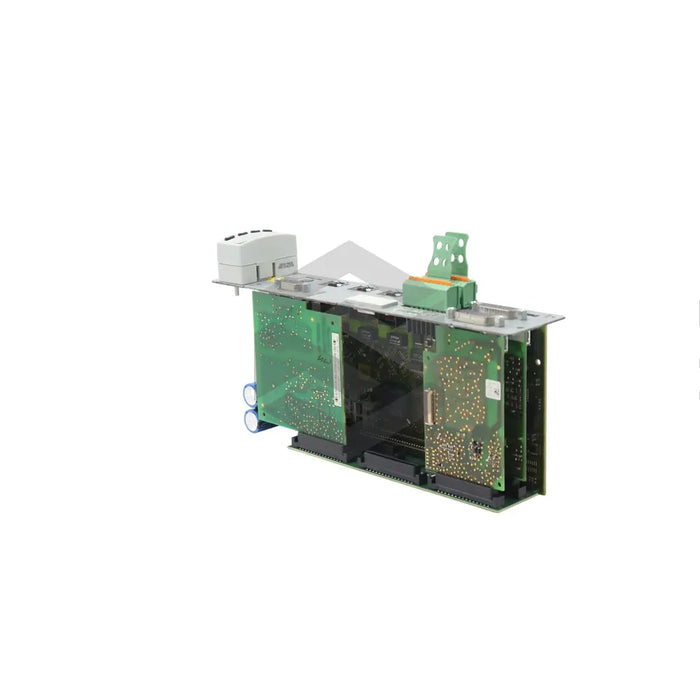

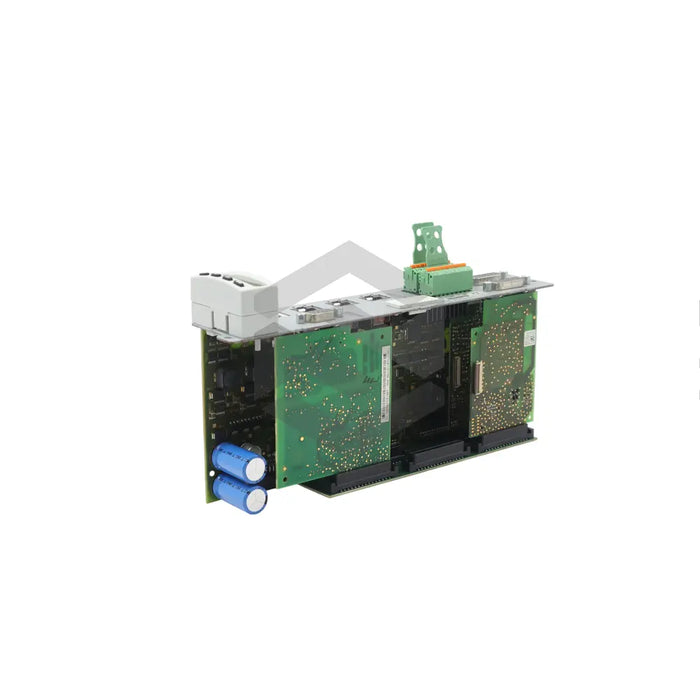

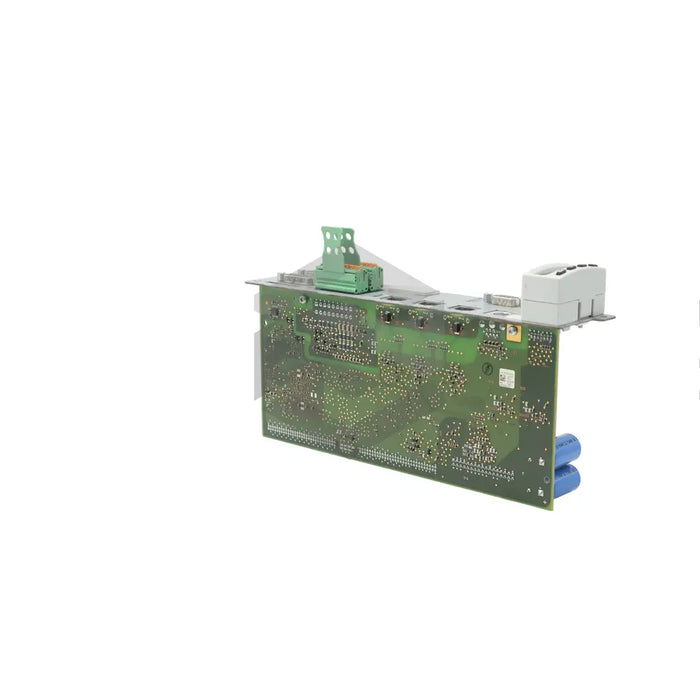

The R911329309 (CSH01.3C-PB-ENS-EN2-CCD-NN-S-NN-FW), manufactured by Bosch Rexroth Indramat, is a control section specifically designed for Bosch Rexroth IndraDrive controllers. Its function is to process control signals, complemented by other components like a power section, a control panel, and firmware. The product's capability relies on the compatibility of installed hardware and firmware, with Bosch offering multiple firmware versions. The R911329309 (CSH01.3C-PB-ENS-EN2-CCD-NN-S-NN-FW) is compatible only with standard control panels, characterized by a single-line display and a 4-button keypad, which should be connected or disconnected when the device is powered off. Energy consumption comprises basic equipment and any optional modules.
Power is supplied to control sections through 24 Volt and 0 Volt terminal connectors at the power section. Power consumption for basic equipment, including the control section, is 8.5 Watts. Besides, with a typical inrush current of 4 Amps, the maximum pulse width is 100 milliseconds. The R911329309 (CSH01.3C-PB-ENS-EN2-CCD-NN-S-NN-FW) can also come with optional modules, including two encoder modules, a cross communication module, and a Profibus master communication module. These draw additional power: the SERCOS III-supported cross communication module consumes 1 Watt, encoder modules each take 6 Watts, and the Profibus adapter uses 2 Watts.
