R911329657

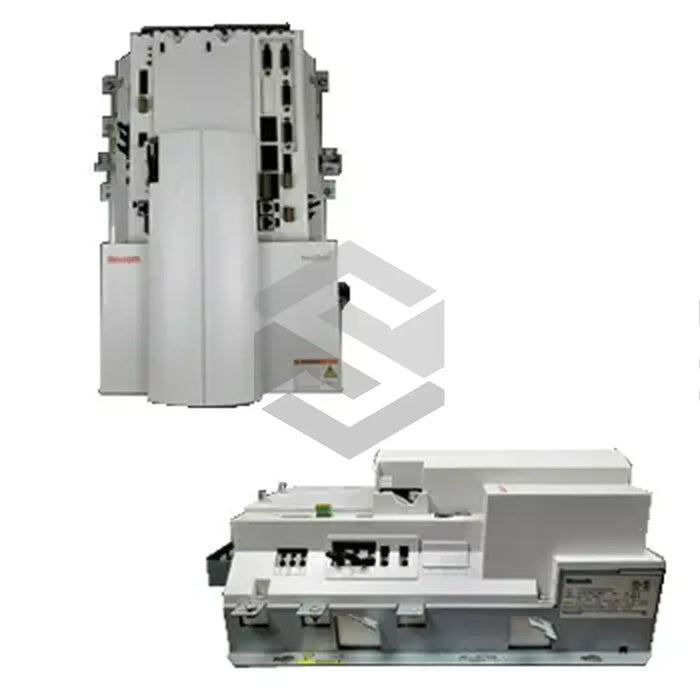

The R911329657 (HCT02.1E-W0025-A-03-B-L8-2S-NN-NN-NN-FW) is a proficient drive controller developed by Bosch Rexroth Indramat as part of the HCT02 product line. This device is designed to manage a robust axis along with two supplementary axes, implementing a multi-axis concept. Noteworthy features include an integrated PC, LX 800 master communication, a fundamental construction design, and an IP 20 protection standard. The device requires a main connection voltage of 3 x AC 200-500 V +/-10%, touts a noteworthy power rating of 25kW and encompasses a feeding power supply. The drive, with 3 axes, 4 encoder evaluations and 2 configurable slots, demonstrates exceptional adaptability.
This drive controller has crucial characteristics such as a DC bus short circuit input, an interface for an operating panel, an embedded P, an EtherNet engineering port and a SERCOS III master port. Other standout attributes include its forced-ventilation cooling mechanism, interchangeable programming module, 3 incorporated inverters and an external brake chopper for operating the braking resistor. The device must be housed inside a control cabinet at an installation altitude of up to 1000 meters with an ambient temperature of 0 to 40 degrees Celsius. The device has a short circuit current rating of 42000A rms, input current rating of 44.0A and an output voltage of 3 x AC 0–500V and weighs 11.70kg. It is recommended to mount this device in a portrait orientation to ensure optimal cooling.
