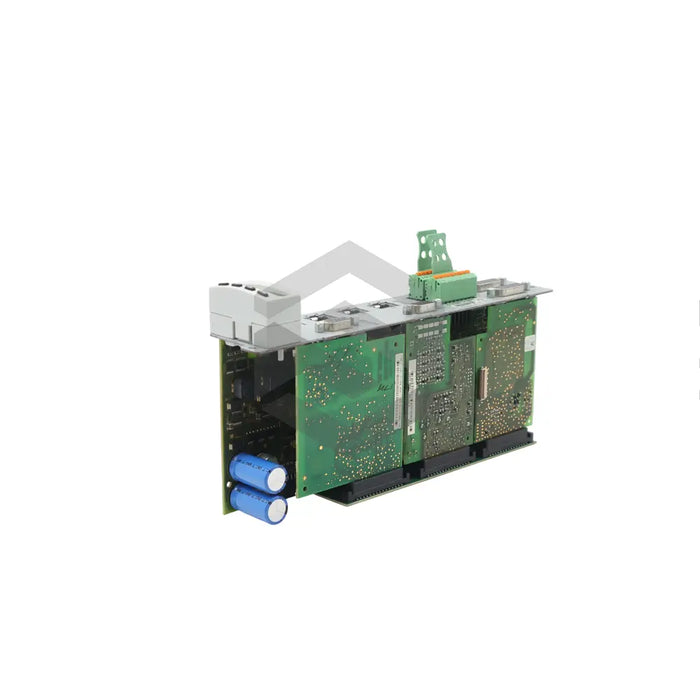

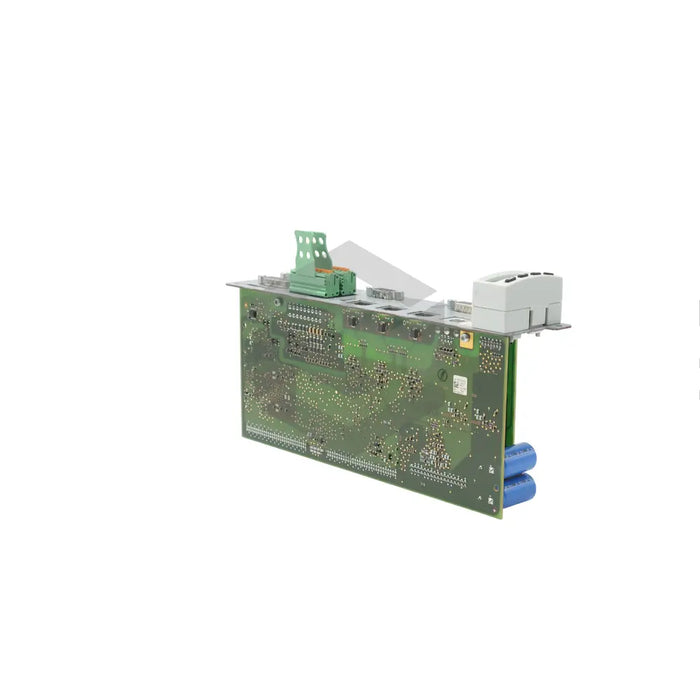

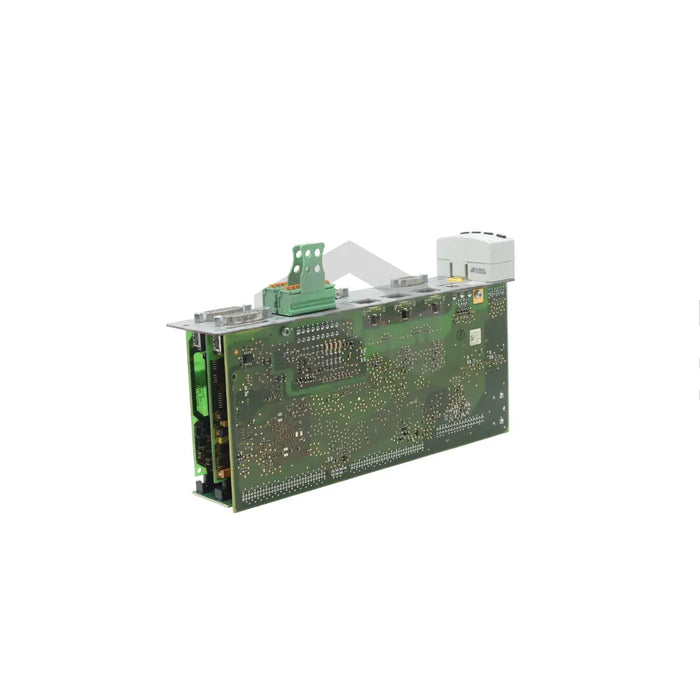

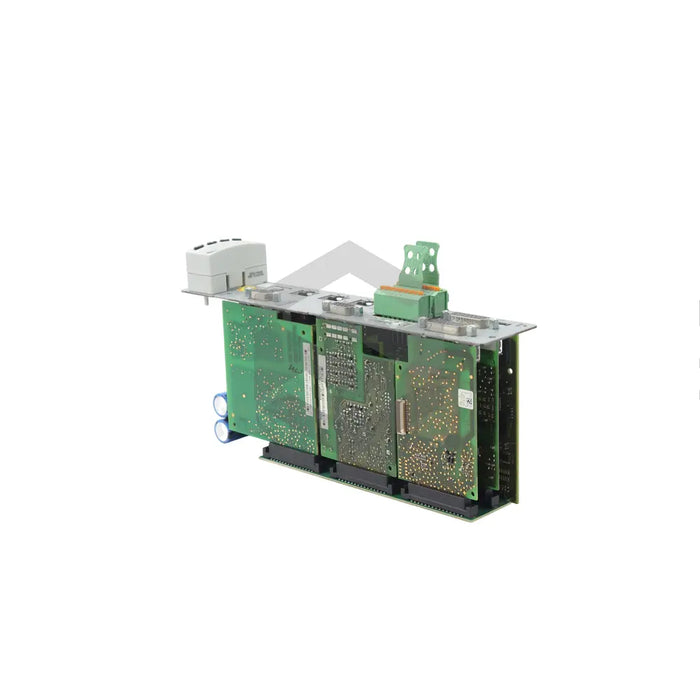

R911329904
Produced by Bosch Rexroth Indramat, the R911329904 (CSH01.3C-PB-ENS-MEM-CCD-L2-S-NN-FW) is a crucial element of the IndraDrive drive controller, typically used in industries such as machine tooling, product handling, food processing, and print and paper handling. It belongs to the sophisticated CSH control section family, and serves as a configurable single-axis control section for diverse usages in the IndraDrive system.
The section is equipped with a standard encoder evaluation interface and an encoder emulation interface. It provides assorted encoder compatibility options supported by a supply voltage of 12V. The control section offers an encoder emulation interface, which provides absolute value and incremental encoder signals effectively isolated from the circuit. The R911329904 (CSH01.3C-PB-ENS-MEM-CCD-L2-S-NN-FW) supports firmware which can be ordered separately. It uses PROFIBUS, a prevalent industry communication protocol, and a cross communication module for communication. This ensures real-time, accurate, and fast data transfer between system components. However, when operating the control section in public low-voltage mains supplying residential areas, radio interference suppression measures should be considered due to potential high-frequency interference. Lastly, a standard control panel is included with the control section for easy commissioning.
