R911330102

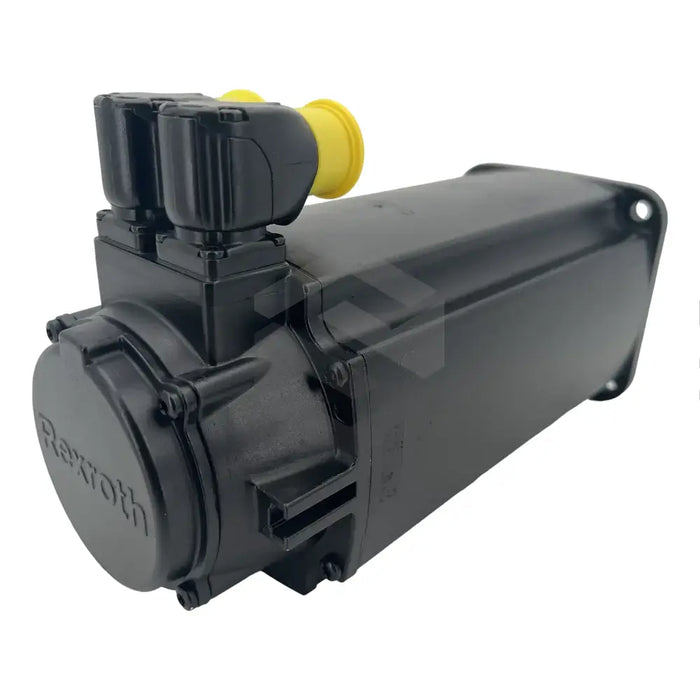

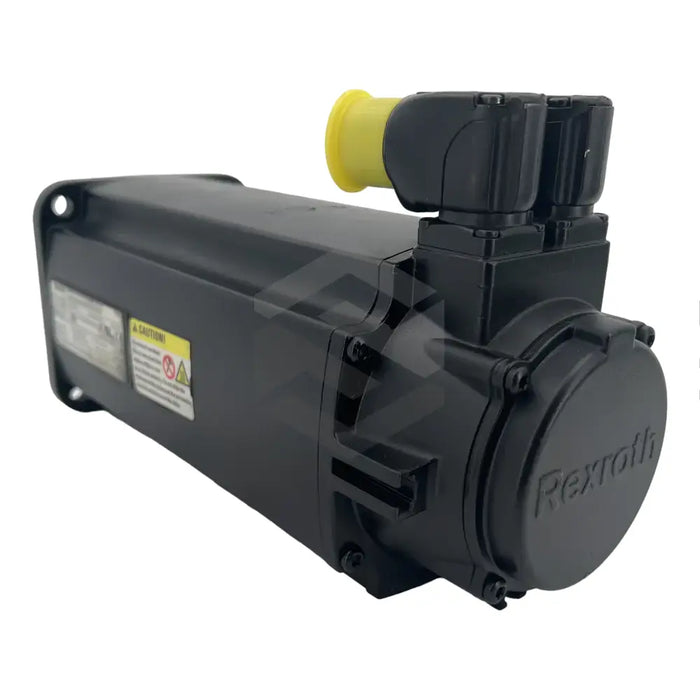

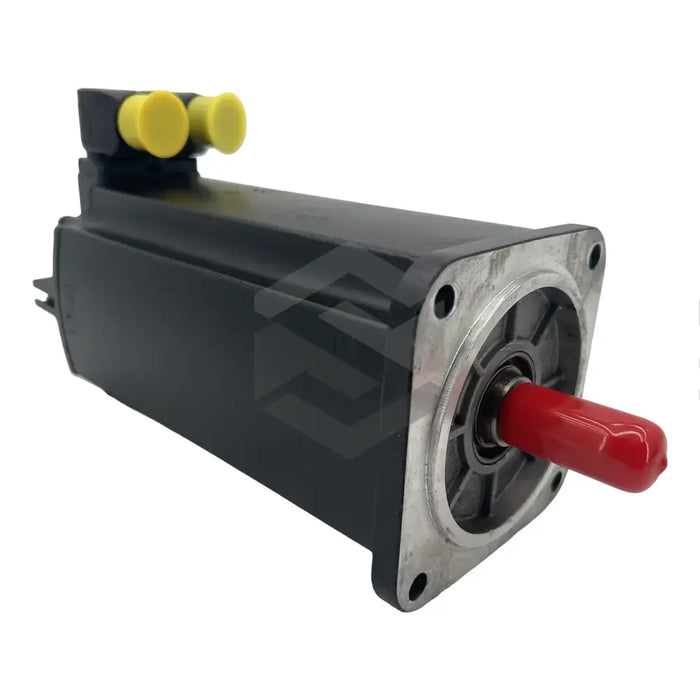

The Bosch Rexroth Indramat R911330102 (MSK061C-0200-NN-S2-UP0-RNNN) is a synchronous servo motor from the MSK series, typically utilized in robotics, packaging machines, and various other machinery such as machine tools and paper-processing machines. It operates most efficiently at ambient temperatures between 0 and 40 degrees Celsius and is adapted for natural convection. Notable features include an integrated encoder, a keyway shaft with a seal, rotatable connectors, and a housing with increased concentricity and run-out complying with DIN 42955 norms. The built-in encoder is an optical single-turn EnDat 2.1 with 2048 signal periods. This particular model does not include a holding brake; however, this can be ordered separately if needed.
Key specification details include a continuous torque at standstill of 8 Nm and a continuous current at standstill of 3.2 Amps. The R911330102 (MSK061C-0200-NN-S2-UP0-RNNN) can deliver a maximum torque of 32 Nm and a current of 14.4 Amps. With a maximum speed of 3100 RPM, the rotor moment of inertia is 0.00075 kg m2. Weighing approximately 8.3 kg, the motor guarantees total dust protection (IP65 rating) thanks to the shaft seal and enclosed housing. The motor has a thermal class of 155 and a flange-mounted design. The motor needs to be handled and installed by trained personnel due to its intricate design and functionality.
