R911330243

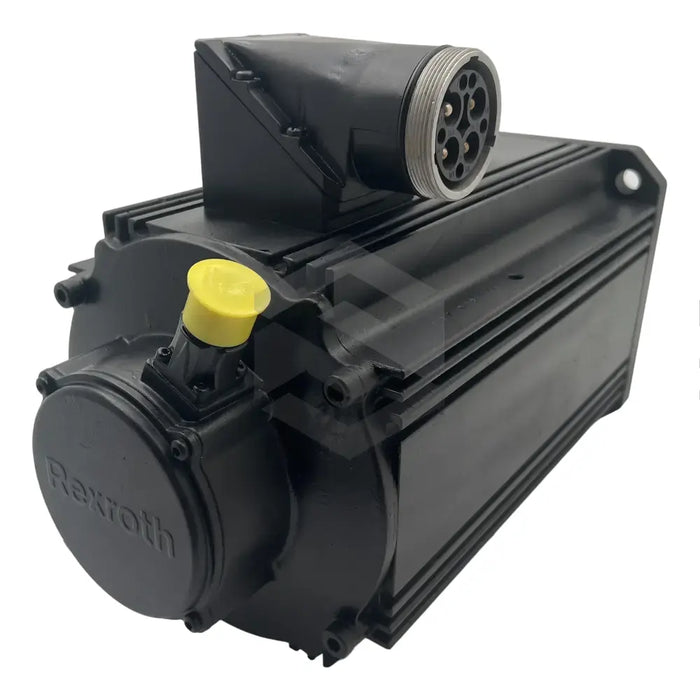

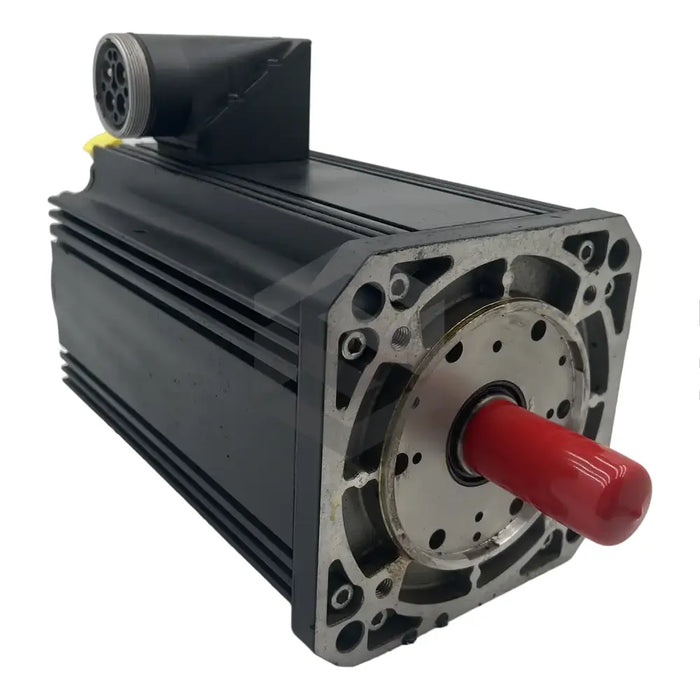

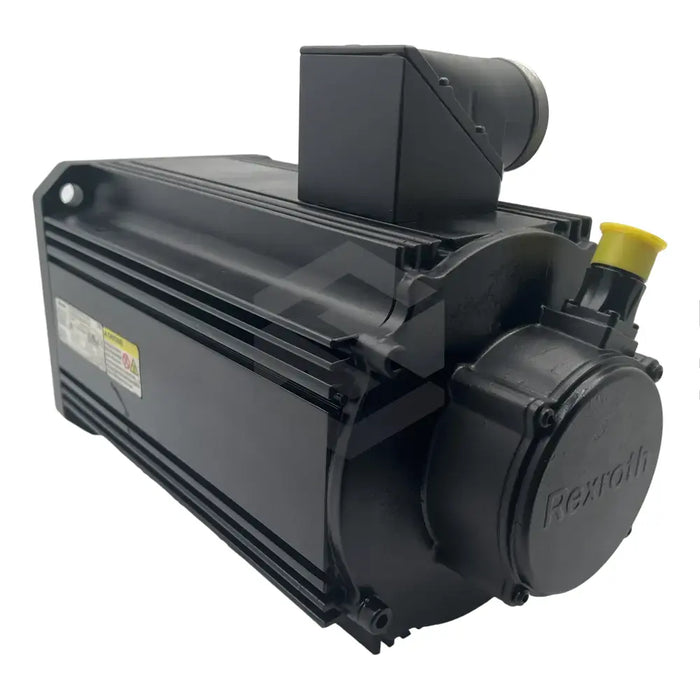

The R911330243 (MSK100B-0300-NN-S1-BG1-NNNN) is an IndraDyn S MSK series synchronous motor crafted by Bosch Rexroth Indramat. This servo motor, known for its high precision and compact size due to a 215mm diameter, is capable of efficiently operating within a temperature range of 0°C to 40°C. The motor boasts a winding code of 300, is of B length and 100 size, and uses a single turn Hiperface type of optical encoder with 128 increments for superb detail. The unit incorporates a B-side connector for electrical integration and features a standard shaft sealing ring and a plain shaft. Its holding brake can be electrically released at 32Nm. Conveniently, the motor naturally cools via convection, eliminating the need for an integrated fan.
Additionally, the R911330243 (MSK100B-0300-NN-S1-BG1-NNNN) can maintain a steady current of 26.1A and a continuous torque of 42.0Nm while in standby operation. Moreover, it produces a sound pressure level less than 75dBA, promising quiet functionality. The motor adheres to an insulation class of EN 60034-1 and assures an IP65 degree of protection. Connections to the motor should utilize the manufacturer's approved CSA/UL cables. Lastly, the motor's bearings are designed to last for 30,000 hours, contributing to the overall longevity of the device.
