R911334538

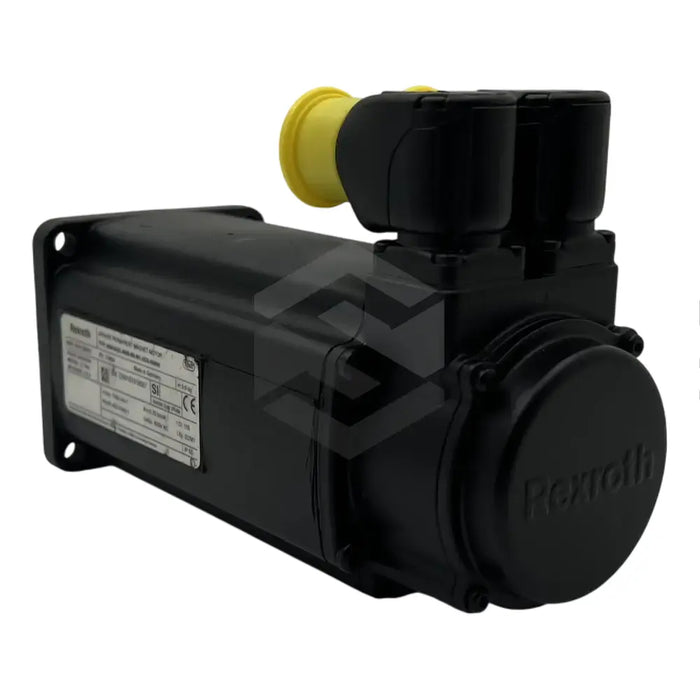

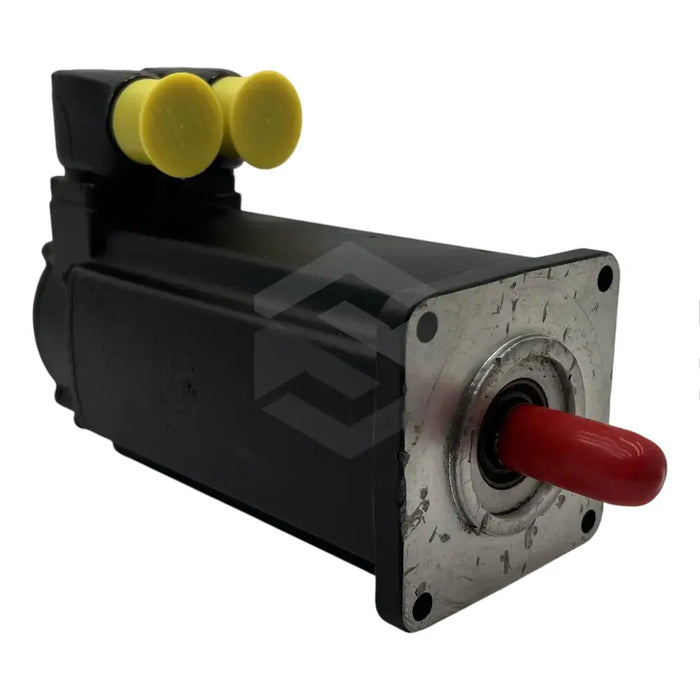

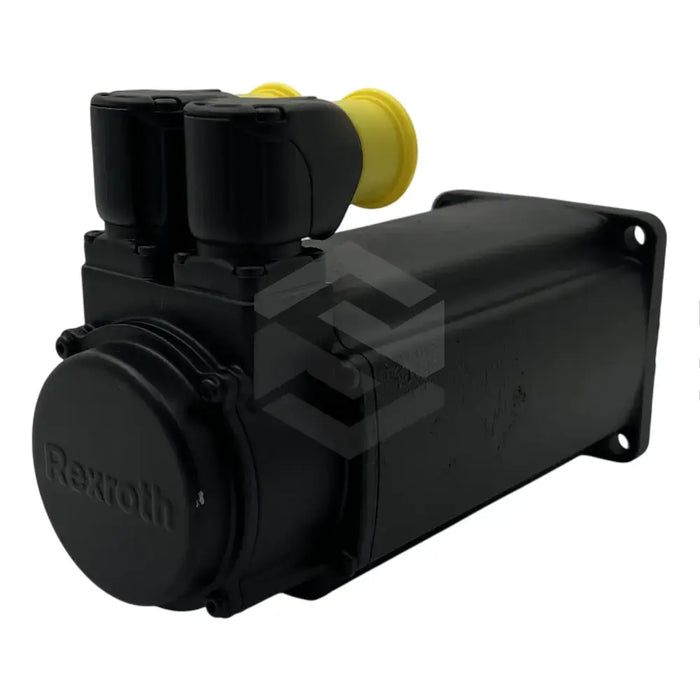

The Bosch R911334538 (MSK043C-0600-NN-M3-UG0-NNNN) is a sophisticated servo motor from the esteemed Rexroth MSK series. While it doesn't come equipped with a holding brake, one can be incorporated upon request during purchase. The product is enhanced with a capacitive multi-turn encoder, possessing 4096 unique revolutions and 16 signal periods, with encoder precision being ±520 angular seconds. The maximum encoder speed peaks at 12000 RPM, and it draws a maximum of 50 milliamps current at an input of 7 to 12 Volts DC. The connectors for power and feedback can rotate up to 240 degrees. The product's smooth main shaft includes a sealing ring to protect the motor bearings, which requires regular replacement due to wear.
The R911334538 (MSK043C-0600-NN-M3-UG0-NNNN) motor is designed for optimal performance and longevity, achieving its cooling through natural convection, with a maximum motor speed of 7500 RPM. It should operate at ambient temperatures between 0 to 40 degrees Celsius and at altitudes up to 1000 meters for top results. The motor is safely transportable under conditions of -20 to 80 degrees Celsius temperatures and 75% relative humidity. Storage should maintain the same temperature parameters, with 5 to 95% relative humidity, and should always be in the original packaging, under a vibration-free, light-protected environment. Ice formation, direct sun exposure, and salt mist are harmful during transport or storage.
