R911335483

Original price $21,840.00 - Original price $21,840.00
Original price
$21,840.00
$21,840.00 - $21,840.00
Current price $21,840.00
Available, Shipping Varies
Request a quote

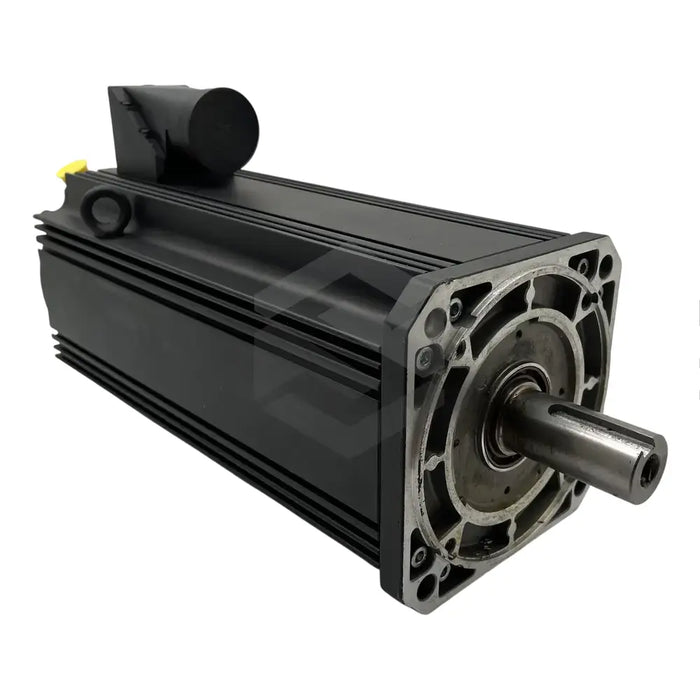

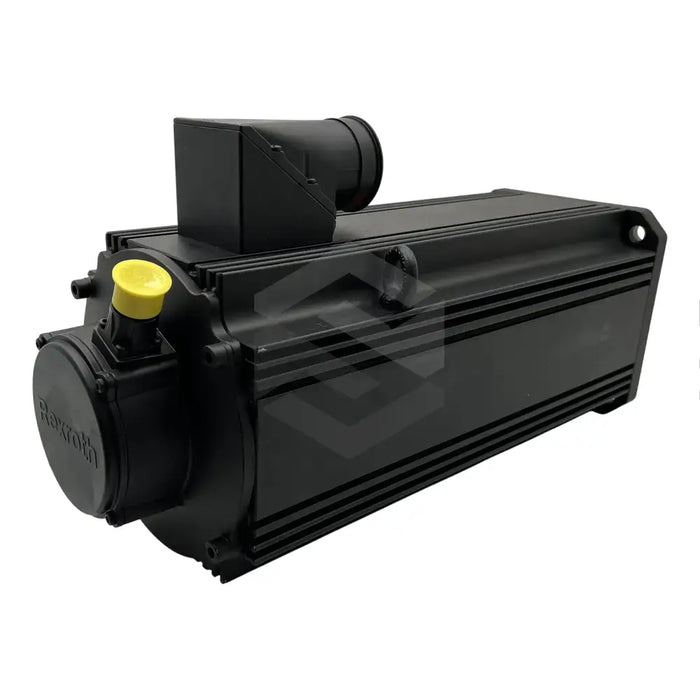

The Bosch Rexroth Indramat R911335483 (MSK101E-0200-FN-S1-AP0-NNNN) is a component of the MSK series of IndraDyn S servo motors. This MSK motor model is highly revered for its compact structure, elevated torque density, and highly accurate encoder systems. The applications of this motor typically include machine tools and robotics. The R911335483 (MSK101E-0200-FN-S1-AP0-NNNN) model is characterized by a single-turn absolute encoder with data memory for quick and risk-free startup and reduced adaptation damage risk to the drive controller. Boasting system accuracy of ±80 angular seconds, this motor can produce a torque of up to 231.0Nm and operates with a maximum current of 67.1A. Structurally, the motor comes with an IP 65 rated sealed housing per EN 60529 that makes it dust and water jet resistant, an output shaft with a DIN 6885 keyway, and a DIN 3760 - Design A shaft sealing ring. Additionally, it features two separate temperature monitoring systems to prevent lasting thermal overload damage. The model uses liquid cooling, making it optimal for constant start-stop operations with high repetition rates.
30 Day Warranty
Technical Specifications
  • Manufacturer: Bosch Rexroth Indramat
  • Product Line: IndraDyn S
  • Product Family: MSK Series
  • Product Model: MSK101E-0200-FN-S1-AP0-NNNN
  • Temperature Monitoring Systems: KTY84 thermal sensor in windings and independent secondary system
