R911335649

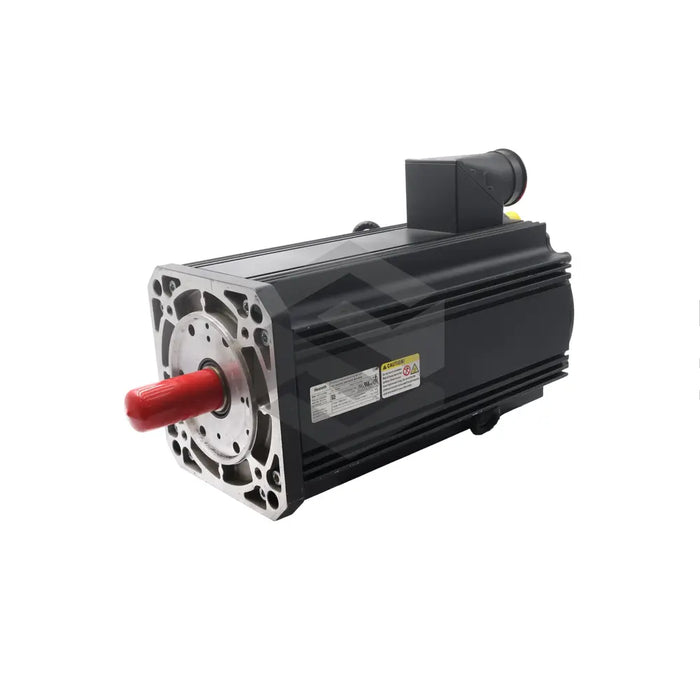

The Bosch Rexroth R911335649 (MSK100C-0300-NN-S3-AG0-NNNN) is a distinguished industrial servo motor, notable for its impressive maximum speed of 4500 RPM. Capable of synchronizing the shaft speed to the input current frequency, the MSK synchronous motors is perfect for operations such as machine tools, robotics, metal-forming machines and printing machines. The servo motor has a robust construction with standard housing and doesn't include an optional holding brake. The integrated capacitive singleturn encoder, consuming a peak current of 50 milliamps, operates optimally within a supply voltage range of 7 to 12 Volts DC.
The motor, with a frame size of 100 and frame length of 'C', has a winding code of 0300. It is designed to facilitate natural convection and operates best between temperatures of 0 and 40 degrees Celsius, although it can withstand up to 55 degrees before output is affected. The motor, which weighs 45.1 kilograms, offers a dependable IP65 ingress protection rating against dust and low-pressure water jets. Its plain shaft is complemented by a seal, and the motor can be powered through an electrical connection on side A of the housing.
