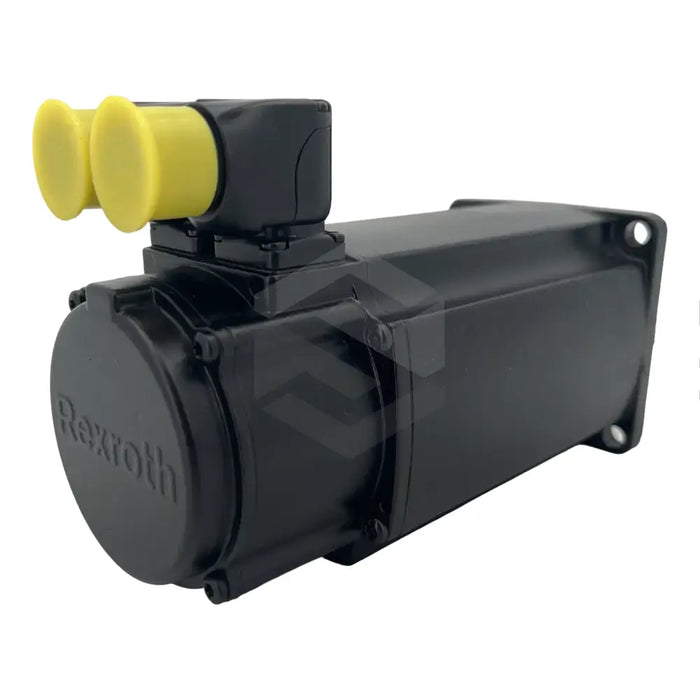

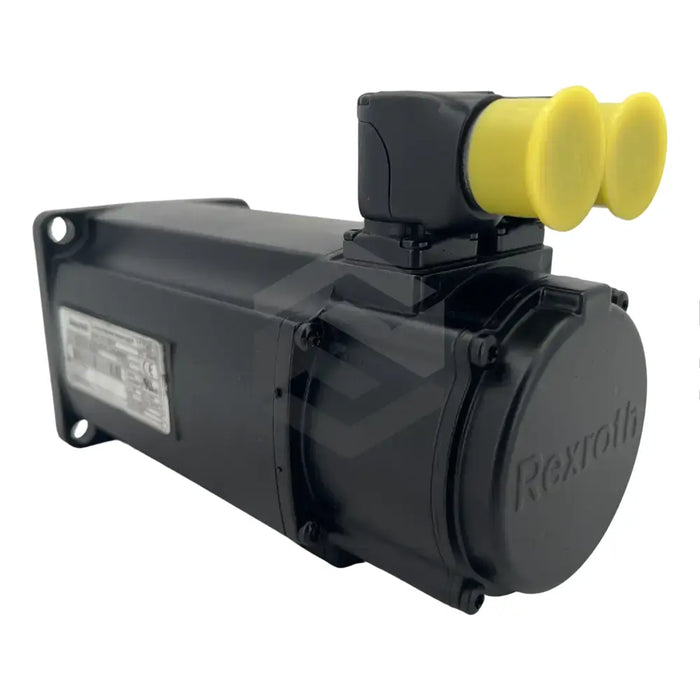

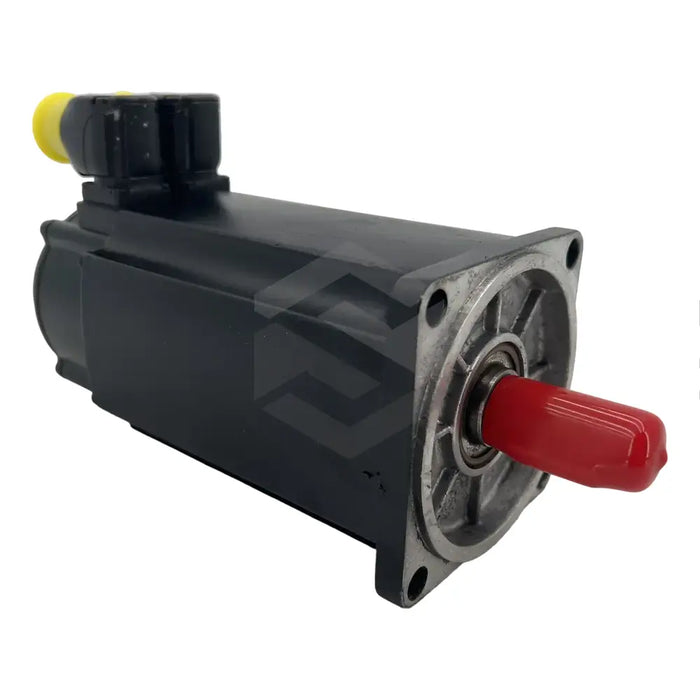

R911335653
The Bosch Rexroth Indramat manufactured R911335653 (MSK050C-0300-NN-S3-UP0-NNNN) is an advanced model equipped with an optical encoder, offering high-resolution control. Featuring 16 signal periods, the encoder operates on Hiperface. This MSK050 synchronous servo motor utilizes self-cooling methods, though a fan-assisted cooling option is also available. The motor, designed without holding brakes, locks via a keyway on the output shaft, ensuring reliable protection from dust and environmental elements.
The brushless design of the R911335653 (MSK050C-0300-NN-S3-UP0-NNNN) not only makes it cost-effective but also minimizes maintenance. Capable of operating at up to 4700 revolutions per minute, the motor offers a torque of 15 Nm while drawing a current of 12.4 A. Particularly versatile, it suits diverse industrial applications, including conveyor assemblies, chemical processing, and packaging. The motor provides a moment of inertia of 0.00033 kg-m square and, at standstill, offers a maximum torque of 5.5 Nm with a 100 K increase in the housing temperature through continuous current consumption of 3.1 A. The R911335653 (MSK050C-0300-NN-S3-UP0-NNNN) can be obtained from Servo Supplier and should be installed as per the MSK user manual for optimal operation.
