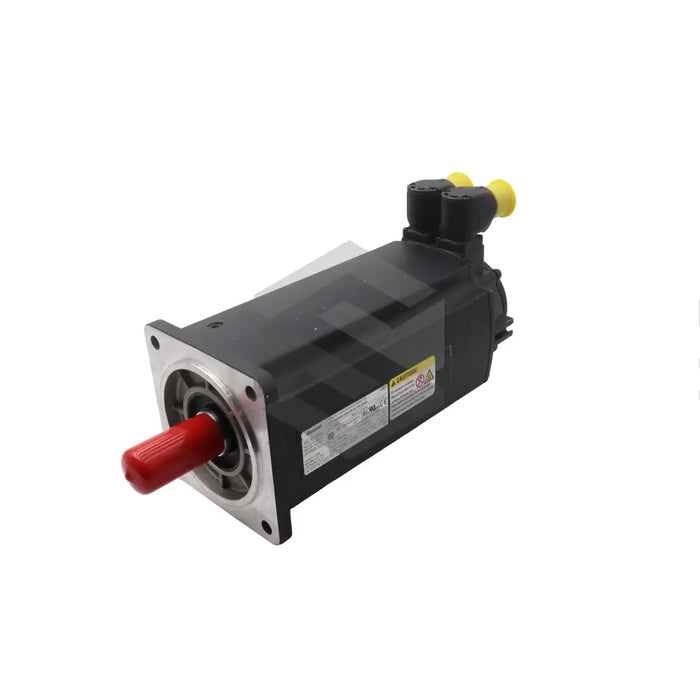

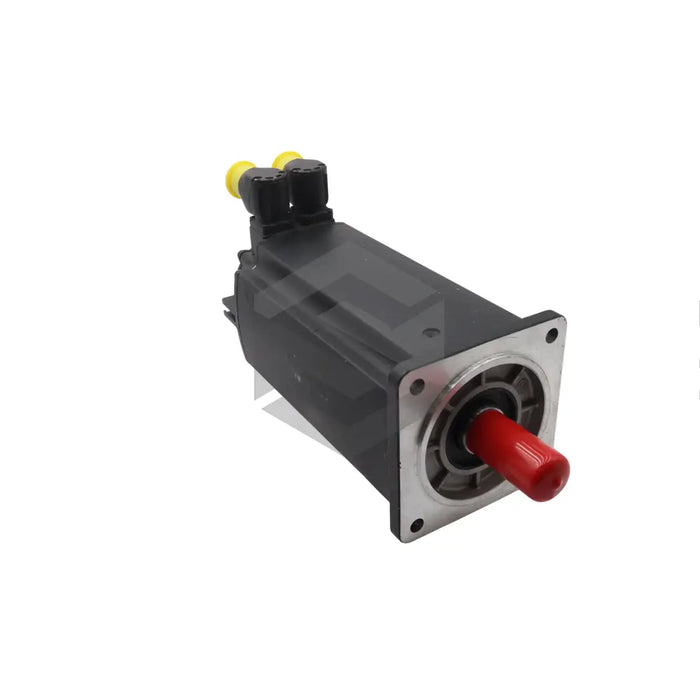

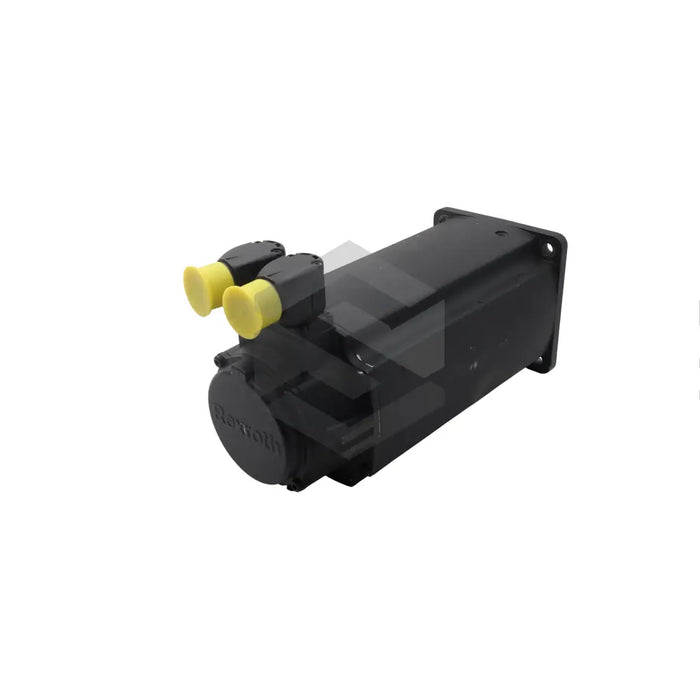

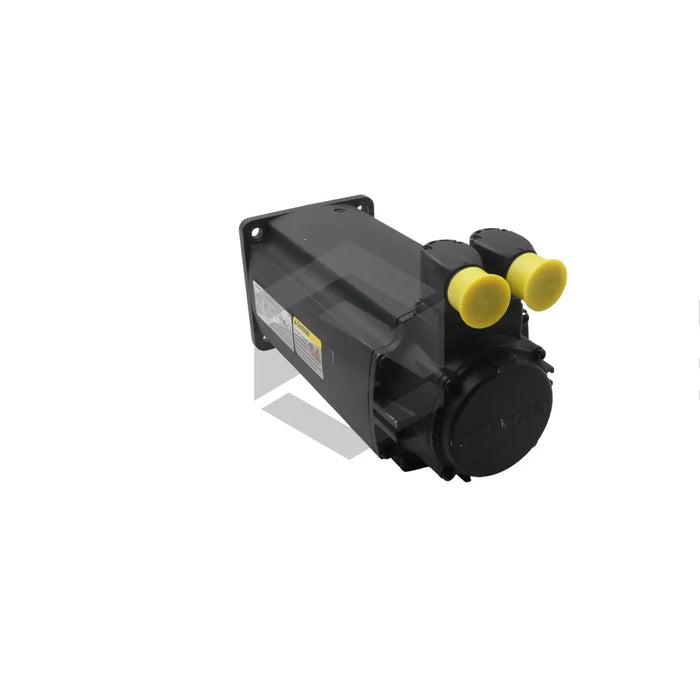

The R911335849 (MSK060C-0600-NN-M3-UG1-NNNN) is a high-quality synchronous servomotor manufactured by Bosch Rexroth Indramat. Featuring a 240° rotatable connector, it excels in delivering high torque density. It employs a safety feature that detects voltage deviations and prompts immediate fault rectification. The unit's holding brake is intended for use only when the motor is stationary or during a drive-internal brake check. For optimal performance, the drive controller should be programmed prior to startup. The motor must not be operated in places with persisting explosive atmospheres.
The motor adheres to thermal class 155 as per EN 60034-1 standards, with potential for overheating under overload conditions. Measuring 116 x 226 x 50mm, the motor has a rotor's moment of inertia at 0.0008kgm2 and incorporates a 4,096-revolution multiturn absolute Hiperface encoder. The servo's housing is finished in RAL 9005 black varnish and features a plain shaft with a shaft sealing ring. Performance and position are controlled via an inbuilt encoder linked to the drive controller. The R911335849 (MSK060C-0600-NN-M3-UG1-NNNN) motor comes with a one-year warranty and is available for delivery to any location.
