R911336081

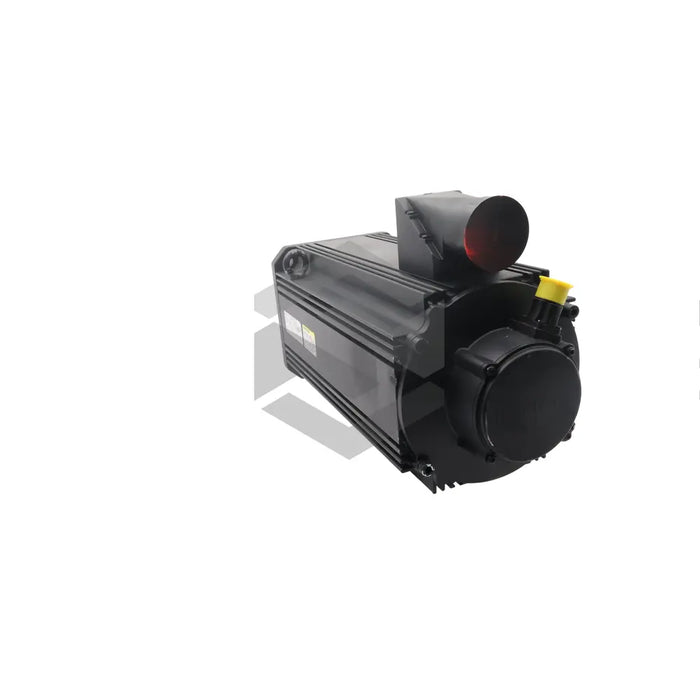

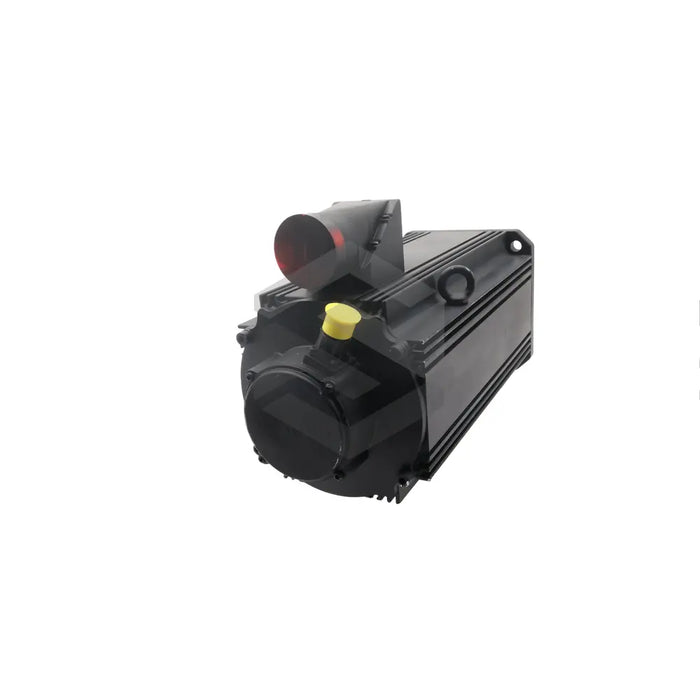

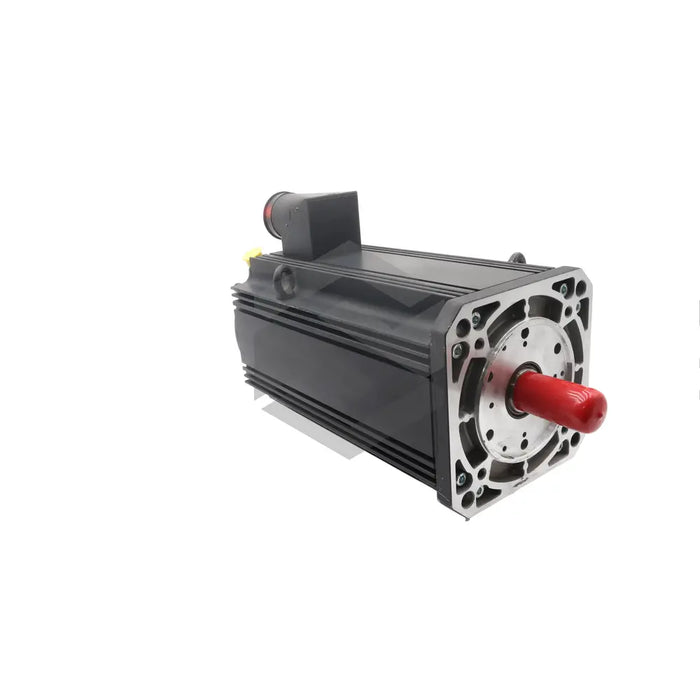

The R911336081 (MSK100C-0200-NN-M2-BP2-RNNN), crafted by Bosch Rexroth Indramat, is a high-grade industrial part, known for its premium quality. Maintaining true to its commitment for innovation, Bosch Rexroth invests significantly in research and development, putting it at the forefront of manufacturing and mobility solutions.
The R911336081 (MSK100C-0200-NN-M2-BP2-RNNN) is encased in an IP 65-rated housing offering complete protection from dust and water jets, further shielded by a coat of black paint. This unique model possesses a power connector on side B, as indicated in the manual. It features a housing that supports natural convection with a thermal time constant of 90 minutes. With inductance and resistance measuring at 6.700 mH and 0.46 ohms respectively, it upholds a voltage constant of 145.5 V/min-1 at 20 degrees Celsius. Designed to operate efficiently within a relative humidity of less than 90% and a temperature range of 0 to +40 degrees Celsius, this robust model weighs 45.1 kilograms and rapidly reaches a maximum speed of 3500 revolutions per minute under optimal conditions.
With an EnDat2.1 encoder, this model flaunts an insulation class of 155. It features a motor-retaining brake with a torque of 70 Newton-meters, weighing 4.9 kilos, and a nominal voltage of 24 volts. This electrically-released brake connects and disconnects in 53 and 97 milliseconds respectively. The elegant yet sturdy design of the R911336081 (MSK100C-0200-NN-M2-BP2-RNNN), an IndraDyn S motor, incorporates an output shaft with keyways, making it a versatile choice for various applications.
