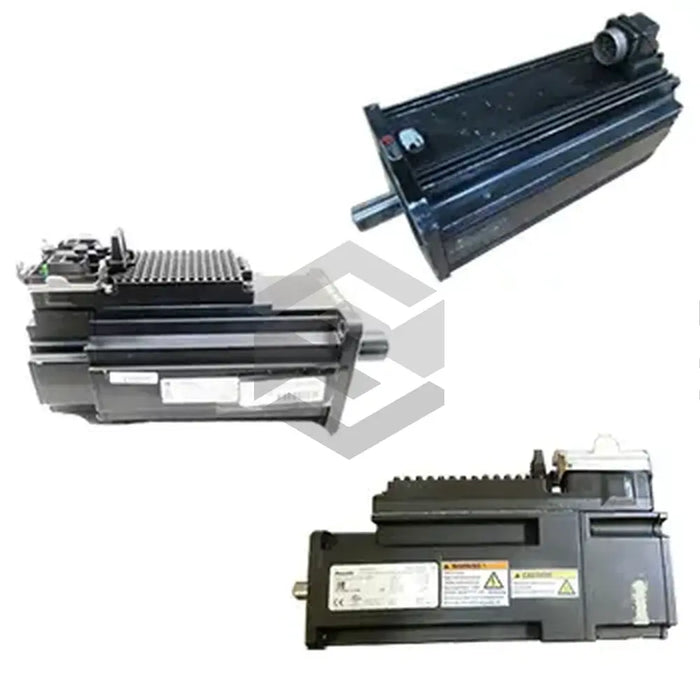

The R911336098 (KSM02.1B-071C-35N-M1-HP0-ET-L3-D7-NN-FW), a product of Bosch Rexroth Indramat, is part of the Rexroth KSM02 series and it's an integrated motor drive system, housing both motor and control electronics in a compact unit. This integrated system minimizes capital and operational costs by eliminating the need for a separate motor and drive purchase and by reducing maintenance via cutting potential failure points. Cooled by natural convection, the R911336098 (KSM02.1B-071C-35N-M1-HP0-ET-L3-D7-NN-FW) performs optimally in a 0-40 degree Celsius range, with decreased output between 40 and 55 degrees Celsius. The system is not operational beyond 55 degrees Celsius.
The R911336098 (KSM02.1B-071C-35N-M1-HP0-ET-L3-D7-NN-FW)'s installation altitude extends from 0 up to 1000 meters, with system performance reducing between 1000 to 4000 meters, and inadvisable for altitudes higher than 4000 meters. The system features an incorporated single-turn optical encoder for feedback, a hybrid electrical connector, and a main motor shaft with a key, including a sealing ring. Note that a holding brake must be ordered separately if required. The system includes a multi-Ethernet communication interface and an optional safe torque off (STO). The DC supply voltage rating is 750 Volts while the IP65 protection class is compliant with IEC 60529 standards. Finally, the system weighs 14.4 kilograms.
