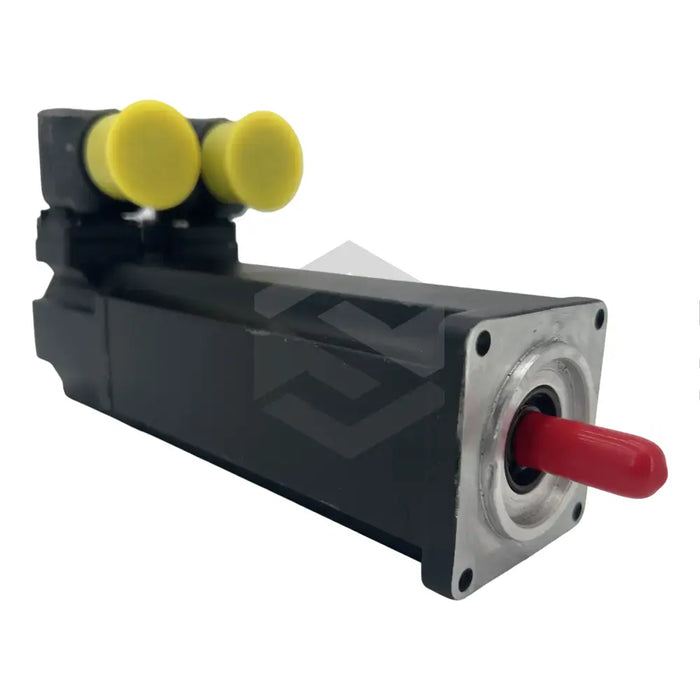

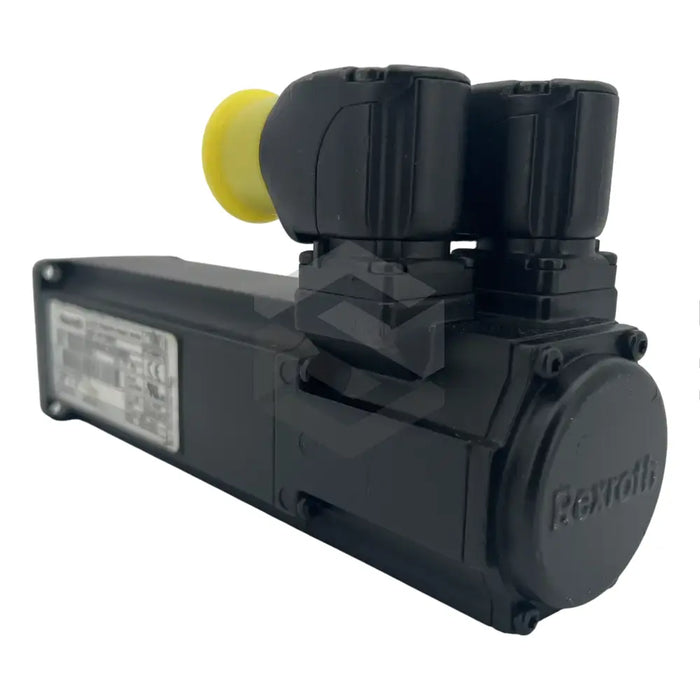

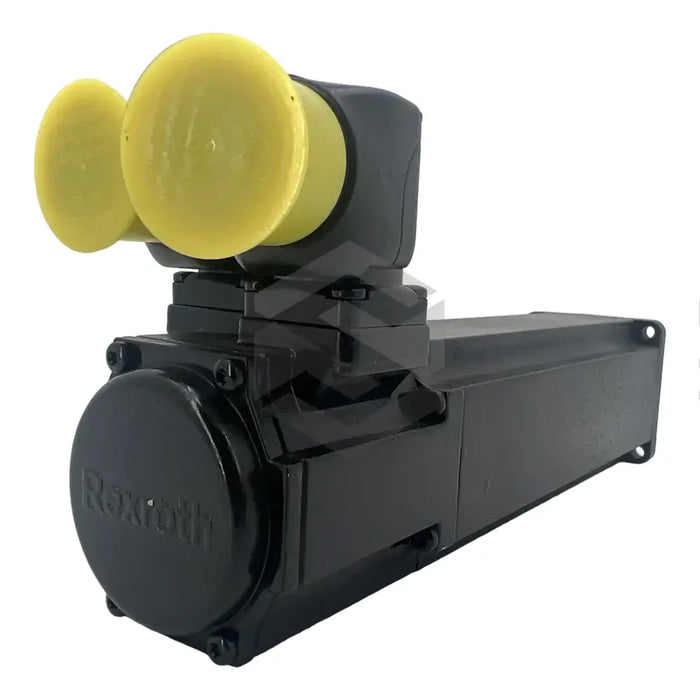

R911338951
The R911338951 (MSK030C-0900-NN-S3-UG1-NNNN), a standard version of Bosch Rexroth Indramat's MSK servomotors, utilizes a single-turn Hiperface encoder with 16 signal periods, displaying versatility for a range of application needs. This motor features a plain shaft with a shaft sealing ring, cooling via natural convection, motor frame size of 30, motor frame length of C, and a 1-Nm holding brake.
Weighing 1.9 kg, this motor has a moment of inertia of 0.00003 kgm2 and delivers a max current of 6.8 A and torque up to 4 Nm at full load. The continuous current rating is 1.5 A at 60K standstill and 1.7 A at 100K. Combine this with IndraDrive control units for a highly configurable drive system. The R911338951 (MSK030C-0900-NN-S3-UG1-NNNN) works between 0 and 40 degrees C; it has DIN EN 60034-1 standard protection degree (IP 65) and an insulation class of 155. The thermal time constant is 15 minutes. Its design highlights are its compactness, precision, dynamic performance, and high torque density, making this the preferred choice for robotics, machine tools, food processing machine, and printing machines. Proper use should follow conditions specified in the product description.
