R911339614

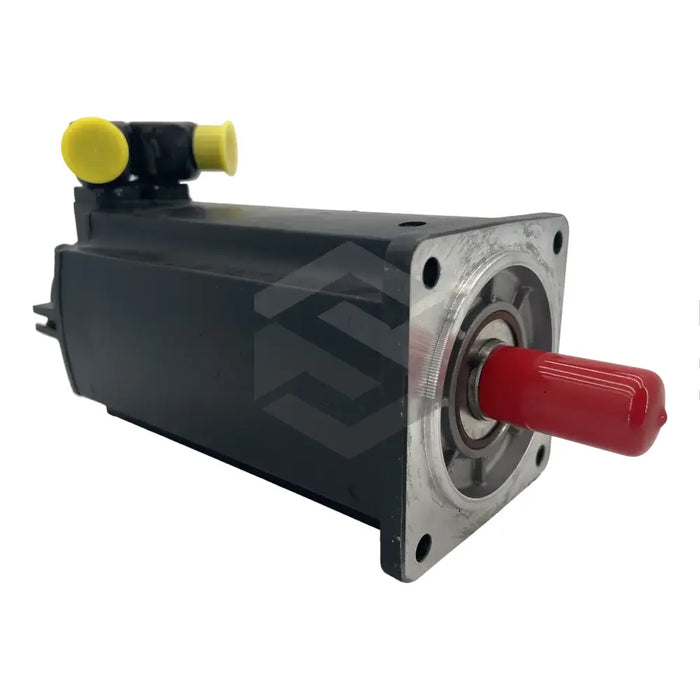

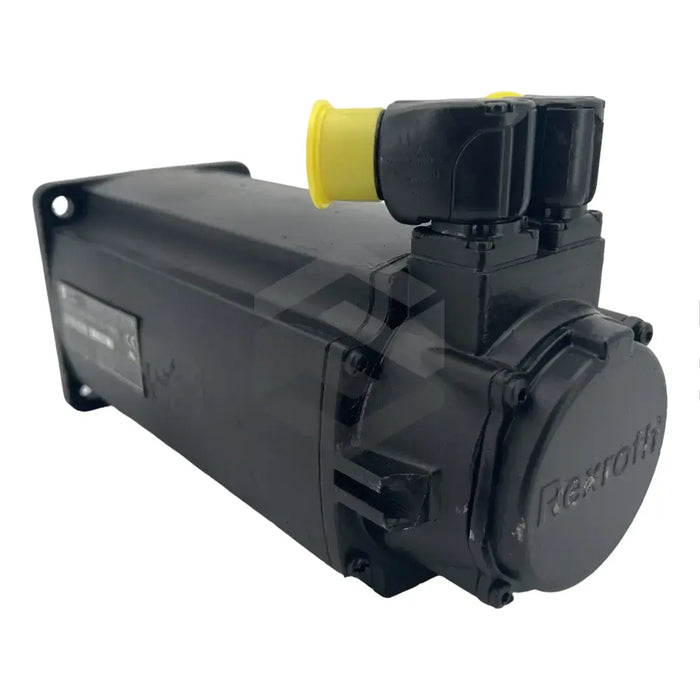

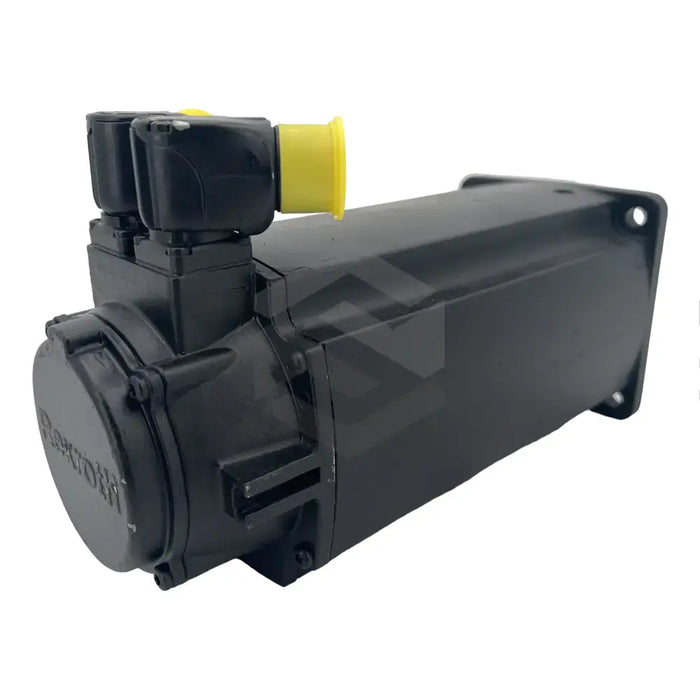

Produced by Bosch Rexroth Indramat, the R911339614 (MSK060C-0300-NN-M3-UG1-NNNN) is a synchronous motor specifically engineered for industrial use. Designed to partner with a servo drive for optimal control of operating parameters, the motor is equipped with a 10 Nm holding torque electrically released holding brake. This device accommodates the maximum connection and disconnection times of 20 ms and 40 ms respectively, and works at a rated current of 0.96 Amps and a rated voltage of 24 Volts DC. Additionally, Bosch has integrated a 16 signal periods capacitive multiturn encoder into the motor. This encoder has a maximum current consumption of 50 ms, a supply voltage range of 7-12 Volts DC, and a maximum speed of 12000 RPM.
The R911339614 (MSK060C-0300-NN-M3-UG1-NNNN)'s main shaft is equipped with a sealing ring, enhancing environmental protection. The combination of a fully sealed housing and shaft seal earns the motor an IP65 protection rating, safeguarding it against dust and low-pressure water jets. The motor's power and feedback connectors can be rotated 240 degrees, offering flexible operation. With a peak motor speed of 4900 RPM and an optimal operating temperature of 0-40 degrees Celsius, the 9.2-kilogram motor operates with a sound pressure under 75 dB. Installation and operation should be conducted by trained professionals.
