R911339991

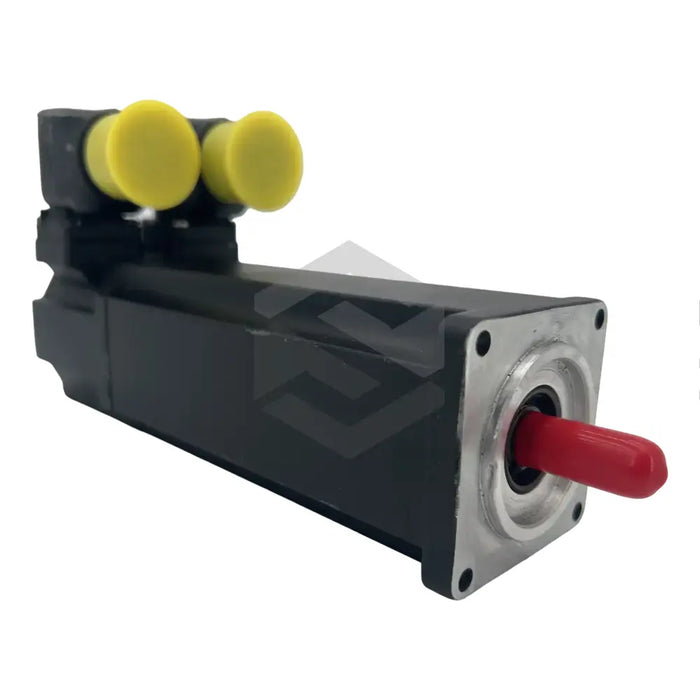

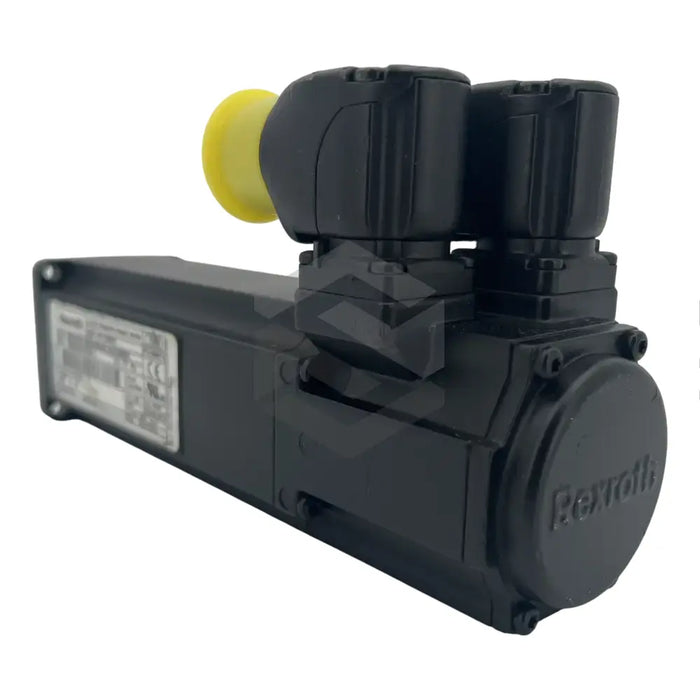

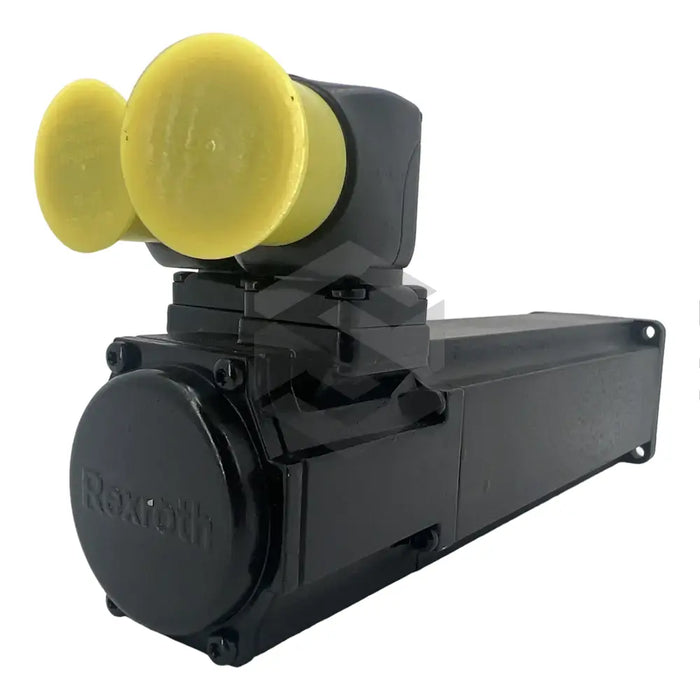

The R911339991 (MSK030C-0900-NN-S3-UG0-NNNN), produced by Bosch Rexroth Indramat, is a standard model of the MSK type servomotors. It uses a Singleturn Hiperface encoder with 16 signal periods and is highly adaptable, making it optimal for a variety of servo motor applications. The motor utilizes a plain shaft with a sealing ring and utilizes a natural convection cooling system. Structure-wise, it has a motor frame size and length of 30 and C respectively. This unit is best used in combination with IndraDrive control units for highly customizable drive system applications.
Weighing in at 1.9 kg and boasting a moment of inertia at 0.00003 kgm2, the R911339991 (MSK030C-0900-NN-S3-UG0-NNNN) operates at a maximum current of 6.8 A and can generate a torque of up to 4 Nm. The servomotor holds a standstill continuous current of 1.5 A at 60K and 1.7 A at 100K. Its operating temperature range is 0o C to 40o C. The device proudly holds a protection class of IP 65 and an insulation class of 155 under DIN EN 60034-1. Applications include robotics, machine tools, food processing, and printing machines. The design's compact, high precision, dynamic, and high torque density implementation is its hallmark. Please note that operational conditions are as outlined in the product description.
