R911340111

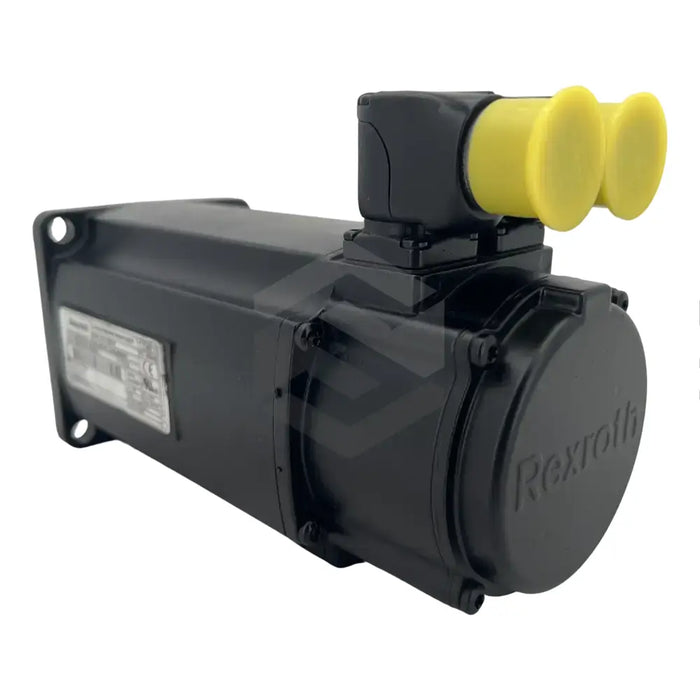

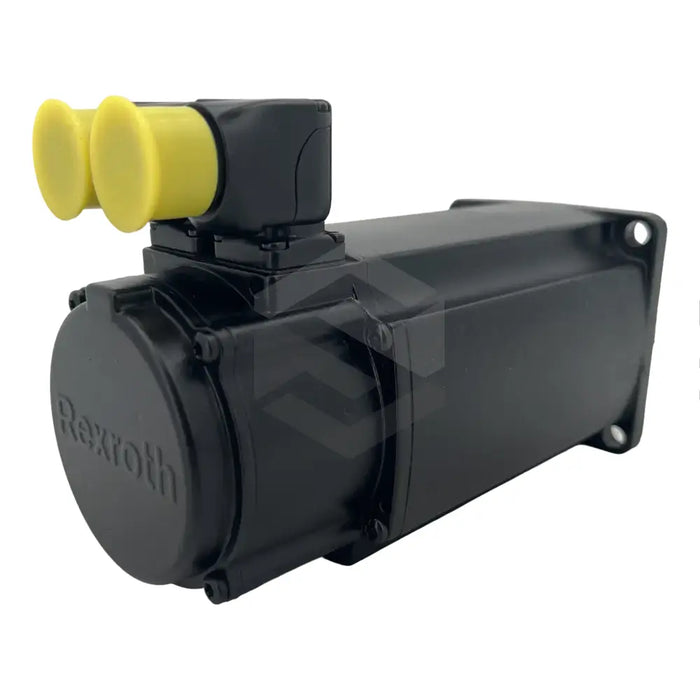

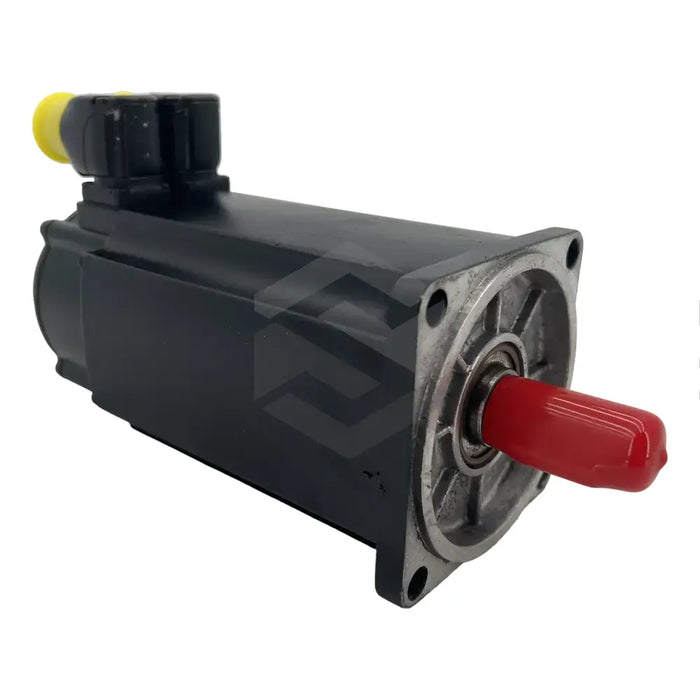

Bosch Rexroth Indramat's R911340111 (MSK050C-0600-NN-M3-UP1-NNNN) is a synchronous motor embedded with an encoder and holding brake. The motor has a maximum electrical speed of 6000 RPM and weighs 5.4 kgs, with precise mechanical dimensions consisting of 233 mm length, 95 mm diameter and a 9 mm shaft diameter. It possesses a flange with four mounting holes, each 9 mm in diameter, and a shaft extension from the motor housing of 40 mm. The technical data reveals a continuous torque of 5 Nm and current of 6.2 Amps at standstill for a 60 K overtemperature condition; similarly 5.5 Nm torque and 6.8 N continuous current for a 100 K overtemperature scenario.
The motor encoder is a 16 signal period rated capacitive multiturn variety. The 6 Nm rated holding brake on the R911340111 (MSK050C-0600-NN-M3-UP1-NNNN) releases upon applying a 24V DC signal. The motor is designed with power/feedback connectors that can be adjusted up to 240 degrees, a keyway shaft compliant with DIN 6885-1 and a sealable ring on the shaft. The motor cools naturally and operates optimally in temperatures of 0-40 degrees Celsius. Performance degrades above 40 degrees and at installation sites with altitudes exceeding 1000 meters. For safe, effective operation, the R911340111 (MSK050C-0600-NN-M3-UP1-NNNN) motor must be installed by qualified personnel.
