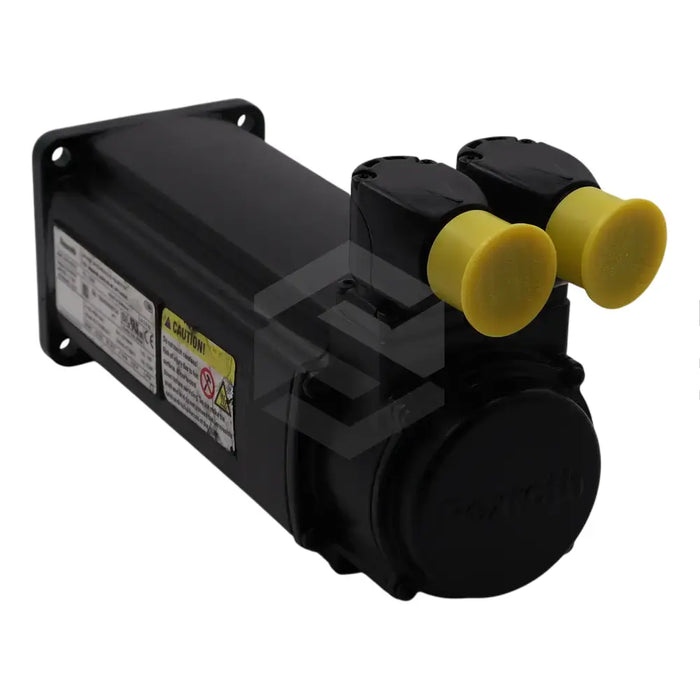

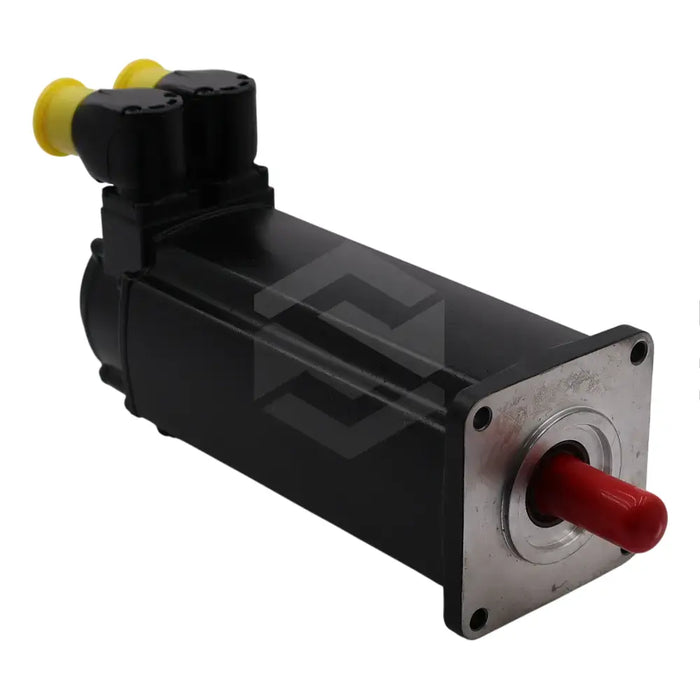

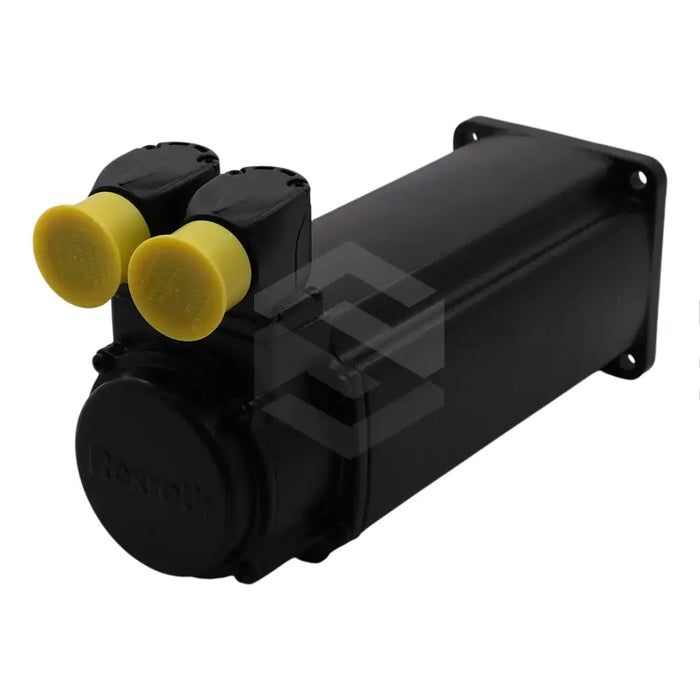

The R911340128 (MSK040C-0600-NN-M3-UP0-NNNN) is a state-of-the-art product manufactured by Bosch Rexroth Indramat, a brand renowned for their advanced technological solutions in automation and drive systems. This particular product is part of Bosch Rexroth's MSK family of synchronous motors. These motors are designed to be compatible with the Rexroth IndraDyn S drive system, offering incredible flexibility suitable to a broad spectrum of applications. The R911340128 (MSK040C-0600-NN-M3-UP0-NNNN), with its 040 frame size and frame length C, features a winding code of 0600.
This motor integrates a multiturn absolute capacitive encoder equipped with a Hiperface interface and 16 signal periods. The encoder boasts a supply voltage between 7V and 12V and a maximum current consumption of 50 mA. The R911340128 (MSK040C-0600-NN-M3-UP0-NNNN) is designed for cooling via natural convection, and while it does not include a holding brake, it possesses a shaft with a sealing ring and keyway, dimensioned per DIN 6885-1. The rotor's moment of inertia is 0.00014 kgm2, and the motor is capable of generating a maximum torque of 8.1 Nm. Also, it incorporates a temperature sensor to prevent overheating. The unit is accorded an IP 65 Ingress Protection rating, safeguarding it from dust and water jets. Ideal for fields such as printing presses, paper mills, robotics, and food companies, this motor functions optimally at ambient temperatures ranging from 0oC to 40oC.
30 Day Warranty
Technical Specifications
