R911342528

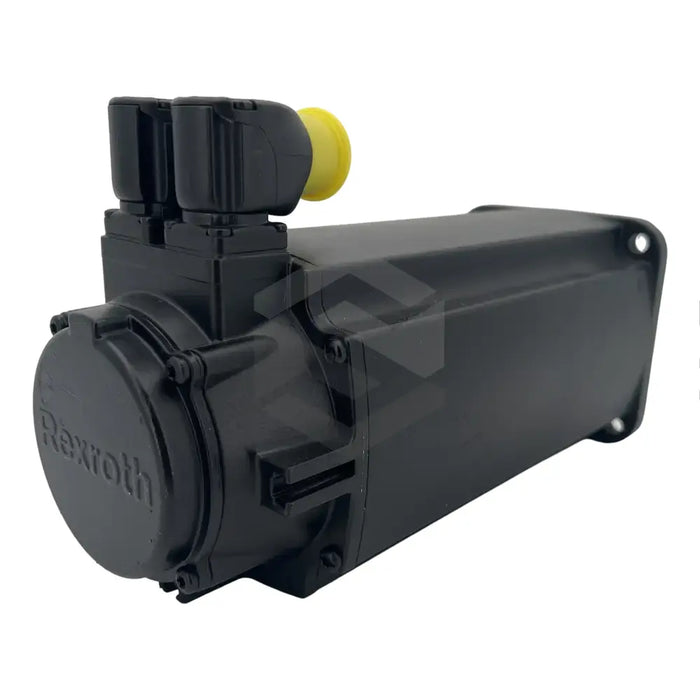

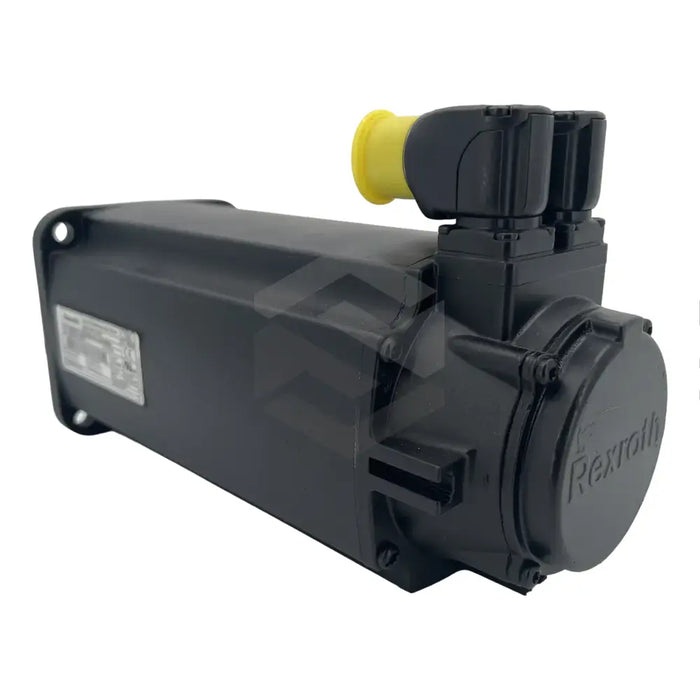

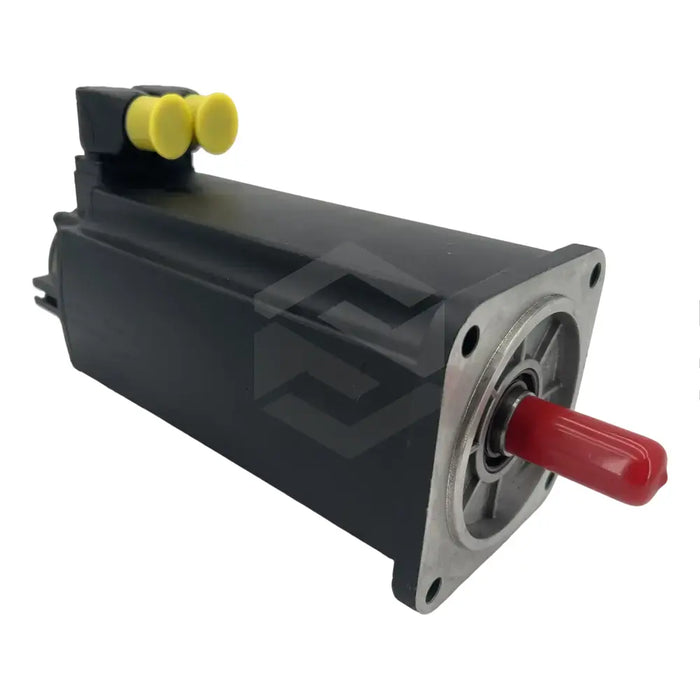

The R911342528 (MSK061C-0600-NN-S3-UG0-NNNN), a product of Bosch Rexroth Indramat, is a servo motor from the MSK family of synchronous motors used commonly in industry. Designed for various machinery applications, this motor boasts a frame size of 061 and the motor winding code of 0600. In conditions of 60K overtemperature, the motor presents a continuous torque and current at standstill of 8 Nm and 7.7 Amps, respectively. When the overtemperature reaches 100K, these figures rise to 9 Nm and 8.7 Amps. The maximum torque the motor can deliver is 32 Nm, with a maximum motor current of 34.7 Amps. The R911342528 (MSK061C-0600-NN-S3-UG0-NNNN) has a torque constant of 1.1 Nm/A at 20 degrees Celsius.
This servo motor has a voltage constant of 70.5 V/1000 RPM at 20 degrees Celsius, and it employs four pole pairs. The thermal time constant sits at 15 minutes and the motor's maximum electrical speed reaches 6000 RPM. It is recommended to operate the R911342528 (MSK061C-0600-NN-S3-UG0-NNNN) in an ambient temperature between 0 to 40 degrees Celsius to avoid output derating or malfunction. Additional features include a capacitive singleturn encoder, a 240-degree rotatable connector, and a smooth shaft with sealing ring. However, it doesn't come with a holding brake. The motor employs natural convection as a cooling mechanism. It is crucial that only trained technical specialists handle motor operation and maintenance to prevent potential damages or accidents.
