R911343150

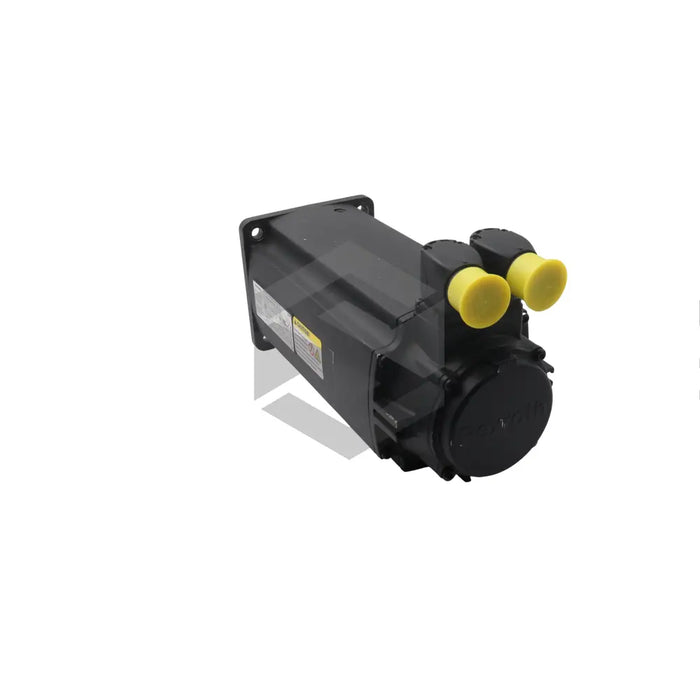

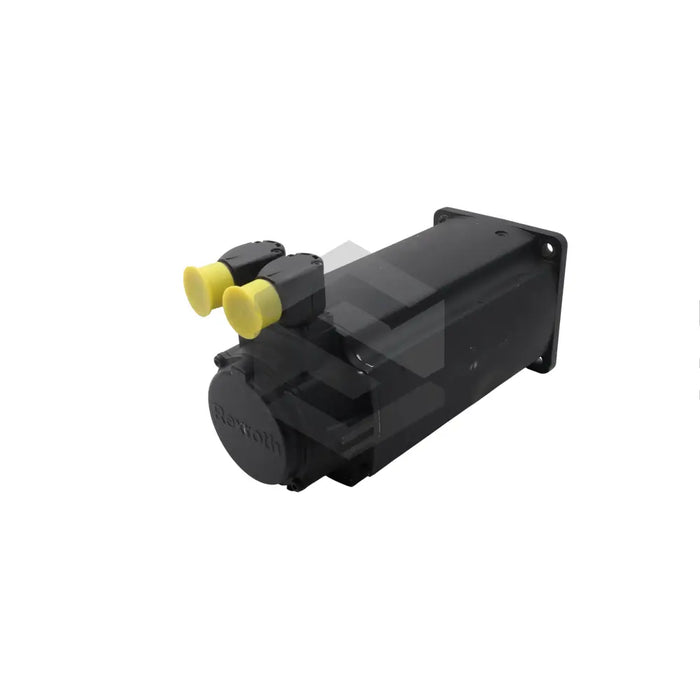

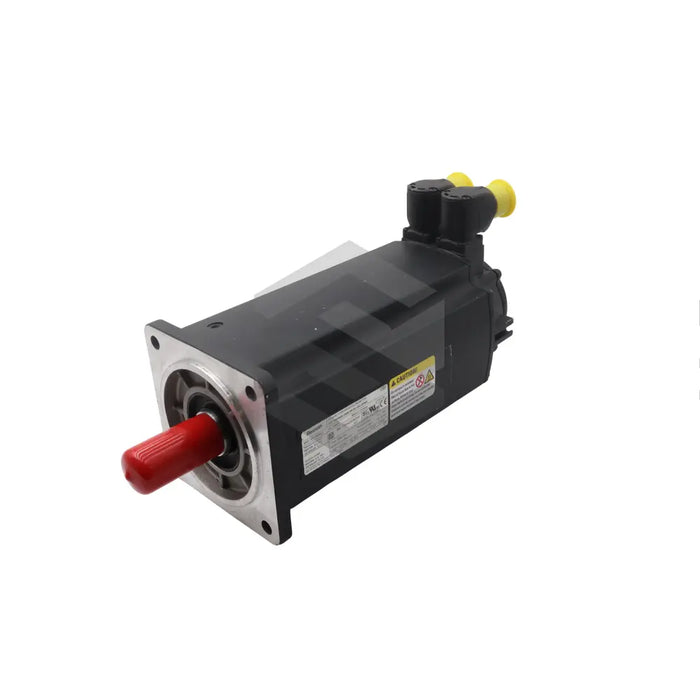

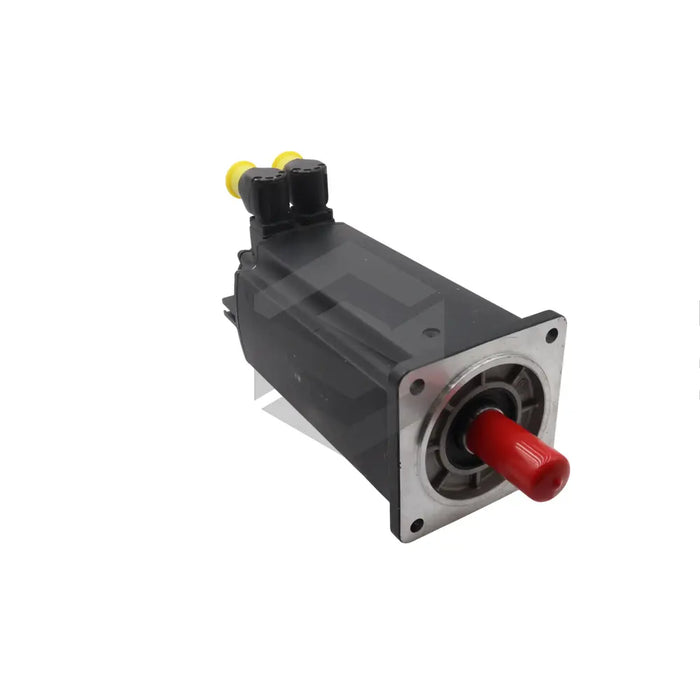

The R911343150 (MSK060C-0300-NN-M3-UG0-NNNN) is a servo motor crafted by Bosch Rexroth Indramat, based on the MSK series design. Engineered as a primary rotary and servo drive motor, it's suitable for a variety of applications including metal working machinery, packaging equipment, and machine tools, functioning in conjunction with drive controllers. Caution is advised during operation as dangerous motions may be induced by factors such as malfunctions, firmware issues, defective components, operator errors, and incorrect cabling. This could lead to equipment damage or serious injury, thus appropriate safeguards and risk assessments are required prior to machine installation.
This unit boasts a capacitive encoder rated for 16 signal periods, 240-degree rotating power/feedback connectors, and a plain shaft with a sealing ring. Designed for natural convection cooling, it operates optimally within a temperature range of 0 to 40 degrees Celsius; any deviations beyond this range may compromise the motor functioning leading to failure. The R911343150 (MSK060C-0300-NN-M3-UG0-NNNN)’s housing is IP65 rated, offering substantial environmental protection, and it has a thermal class of F as per EN 60034-1. Other essential features include a 3.1 Ohm motor winding resistance at 20 degrees Celsius and a winding inductance of 2.1 millihenry. Notably, there is no provision for a holding brake in this unit. For optimum efficiency, only Bosch-specified and approved spare parts should be used.
