R911343211
Original price
$3,402.00
-
Original price
$3,402.00
Original price
$3,402.00
$3,402.00
-
$3,402.00
Current price
$3,402.00

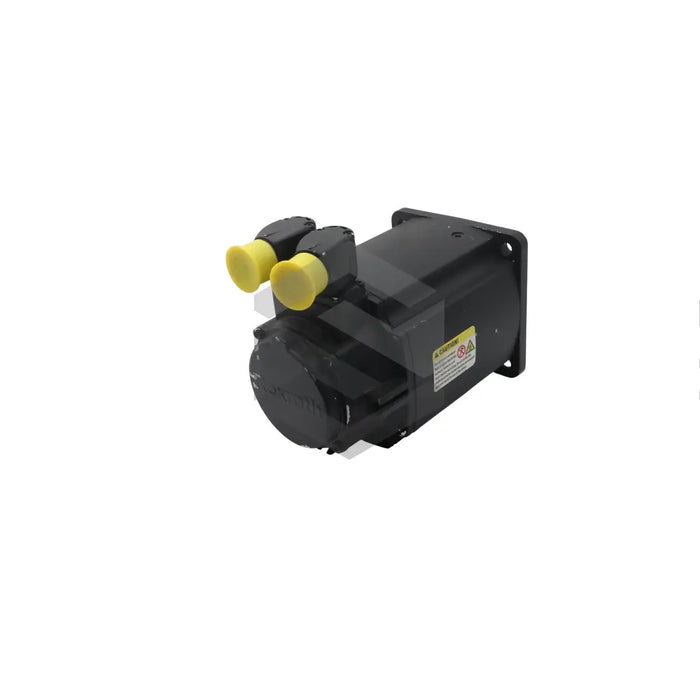

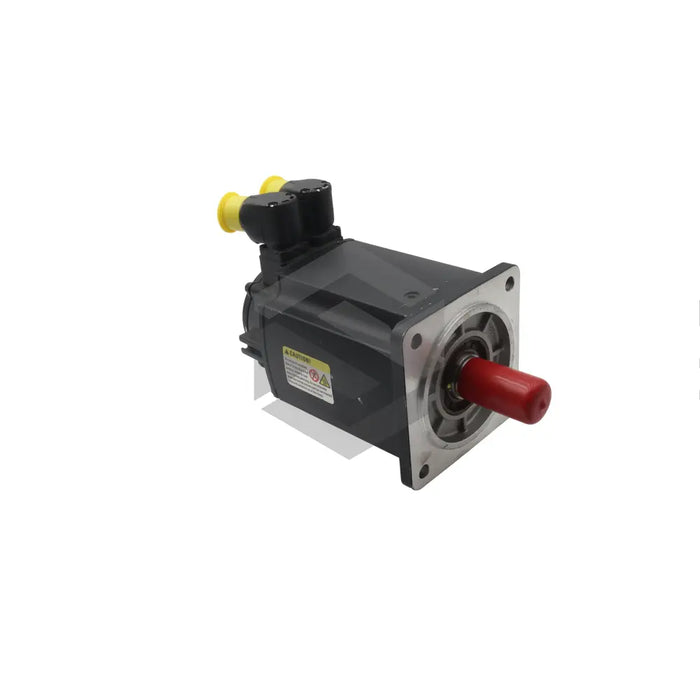

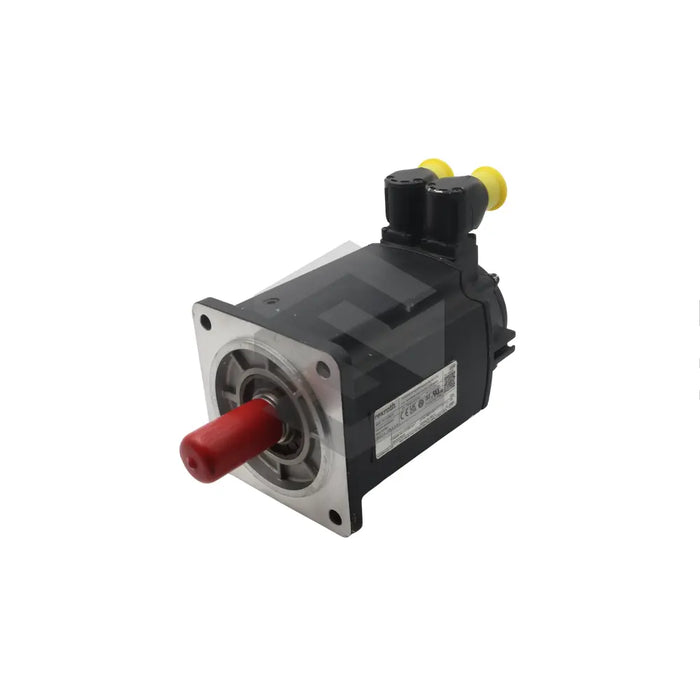

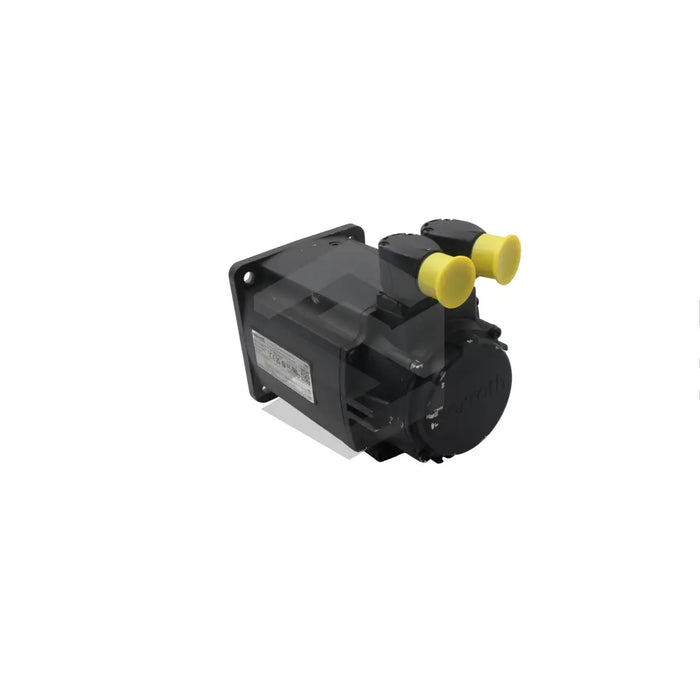

The R911343211 (MSK060B-0600-NN-M3-UG0-NNNN), a product of Bosch Rexroth Indramat, is a synchronous servomotor that integrates a standard smooth plain shaft. This motor facilitates a non-backlash, force-fitted shaft-hub connection with an ultra-quiet operation. The motor bearings and shaft experience both radial and axial forces while functioning, but the servomotor can withstand a maximum permissible axial force of 40N. It houses a multiturn absolute Hiperface capacitive encoder with 16 signal periods and features a standard design. The component's motor bearings have an extended lifespan of 30,000 operating hours, as defined by ISO 281. Due to thermal impacts, there may be a minor shift of 0.6mm at the flange end of the output shaft relative to the motor housing.
The R911343211 (MSK060B-0600-NN-M3-UG0-NNNN) needs to be linked to self-supported drive elements via axially compensating units and has a CE Certification, cUL Recognition, and RoHS compliance. It is important to ensure a 100mm gap from nearby elements on the side for free vertical convection. The motor has an integrated temperature sensor to avoid thermal overload, with its warning and shutdown temperature thresholds preserved in the encoder data memory. If the product is stored for over a year with no use, it should be operated without load for an hour at a speed of around 800-1000rpm. The packaging of the motor is done in high-grade military-style packaging to avoid transit damage.
30 Day Warranty
Technical Specifications
