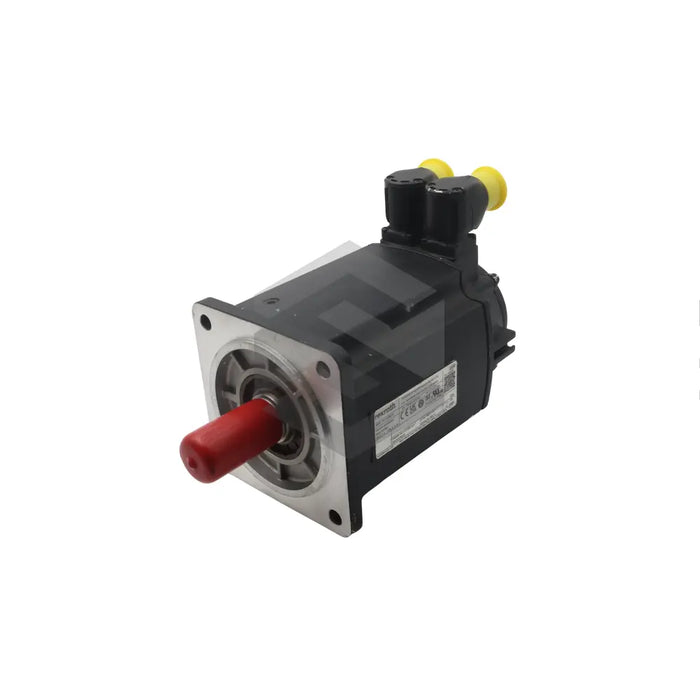

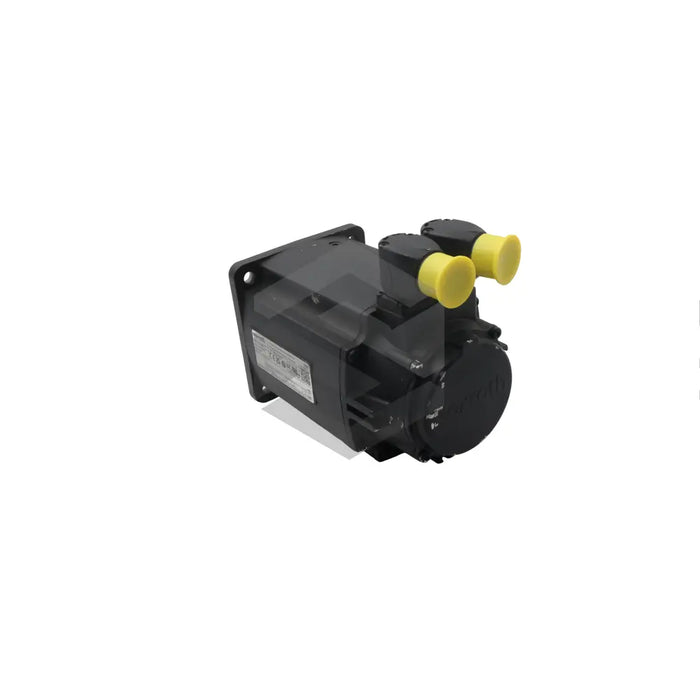

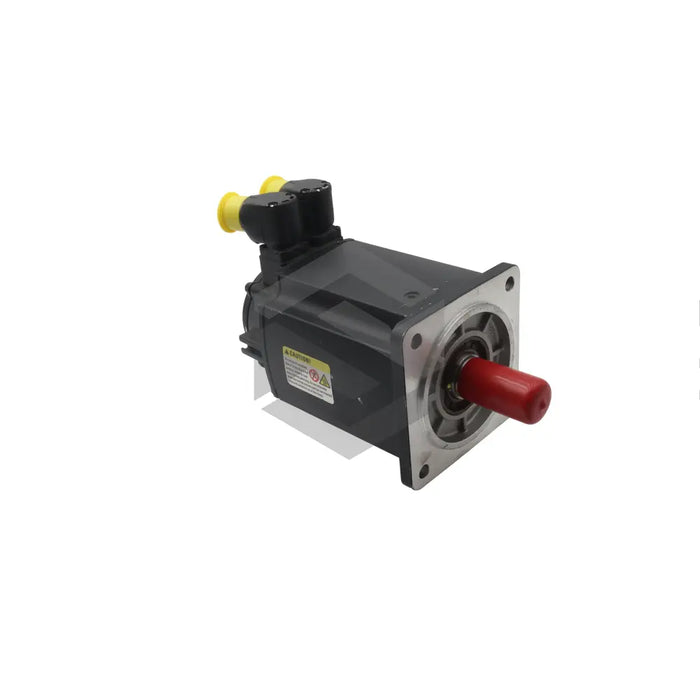

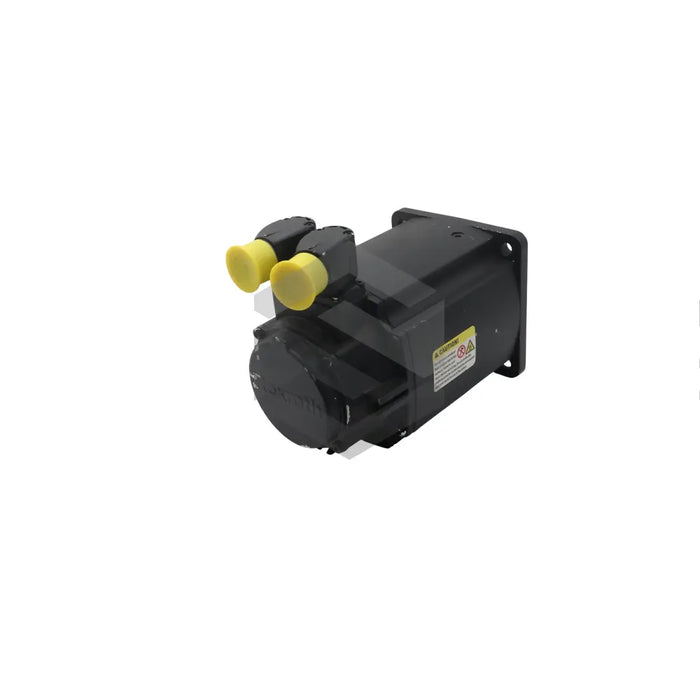

R911343375
The Bosch Rexroth Indramat's R911343375 (MSK060B-0300-NN-M3-UP0-NNNN) is a top-tier part of the IndraDyn S series, asserting its exceptional identity in the realm of durable and accurate synchronous motors. This robust motor is flexibly applicable across various platforms including robotics, packaging, food processing machines, and machine tools, among others. The R911343375 (MSK060B-0300-NN-M3-UP0-NNNN) model is characterized by a 240° rotatable plug, connecting its integrated encoder to a power supply, and a shaft with a keyway, in compliance with DIN 6885-1 standards, and shaft sealing ring, thereby facilitating unhindered torque transmission.
With a maximum torque of 15.0 Nm and a rotational speed capacity of up to 4,800 rpm, this motor boasts of an insulation class F (155) rating as per DIN EN 60034-1, ensuring protection from heat-induced damage. Compatible with operational temperatures from 0 °C to 40 °C, the R911343375 (MSK060B-0300-NN-M3-UP0-NNNN) is built with a self-cooling mechanism. Its encoder hosts a memory storage for saving vital parameters like control loop parameters, motor type name, and motor parameters, thus enabling a swift startup. It delivers a bearing life of an impressive 30,000 operating hours when used between radial and axial loads. The motor housing sports black (RAL 9005) varnish, sturdy against acid and alkaline solutions, water, sewage, and mineral oils. Its IP 65 Ingress Protection rating guarantees a clean and dry operation, free from dust and water jet infiltration.
30 Day Warranty
Technical Specifications
