R911344213

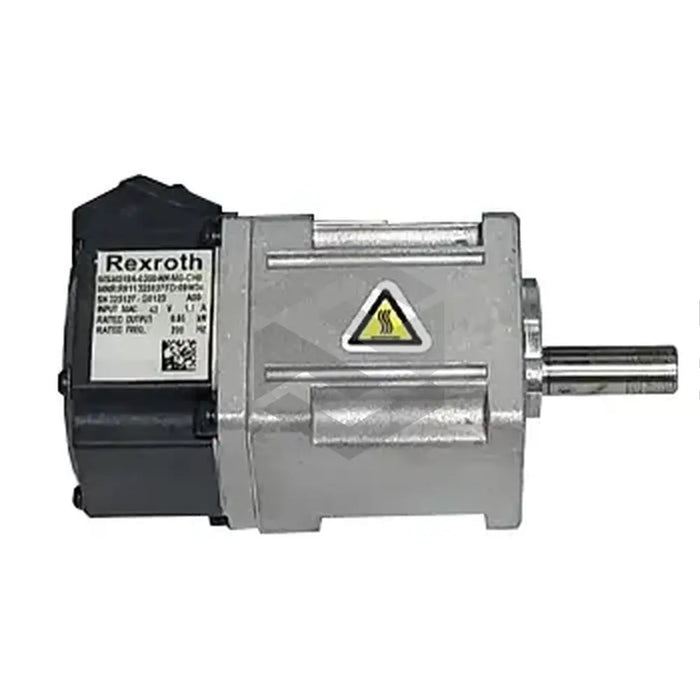

The Bosch Rexroth Indramat R911344213 (MSM031B-0300-NN-M5-MH0) hails from the IndraDyn S MSM series, comprising of maintenance-free synchronous motors. Ranging over five sizes, they provide up to 750 Watts of continuous power. Exhibiting a compact design, precision of optical encoders, dynamic performance, and IP54 protection, the MSM motor is made to operate best at relative air humidity levels of 5-95% and absolute air humidity range of 1-29 g/m3. This particular model puts out 200 Watts of continuous power, 0.64 Nm standstill torque, and max speed of 5000 RPM. Features include an optical multiturn absolute encoder, an M17 circular connector for power supply, and a smooth no-seal shaft; however, it is without a holding brake.
The Bosch R911344213 (MSM031B-0300-NN-M5-MH0) IndraDyn S MSM motor, with 0.7 nanofarad discharge capacity and 4 pole pairs, exhibits a rotor inertia of 0.0000140 kg m2. Designed to accommodate a wire section of 0.75 mm2 for electrical connection, the apparatus weighs approximately 0.83 kilograms. For optimal performance, its ambient operating temperature should fall between 0 and 40 degrees Celsius, while installation altitude should be at the most 1000 meters. Exceeding these limits might undermine the performance and lifespan. The model, classed 130 per EN 60034-1 in terms of thermal attribute, produces less than 70 dB rated sound pressure and follows a natural convention cooling design.
