manufacturer image of R911344500

R911344500

by Bosch Rexroth Indramat
$1,351.94 - $1,351.94
$1,351.94
$1,351.94 - $1,351.94
$1,351.94
In Stock, Ships Today

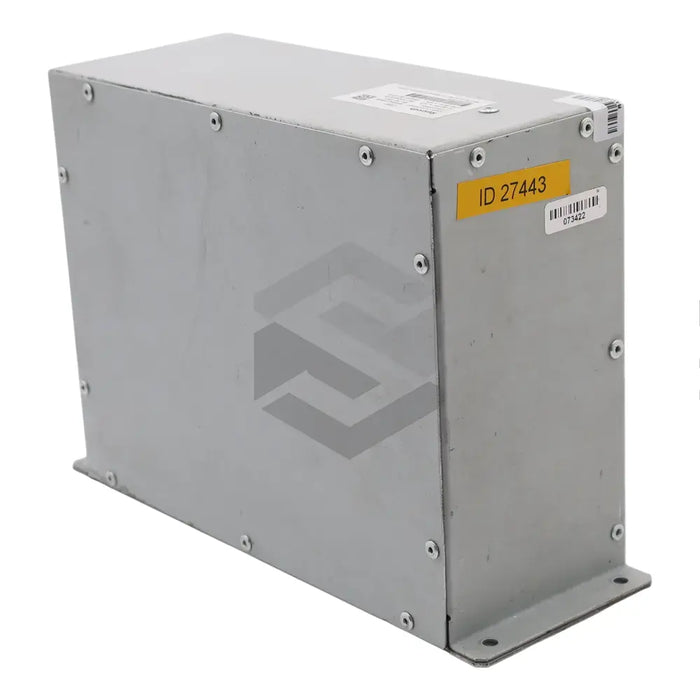

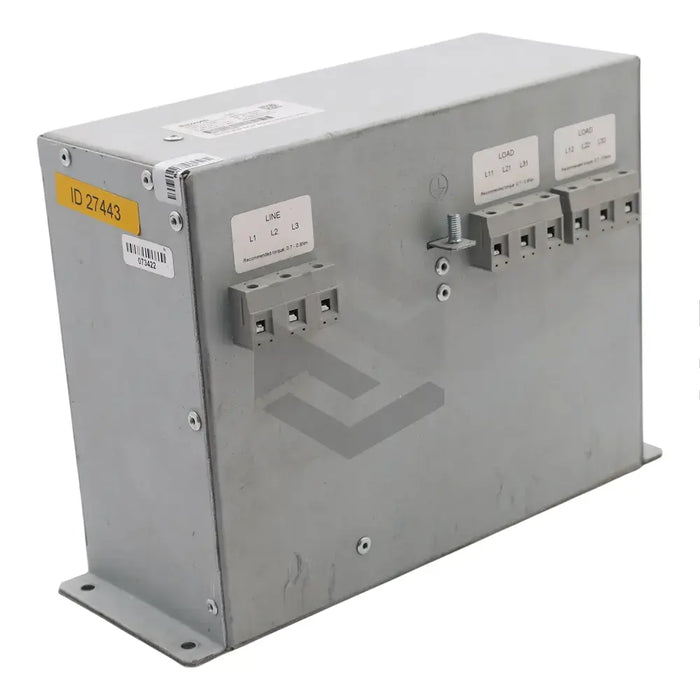

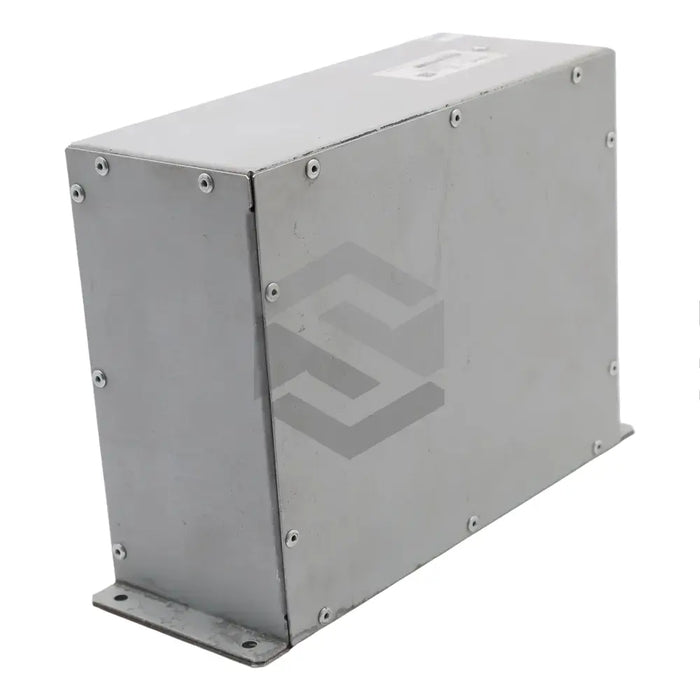

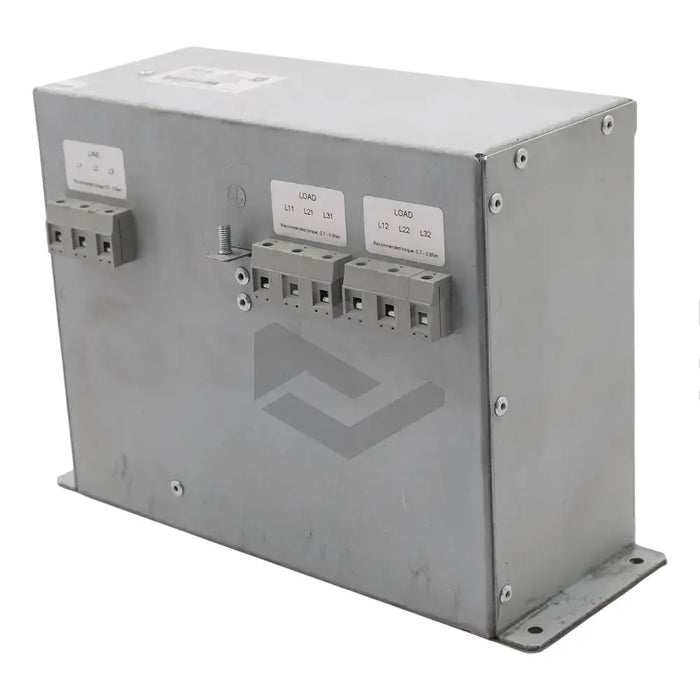

The Bosch Rexroth Indramat R911344500 (KNK03.1A-NR-B0012-P-U226-A4-NNNN) is a mains module primarily designed to operate as a part of the larger Indra Mi drive system. Its key features include an integrated mains filter, a network contactor, and a mains choke, all housed together. Its chief function is to intercept any network interruptions and subsequently deactivate select drives. It runs on a continuous current of 12A, making it fully compatible with the KMV supply module. The device meets the DIN standards of EMC emissivity and falls under the C3 category. This module is designed with an IP 65 protection standard, providing substantial defense against non-corrosive materials and water jet penetration. It also wards off potential damage from oily fluids and emulsions. The mains module possesses an inductance of 2.3 µH per winding. It weighs 20kg and carries approvals from UL and CE. To operate, it requires a three-phase connection ranging from 380 V to 500 V. With a thermal interface and a cold plate attachment, heat dissipation is efficient and fast. Lastly, the compact dimensions of the R911344500 (KNK03.1A-NR-B0012-P-U226-A4-NNNN) allow for easy installation in smaller control cabinets.
30 Day Warranty
Technical Specifications
  • Compatibility: KMV supply module
  • Inductance: 2.3 µH per winding
  • Operating Voltage: 380 V..500 V three-phase connection
  • Approvals: UL, CE
  • Power Dissipation: 175 W at continuous current
