R911344544

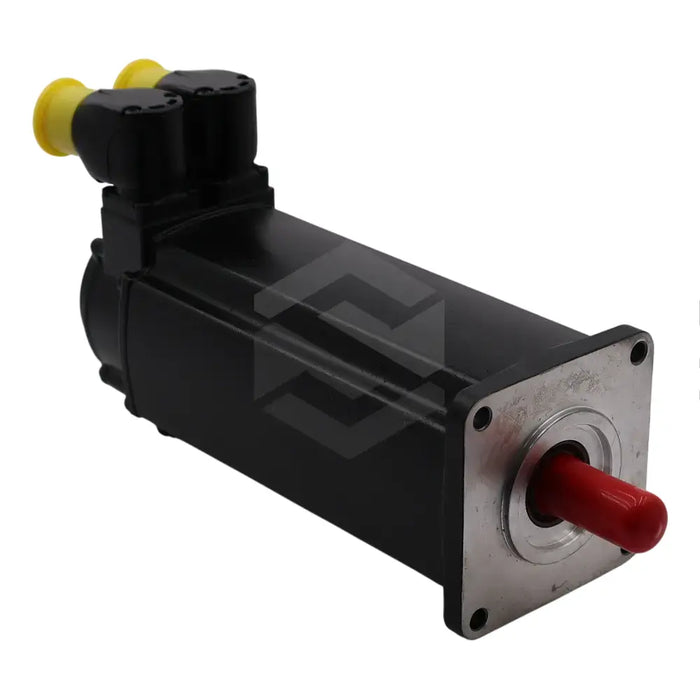

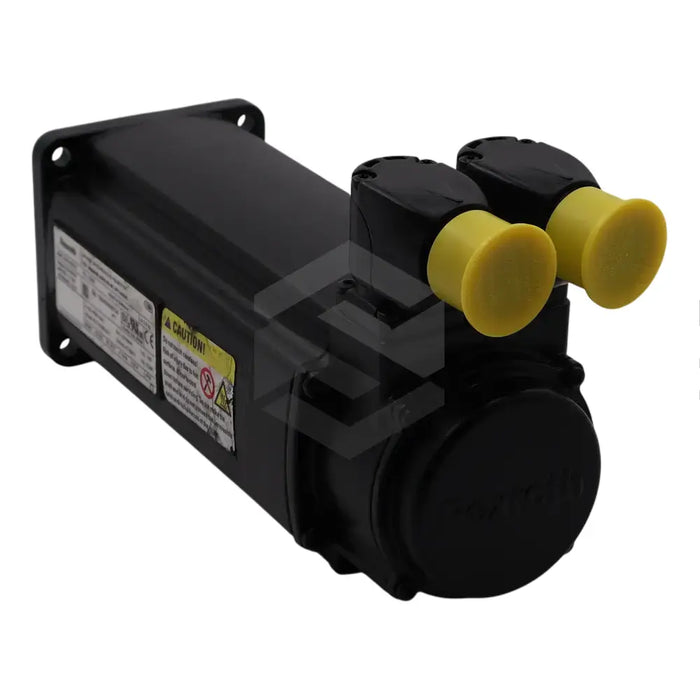

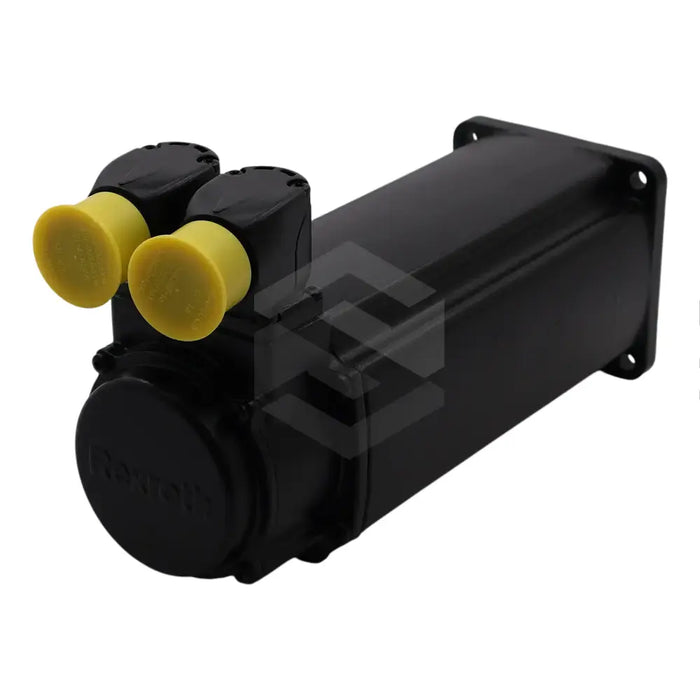

The Bosch Rexroth manufactured R911344544 (MSK040C-0600-NN-M3-UP1-NNNN) is from the MSK range of servo motors, designed for use in the Rexroth IndraDyn S drive system. Known for flexible and highly customizable functionality, this line of servo motors suits a variety of industrial applications. The R911344544 (MSK040C-0600-NN-M3-UP1-NNNN) features a maximum torque of 8.1 Nm, maximum velocity of 7,500 RPM, and a maximum current of 12.4A. Further, it delivers a continuous torque and current of 2.7 Nm and 3.1A at 60K standstill, respectively. Known for its four-pole pairs, this model also incorporates a rotor with a moment of inertia of 0.00014 kgm2.
The R911344544 (MSK040C-0600-NN-M3-UP1-NNNN) is equipped with a multiturn absolute capacitive encoder that uses a Hiperface interface and 16 signal periods, boasting a system accuracy of ±520 angular seconds. The encoder operates at a supply voltage of 7V to 12V. The servomotor integrates a DIN 6885-1 standard shaft with a keyway and sealing ring, complimented with an electrically releasing hold brake of 4 Nm torque. Coated in RAL9005 black varnish, it provides solid protection against diluted acids, lyes, sewage, current mineral oils, and seawater, while also being partially solvents resistant. It carries an IP 65 rating, certifying effective dust-proof and water jet resistance properties.
