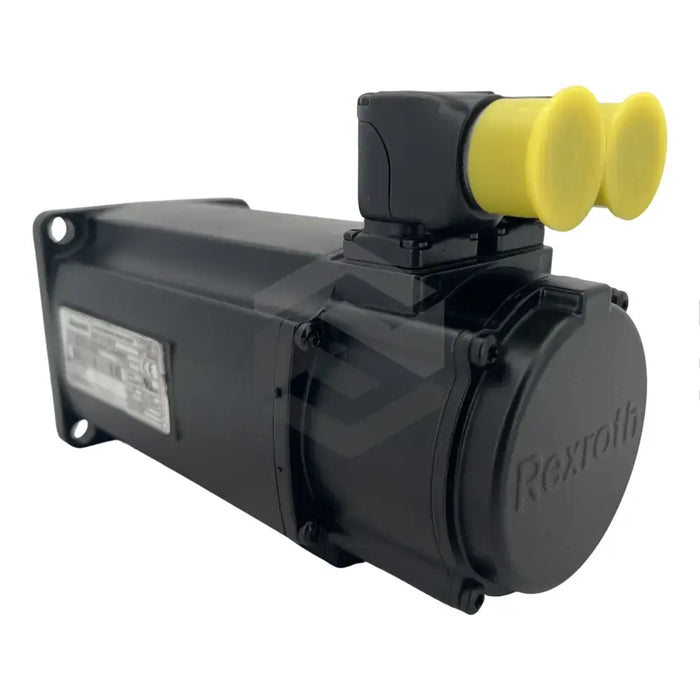

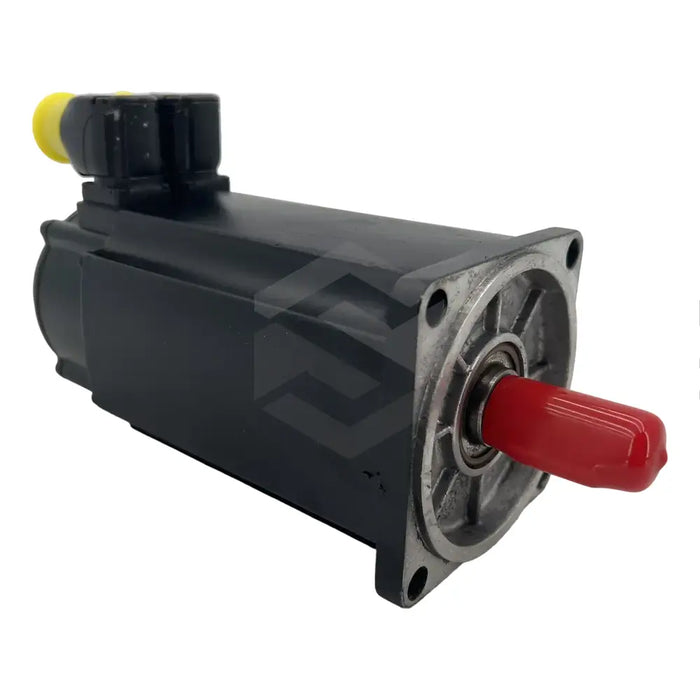

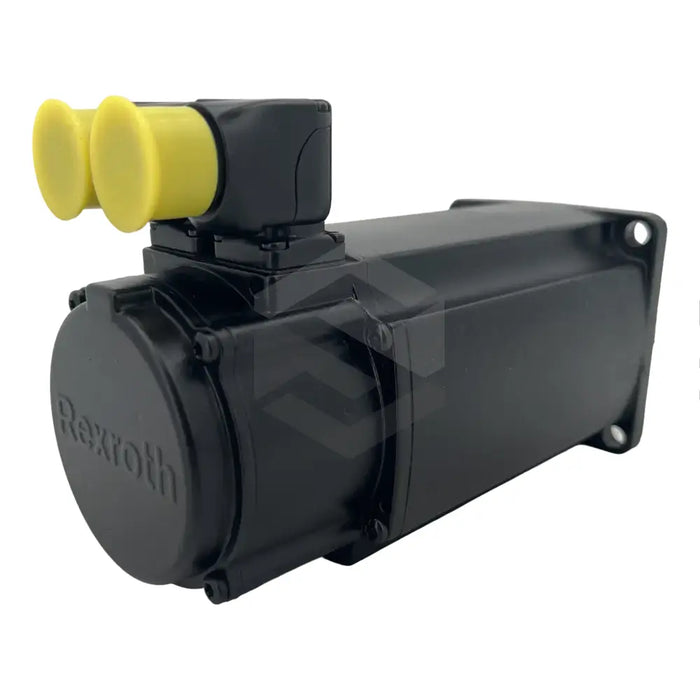

The R911345017 (MSK050C-0450-NN-S3-UP1-NNNN), a synchronous servomotor by Bosch Rexroth Indramat, necessitates appropriate heat dissipation and cool down periods to prevent adverse effects. Prior to any maintenance tasks, ensure the motor has entirely cooled, a process that can take up to 140 minutes. To set up, verify the stability of both mechanical and electrical connections. The plug-in connector, attached to the flange socket, can be rotated to adjust the output direction. The motor, characterized by a length code of C, requires care during the mounting process to avoid jamming or clamping the centering collar.
Storage of this device should be in a dry, dust, and vibration-free space, away from direct sunlight. The attached type plate details essential information including temperature class, voltage constant, maximum speed, and housing protection degree. Incorrectly performed high-voltage tests can cause damage, and the motor flange holder should be inspected for burs prior to mounting. To protect against thermal overload and irreversible damage, the device integrates a temperature sensor, shutting down if the surface temperature reaches 150°C. Allow for a minimum clearance of 100mm on all sides from other components. The holding brake should be examined before commissioning. Guidelines require operation only by trained individuals, in non-explosive environments. The output shaft flange end may demonstrate thermal effects with approximately 0.6mm movement relative to the motor housing. The device comes with a one-year backup support guarantee and is shipped via a reputable logistics network.
