R911345336
Original price
$7,046.11
-
Original price
$7,046.11
Original price
$7,046.11
$7,046.11
-
$7,046.11
Current price
$7,046.11

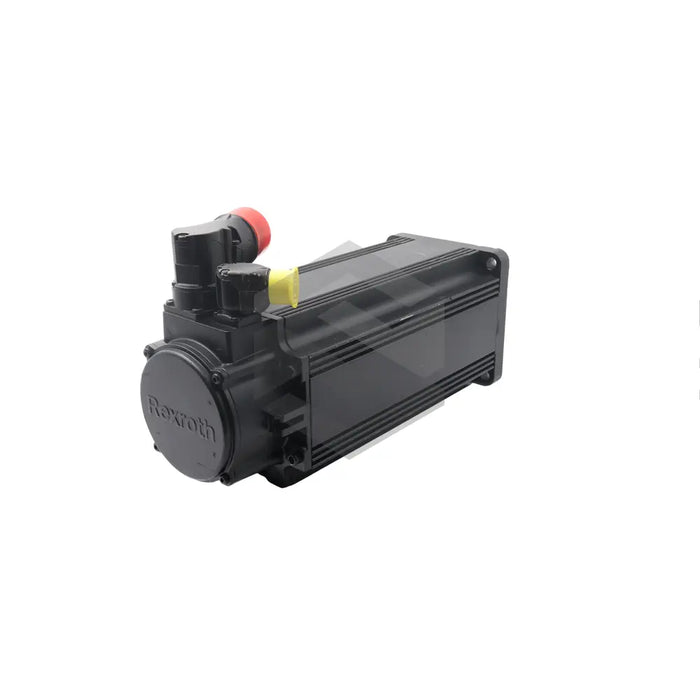

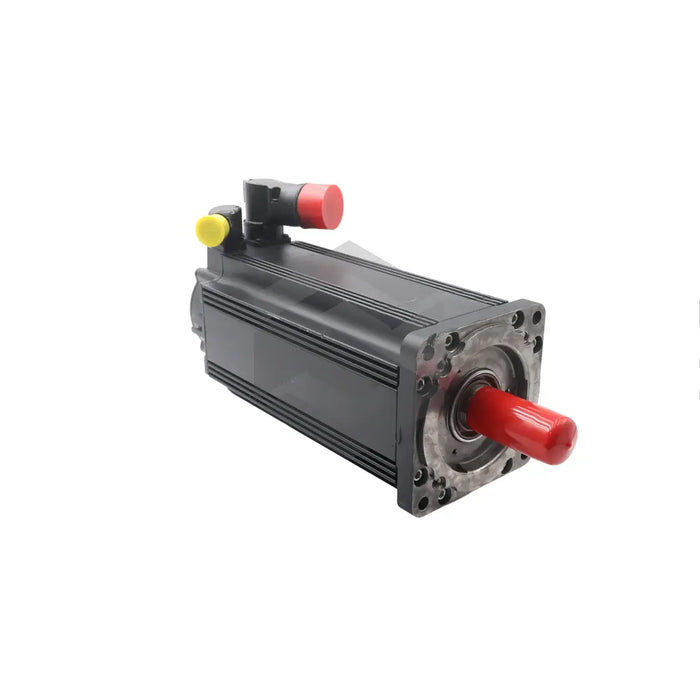

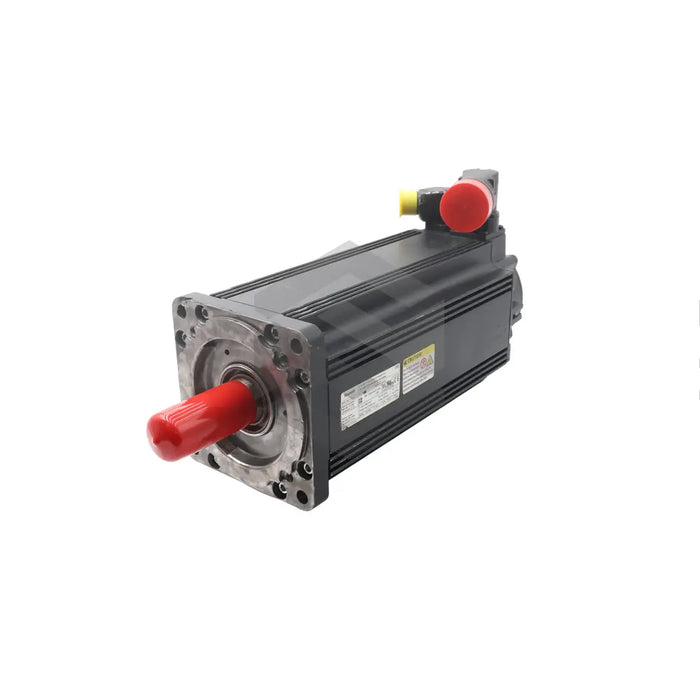

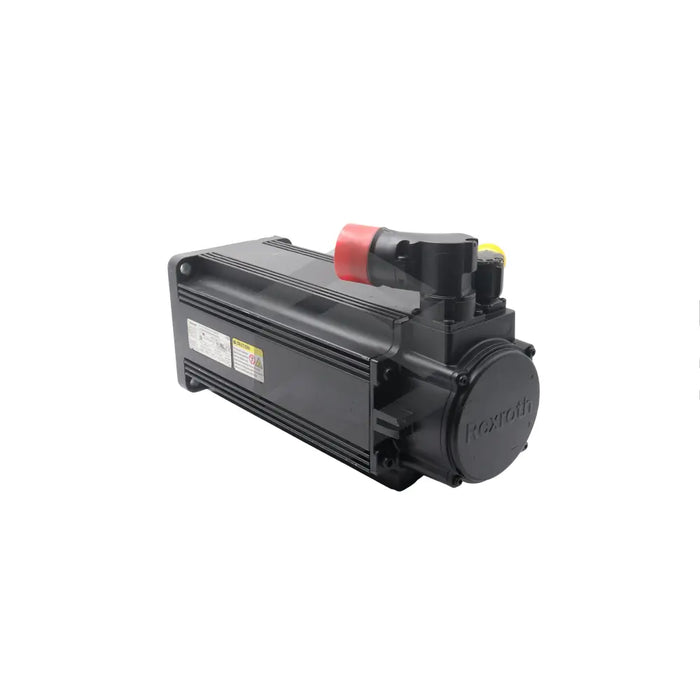

The R911345336 (MSK071D-0300-NN-S3-UG0-NNNN), produced by Bosch Rexroth Indramat, is a trusted name in mechanical industry solutions, providing various products ranging from energy-dynamic synchronous motors to state-of-the-art drive controllers.
The R911345336 (MSK071D-0300-NN-S3-UG0-NNNN) model is a synchronous motor, with an inertia moment of 0.00255 kgm2 and an inbuilt temperature monitoring sensor for controlling overheating. It also possesses an optical encoder for precise location tracking. With unique capabilities for providing continuous and peak torque values (10.7 Nm and 66 Nm, respectively), the motor is ideal for applications requiring high torque levels and rapid rotations per minute. The motor operates optimally within a 0 to 40-degree Celsius range and is part of the widely used IndraDyn S servomotor series. The R911345336 (MSK071D-0300-NN-S3-UG0-NNNN) model boasts a broad power bandwidth, weighs 18 kilograms, and accomplishes a top speed of 3800 rotations per minute. The motor's thermal time constant is 54 minutes, and it employs natural convection for thermal management. The product incorporates a plain shaft possessing a sealing ring to provide a complete seal, and sports a rotatable plug with a 240 degree turning range. It's IP65 certified, bearing an insulation category of 155-degree and has voltage and torque constants of 134 V/1000min-1 and 2.12 Nm/A, respectively, at a 20 degrees Celsius. The winding inductivity of the motor for four pole pairs is 10,700mH. All these features ensure the motor's reliable integration into your industrial tasks.
30 Day Warranty
Technical Specifications
