R911345666
Original price
$3,145.67
-
Original price
$3,145.67
Original price
$3,145.67
$3,145.67
-
$3,145.67
Current price
$3,145.67

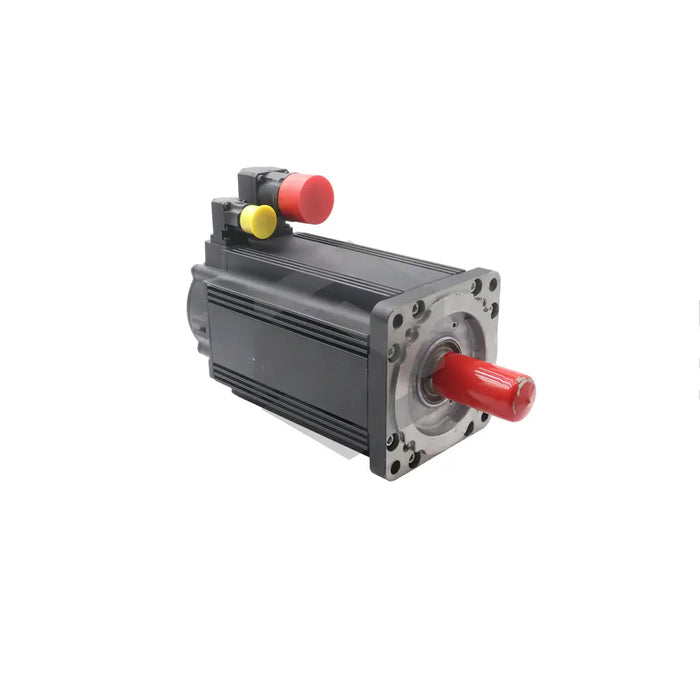

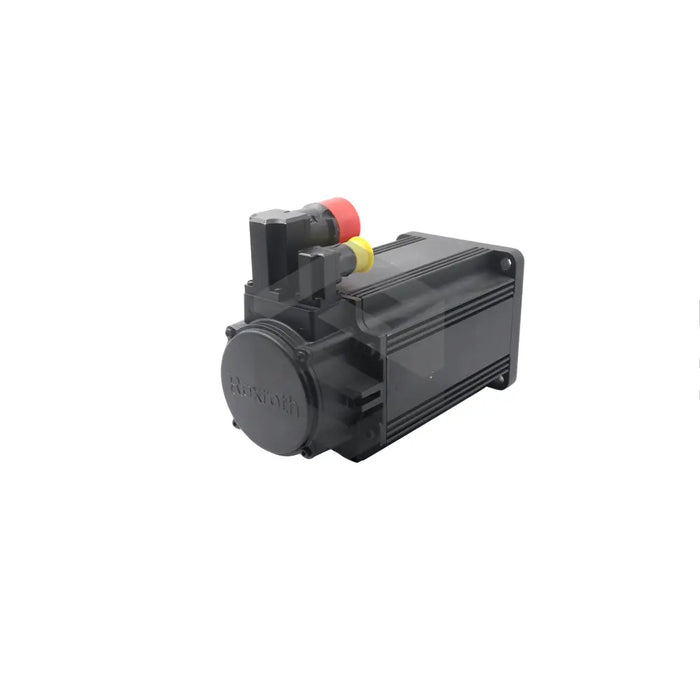

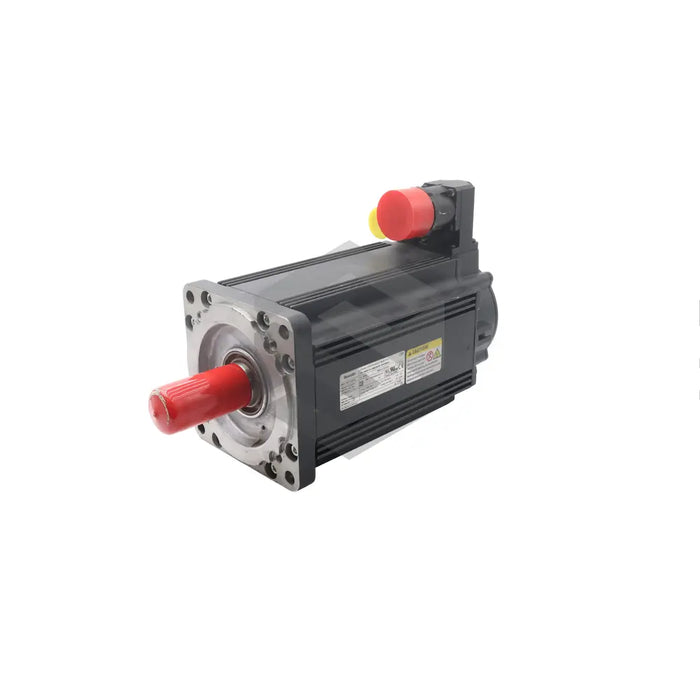

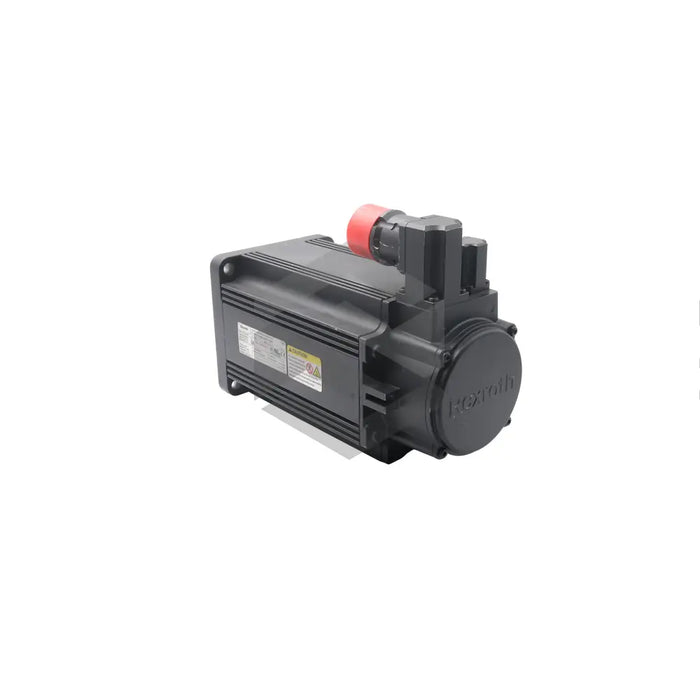

Produced by renowned engineering products manufacturer Bosch Rexroth Indramat, the R911345666 (MSK071C-0300-NN-S3-UG0-NNNN) synchronous motor is a paragon in its field, known for its exceptional quality and service. Rated at 100k, the motor delivers a constant torque of 14 Nm at an average current draw of 8.5 A. The motor has both absolute and incremental position detection facilitated by an optical encoder. The motor also features a torque constant of 1.80 Nm/A and a moment of inertia of 0.00173 kgm2. Cooling is achieved through standard convection and it has a thermal time constant of 15 minutes. Operating at a standstill temperature of 60 K, it delivers a continuous torque of 12 Nm, with a current draw of 7.3 A.
The R911345666 (MSK071C-0300-NN-S3-UG0-NNNN) synchronous motor is housed in resilience, with an IP65 protection grade and a class 155 insulation rating. Integrating the MSK071C synchronous motor requires expertise, with non-negotiable adherence to the user manual instructions. Implementation of Rexroth connection cables is highly recommended for optimal functioning. Key technical specifications include a winding resistance and inductance of 1.60 ohms and 10.900 mH respectively. Phase-to-phase instances showcase the robustness of the motor, which proves to be invaluable in various applications such as packaging machines, machine tools, food processing equipment and more. The model has a weight of 13.9 kg and is fitted with a plain output shaft containing a sealing ring aiding in overpressure management, preventing the inadvertent ingress of fluids into the motor housing. Rigorous testing protocols ensure its immaculate functionality at the point of delivery.
30 Day Warranty
Technical Specifications
