R911346064

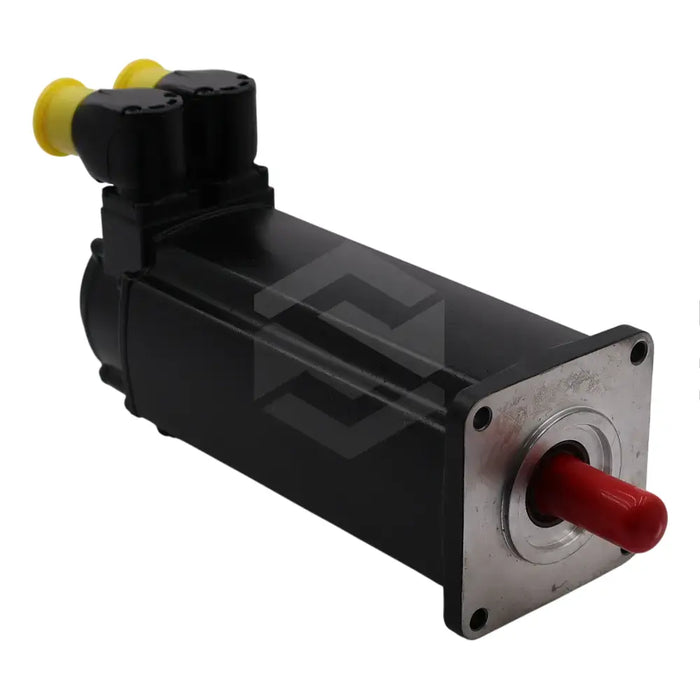

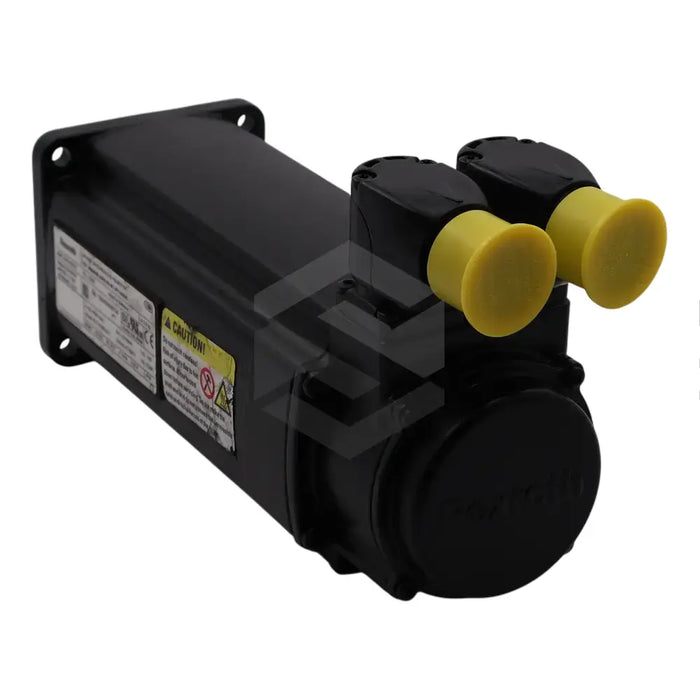

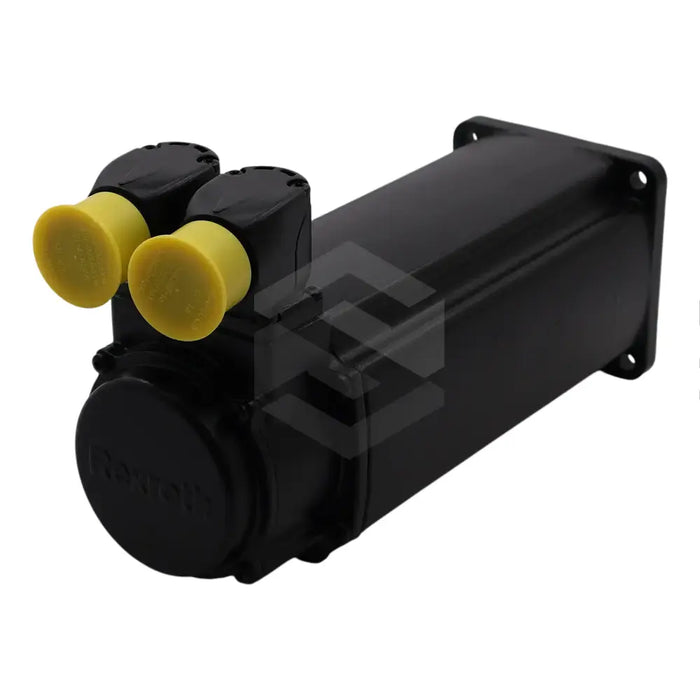

The R911346064 (MSK040C-0600-NN-S3-UP1-NNNN) servo motor, a product of Bosch Rexroth Indramat, belongs to the MSK series and has a motor frame size of 040 and frame length C. The motor uses a 0600 winding and comes with a capacitive single-turn encoder that supports 16 signal periods and Hiperface technology. Operating at an ambient temperature of 0 to 40 degrees Celsius, this convection-cooled motor can achieve a maximum speed of 7500 RPM with a sound pressure level below 75 dB. The IP65 rated motor housing safeguards against dust and low-pressure water jets from any direction, and the connectors can be rotated up to 240 degrees.
This motor's shaft is equipped with a keyway as well as a protective sealing ring to prevent bearing contamination, although regular replacement is necessary due to wear. An included holding brake, with a torque rating of 4 Nm, operates at 24 Volts DC, requires 0.5 Amps current and can connect and disconnect within 25 milliseconds and 35 milliseconds respectively. Note that the motor's performance will deviate from the recorded specifications beyond an install altitude of 0 to 1000 meters and an ambient temperature of 0 to 40 degrees Celsius. Performance falls to 80% at 55 degrees Celsius and decreases to 65% at an altitude of 3000 meters.
