R911346974

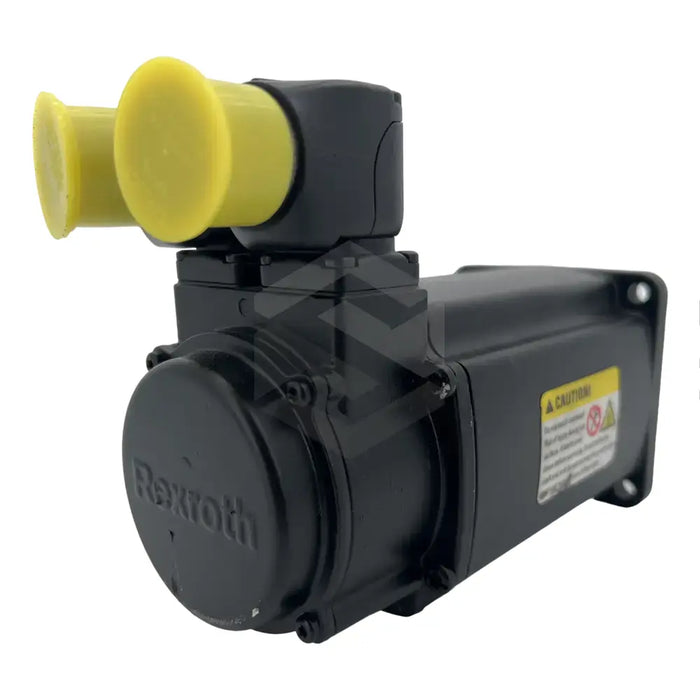

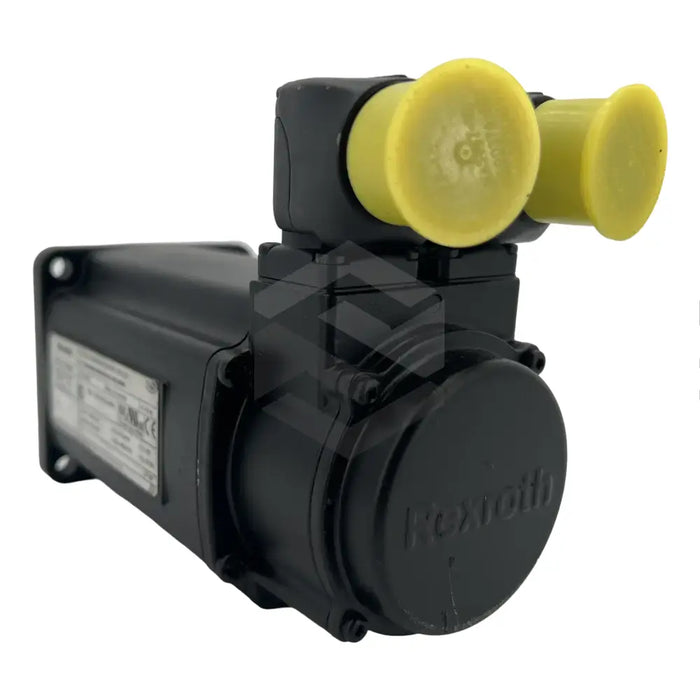

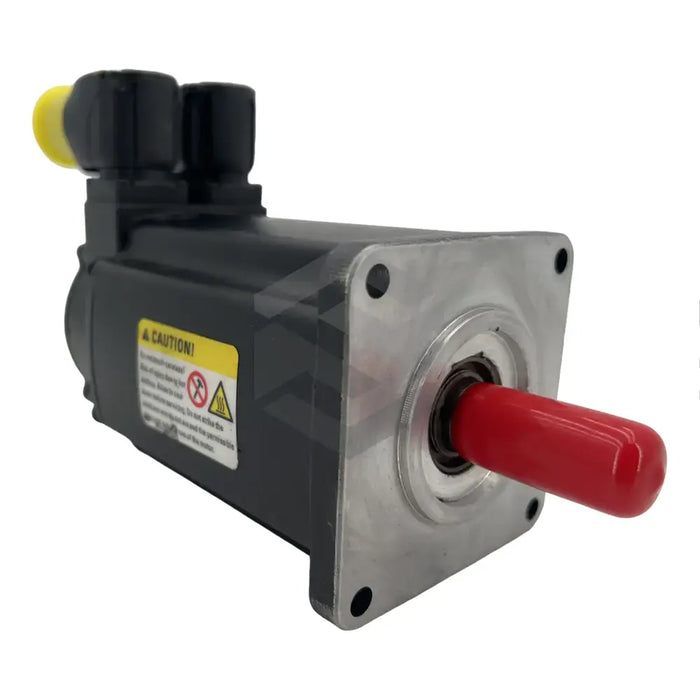

The R911346974 (MSK040B-0600-NN-S2-UP1-NNNN) is a synchronous servomotor designed by Bosch Rexroth Indramat. It's widely used in diverse applications such as robotics, metal-forming machines, and food or paper processing machines. It permits the connection of additional sensors and actuators for better control and monitoring. It is vital to program the drive controller prior to startup for proper function in accordance with application requirements. This motor has a maximum velocity of 7500 RPM, weighs 2.8 kilograms and adheres to the IP65 protection class standard.
The IP65 certification attests to the dustproof nature of the motor housing and its resilience against water jets from any direction. The motor harnesses natural convection for cooling and optimal operation is between 0 and 40 degrees Celsius. According to EN 60034-1, its thermal class is 155. The motor generates a maximum sound pressure level of 75 dB during operation. Feedback on shaft speed and position is provided by an in-built single-turn optical encoder with 2048 signal periods. The R911346974 (MSK040B-0600-NN-S2-UP1-NNNN) motor features a power/feedback connector that can be rotated 240 degrees, a DIN 6885-1 standard rotor shaft with a keyway, a sealing ring, and a 4 Nm holding-torque brake. Users are encouraged to read and implement safety instructions from the product manual for responsible operation and maintenance.
