R911347168
The product highlighted is R911347168 (MSK070D-0150-NN-S3-UG0-NNNN), manufactured by Bosch Rexroth Indramat, who takes pride in selecting skilled engineers dedicated to developing top-tier integrated systems and equipment like synchronous motors, drive controllers, spindle motors, and inverter modules.

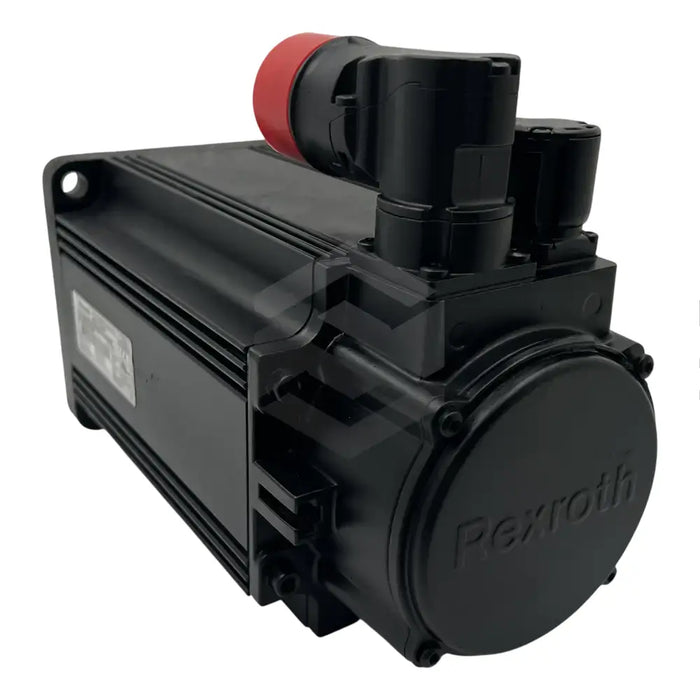

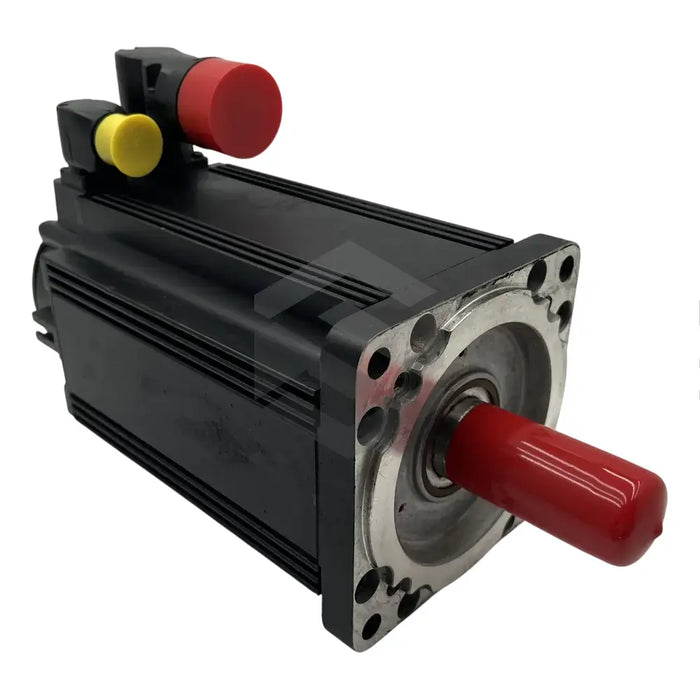

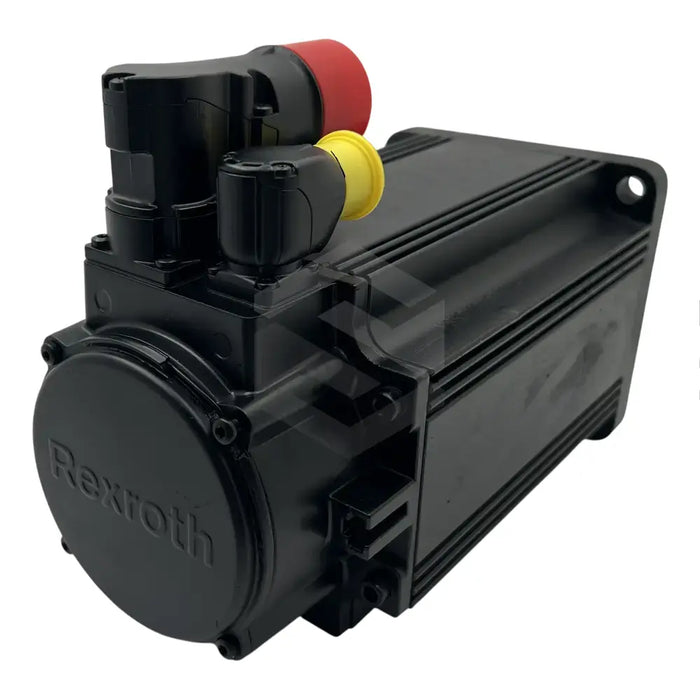

The R911347168 (MSK070D-0150-NN-S3-UG0-NNNN) model is a MSK070D synchronous motor, weighing 14 kg and generating 52.5 Nm of torque. The motor features a plain output shaft with a sealing ring for enhanced shaft protection and sustains a maximal current consumption of 24.8 A. It operates at a maximum rotational speed of 2700 RPM and has an inertia moment of 0.00375 kgm2. Additional features include an optical encoder, a 240-degree rotating plug, and a voltage constant of 210.0 V/min-1. The motor provides a constant torque of 26.3 Nm at standstill, using a continuous current of 9.3 A and exhibits a torque constant of 3.10 Nm/A with 3.20 ohms winding resistance. The product is designed to be operated with its specified accessories and complies with IP 65 certification for protection, with a thermal class of 155. It can be safely moved within the temperature range of -20 to +80 degrees Celsius.
R911347168 (MSK070D-0150-NN-S3-UG0-NNNN) possesses six polar pairs and a thermal time constant of 23 minutes for natural cool-down. It should operate within a temperature range of 0 to +40 degrees Celsius due to potentially decreased efficiency at high oscillations. Available at Servo Supplier, this reliable, high-performing motor can be globally shipped on demand.
30 Day Warranty
