R911373480

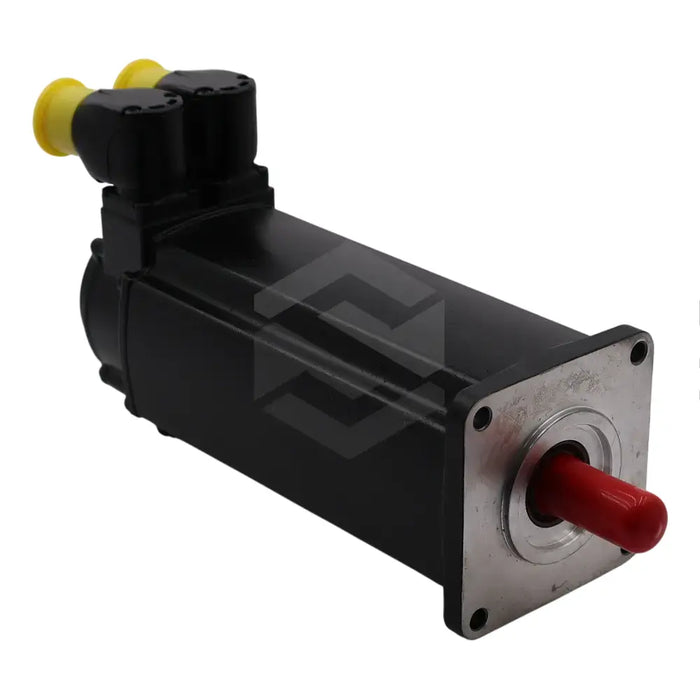

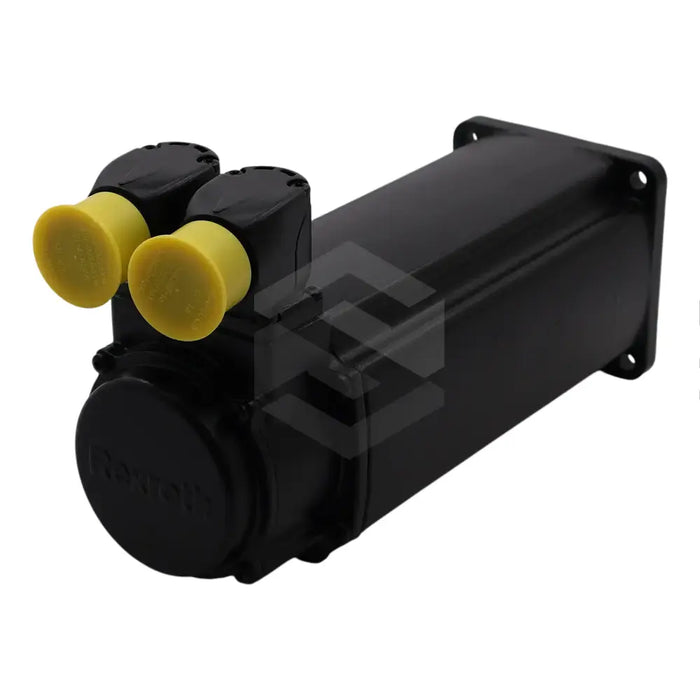

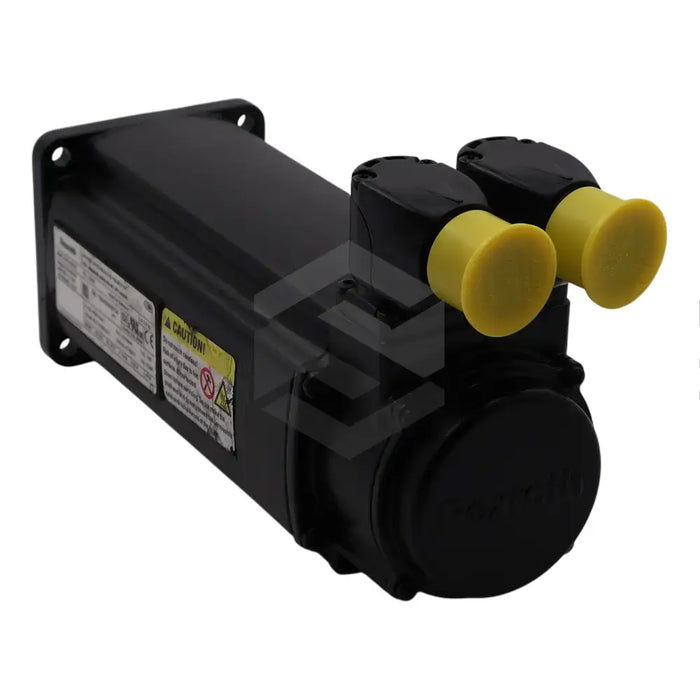

The Bosch Rexroth Indramat R911373480 (MSK040C-0600-NN-S3-UP0-NNNN) synchronous servomotor is specifically manufactured for use with manufacturer’s drive controllers, and should not be modified or operated if defective. Ensuring protection from corrosive materials such as salt mist, cutting oils, lubricants or coolant, it is not intended for subaqueous operations. The motor’s core is an encoder with system accuracy of +/-520 angular seconds. Furthermore, the product is designed with a cylindrical shaft end and a DS M5 centering hole, all encased within a B5 frame size.
The vibrational severity grade is maintained at Level A in consistency with EN 60034-14 standards. The motor does not come with a holding brake, but does feature a keyway shaft and a shaft sealing ring that adheres to DIN 6885-1 specifications. The concern of heat dissipation through the flange is mitigated when a transmission is attached. For the operational conditions, permitted installation elevation is up to 1,000m above sea level, relative humidity ranges between 5% and 95%, and highest temperature fluctuation rate is 0.5°C/min. The product can be shipped globally, ensuring access to our quality device, irrespective of your geographical location.
